Removal And Installation: Removal

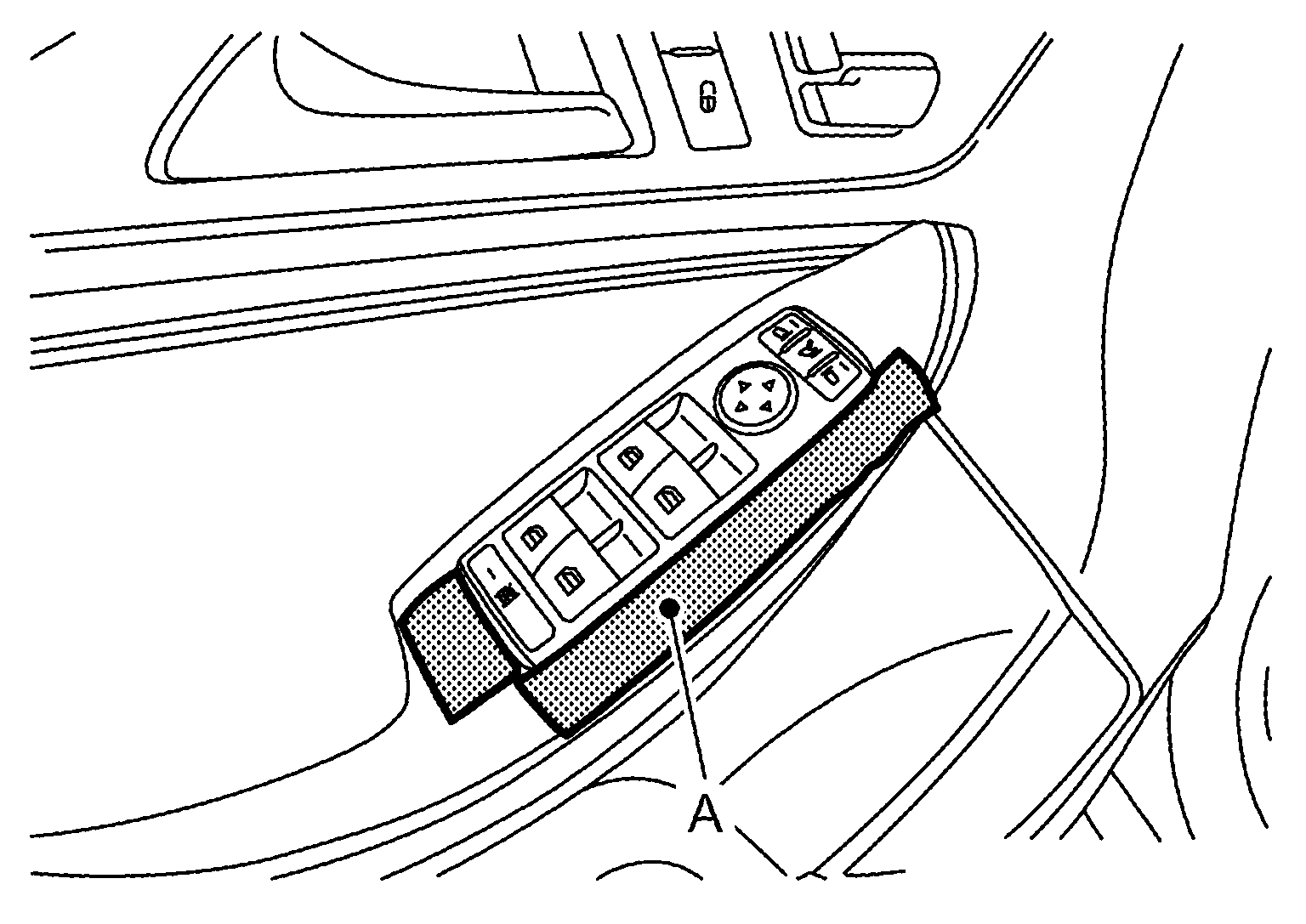

- Apply protective tape (A) on the front door grip to protect from damage.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

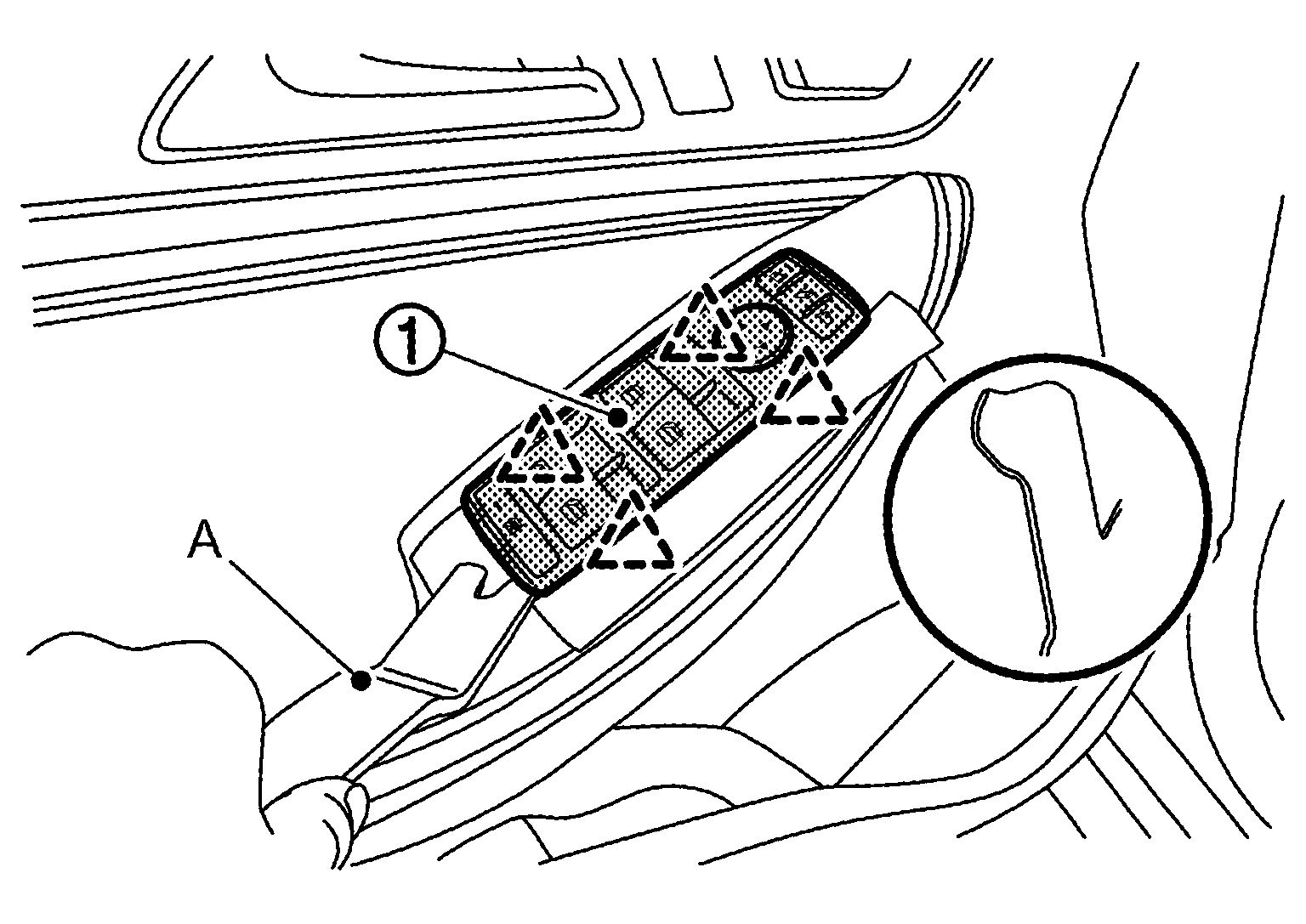

- Disengage power window main switch fixing pawls using removal tool (A), and than remove power window main switch
from door handle.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 |
: Pawl |

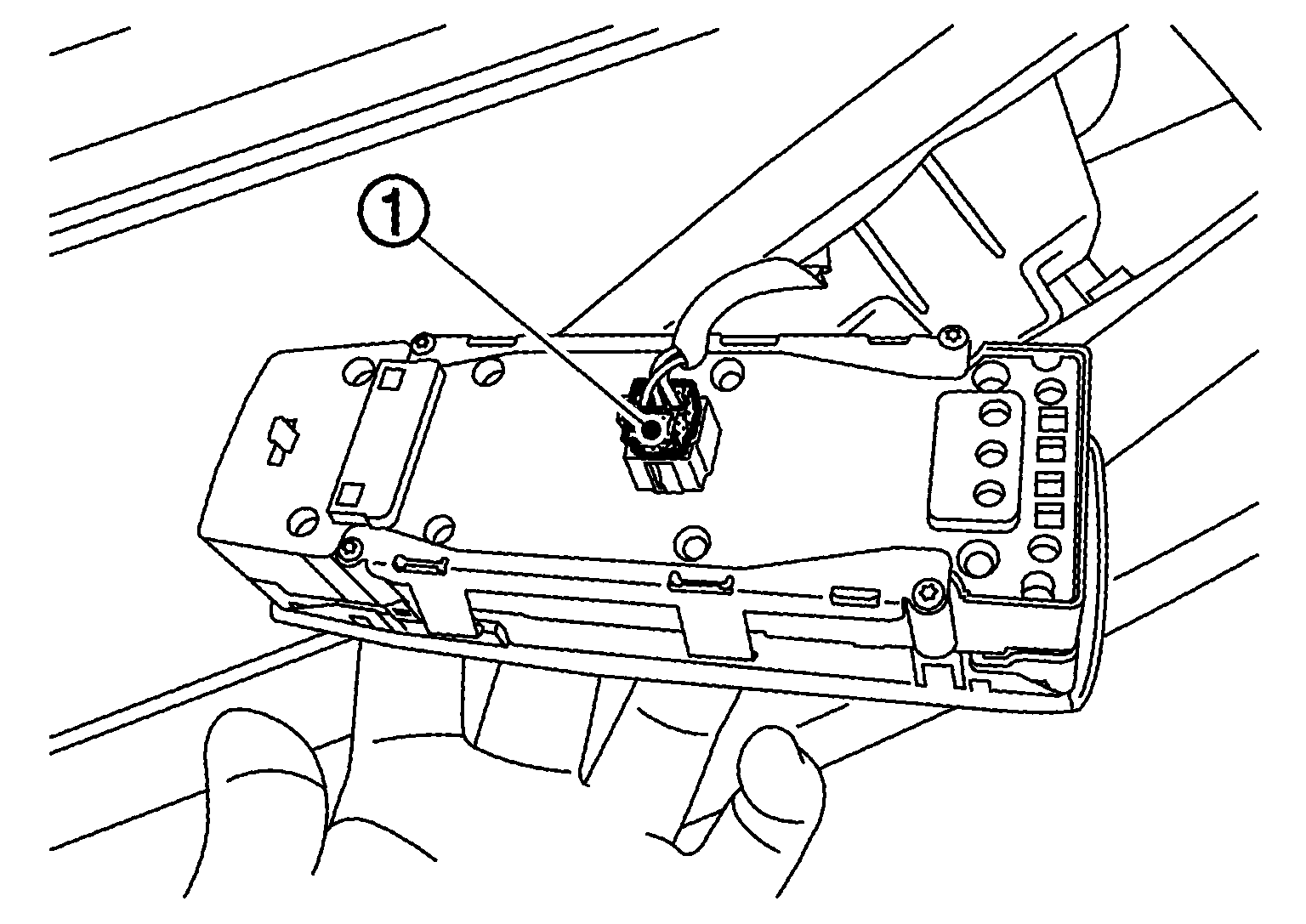

- Disconnect power window main switch connector
from power window main switch.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
