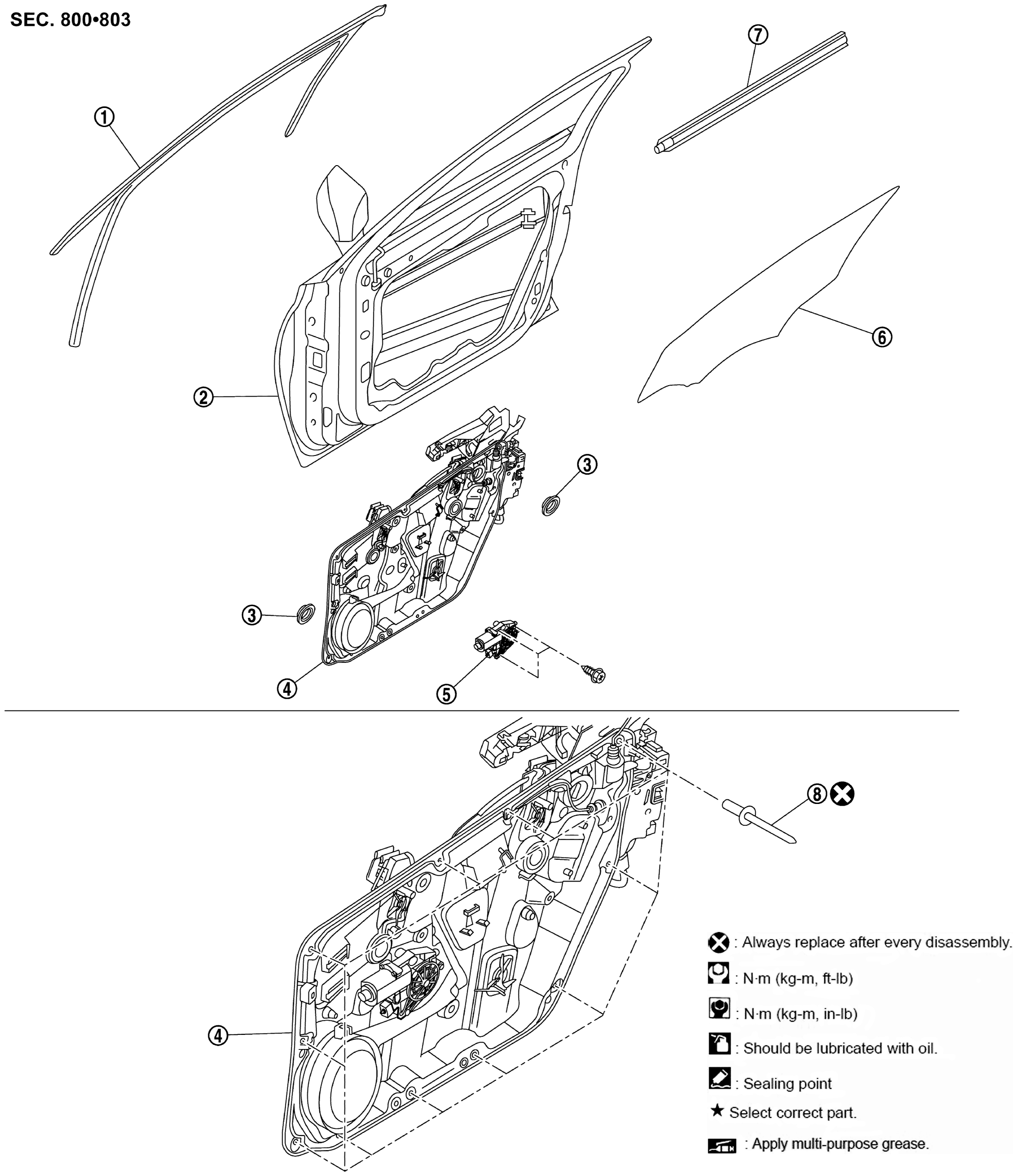

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Front door glass run
Front door panel
Seal cover
Front door module assembly*
Front door power window motor
Front door glass
Front door inside seal
Rivet
: Always replace after every disassembly.
*
: Front door regulator is included in front door module.
