Circuit Diagram

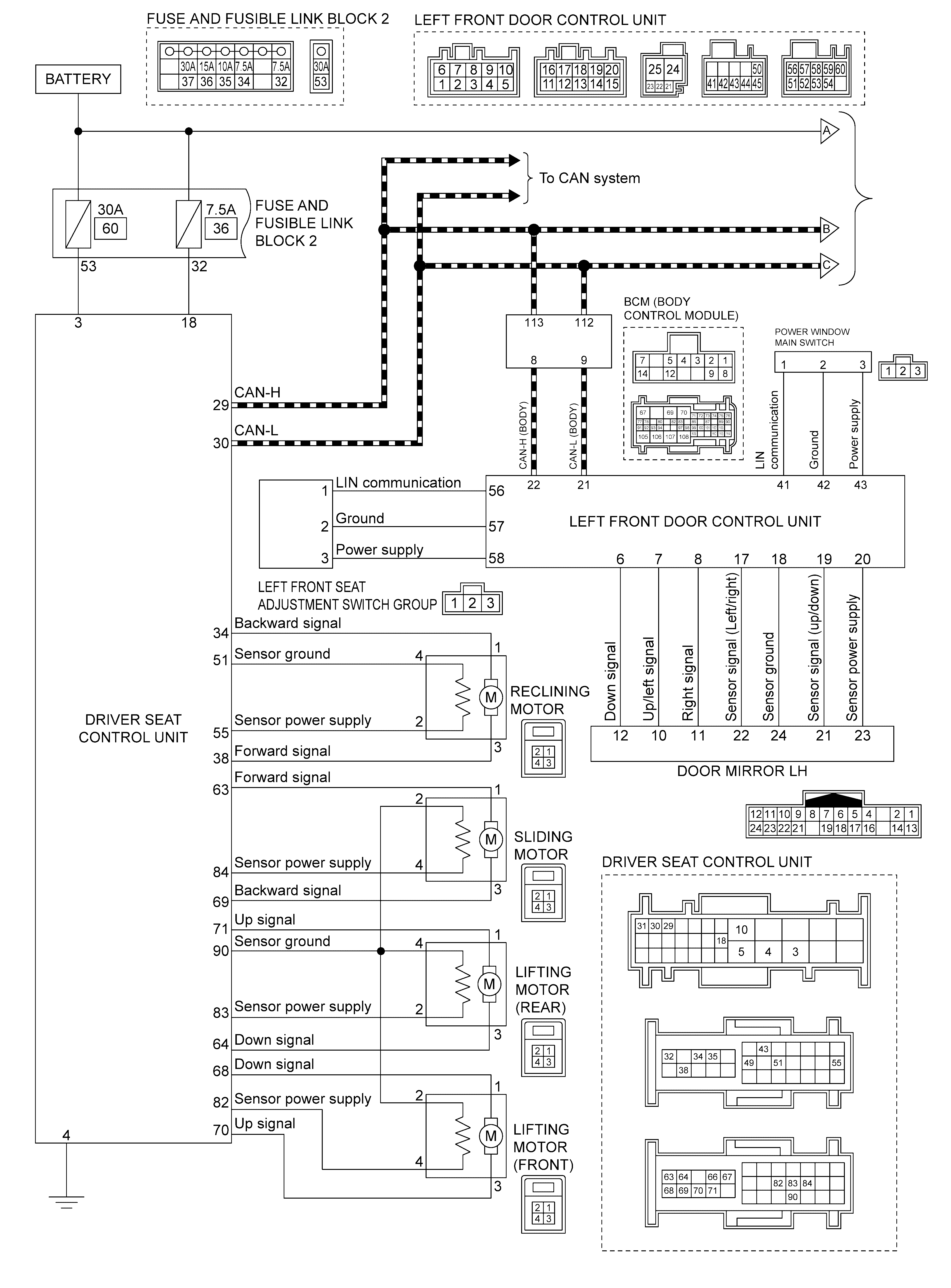

GNSJMJIB2039GB-039

Courtesy of NISSAN NORTH AMERICA, INC.

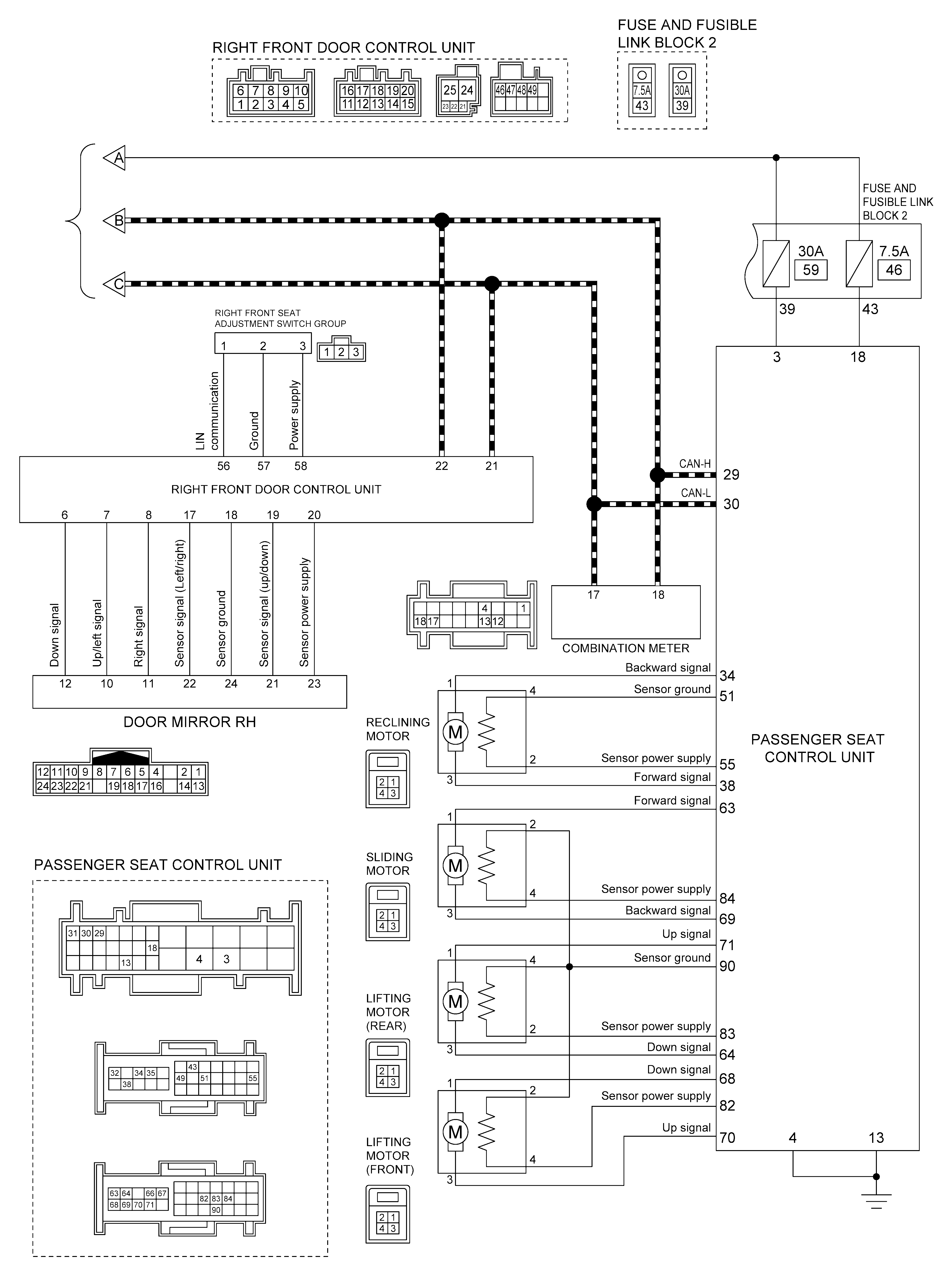

GNSJMJIB2040GB-040

Courtesy of NISSAN NORTH AMERICA, INC.
