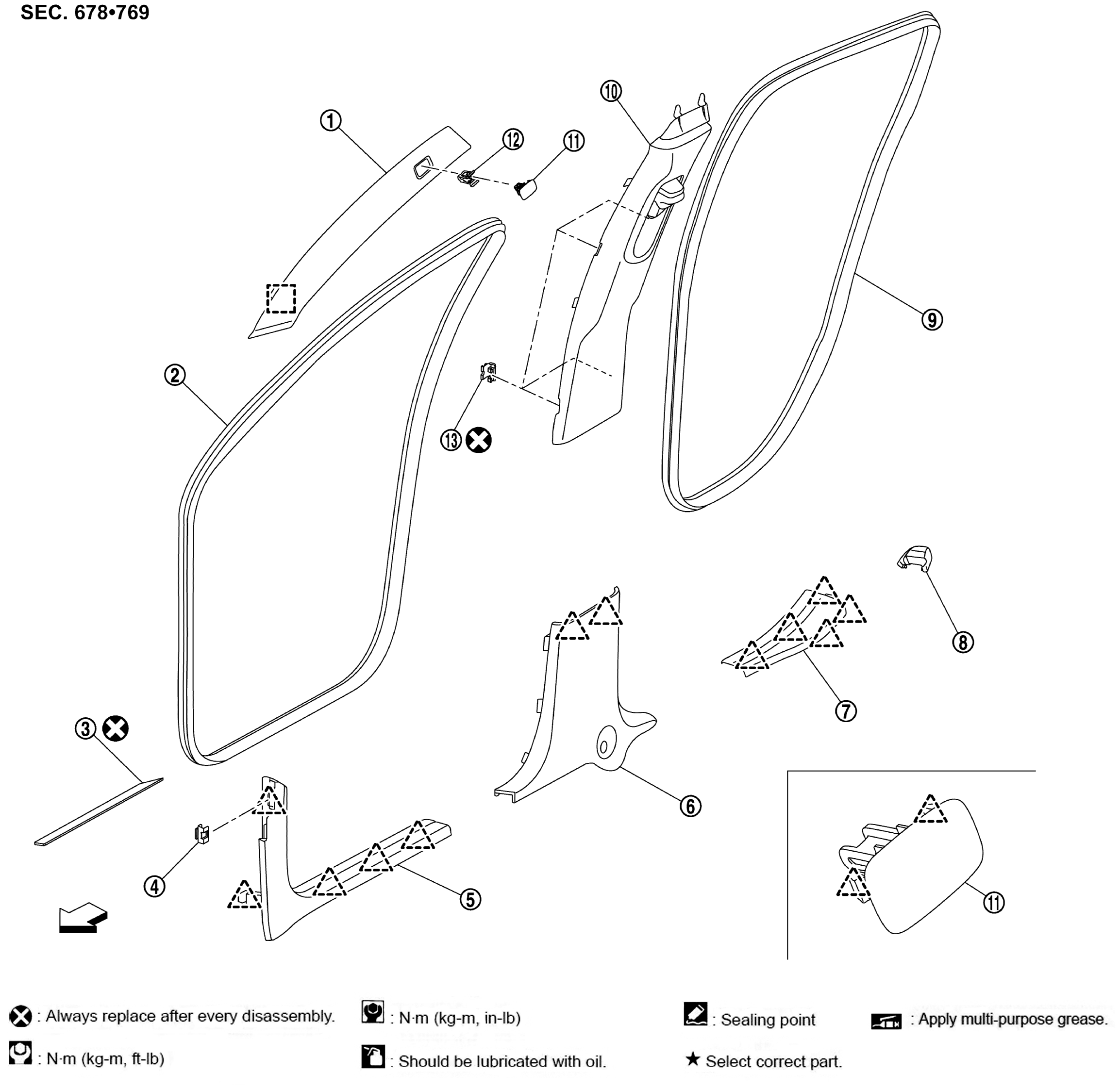

Exploded View With Torque Specifications
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 |
Front pillar garnish |
 |
Front body side welt |
 |
Kicking plate outer |
 |
Metal clip |
 |
Front kicking plate inner |
 |
Center pillar lower garnish |
 |
Rear kicking plate inner |
 |
Seat belt cover |
 |
Rear body side welt |
 |
Center pillar upper garnish |
 |
Cap |
 |
Metal clip |
 |
Metal clip |
|
|
|
|
 |
: Pawl |
 |
: Metal clip |
 |
: Vehicle front |
 |
: Always replace after every disassembly. |
