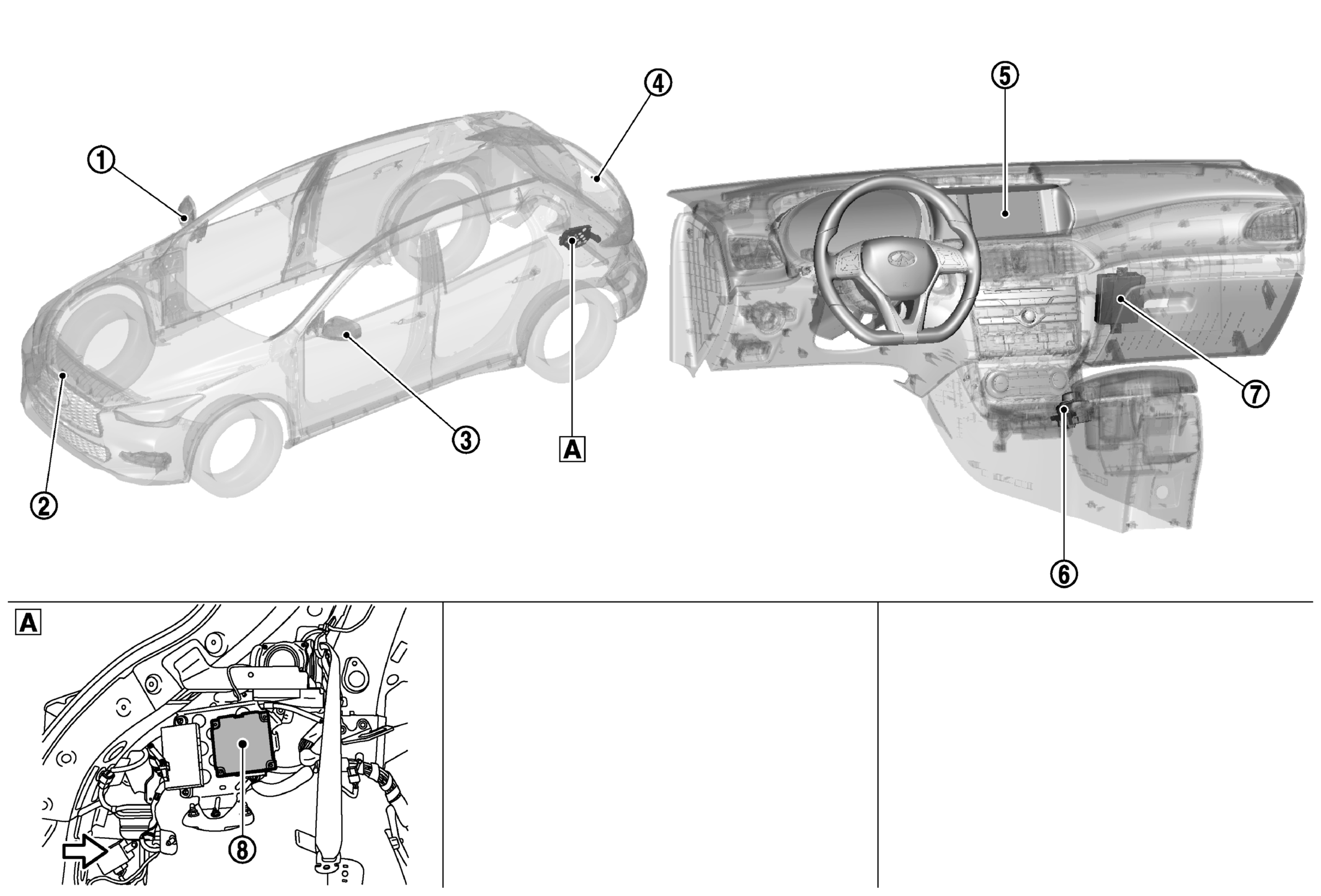

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Luggage floor LH side

No.	Component	Function
	Side camera RH	Refer to SIDE CAMERA .
	Front camera	Refer to FRONT CAMERA .
	Side camera LH	Refer to SIDE CAMERA .
	Rear camera	Refer to REAR CAMERA .
	Display control unit	Camera image signal that is received from around view monitor control unit is displayed in the display. Transmits the camera switch signal to the around view monitor control unit.
	Multifunction switch	Transmits the camera switch signal to the display control unit.
	CAN gateway	Transmits the CAN communication signal to the around view monitor control unit. CAN gateway receives each signal via CAN communication. And it converts the signal to Digital/PWM and outputs it to around view monitor control unit. Refer to COMPONENT LOCATION for detailed installation location.
	Around view monitor control unit	Refer to AROUND VIEW MONITOR CONTROL UNIT .
