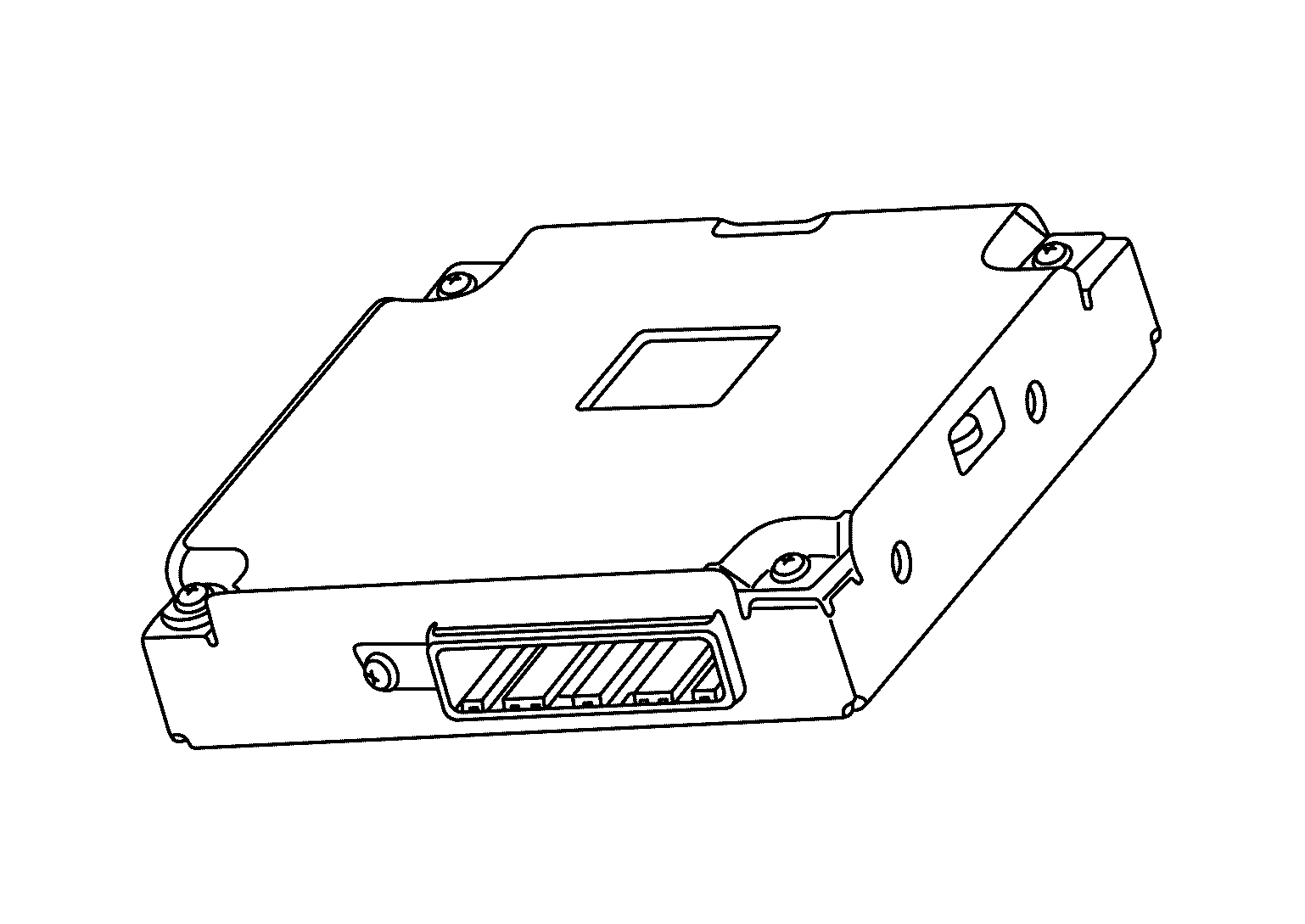

Around View Monitor Control Unit
- Necessary signals are received from CAN gateway via CAN communication.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Necessary signals are transmitted/received to/from display control unit.
- Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the display control unit.
- Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line and vehicle icon are rendered with the around view monitor control unit and combined with camera image.
