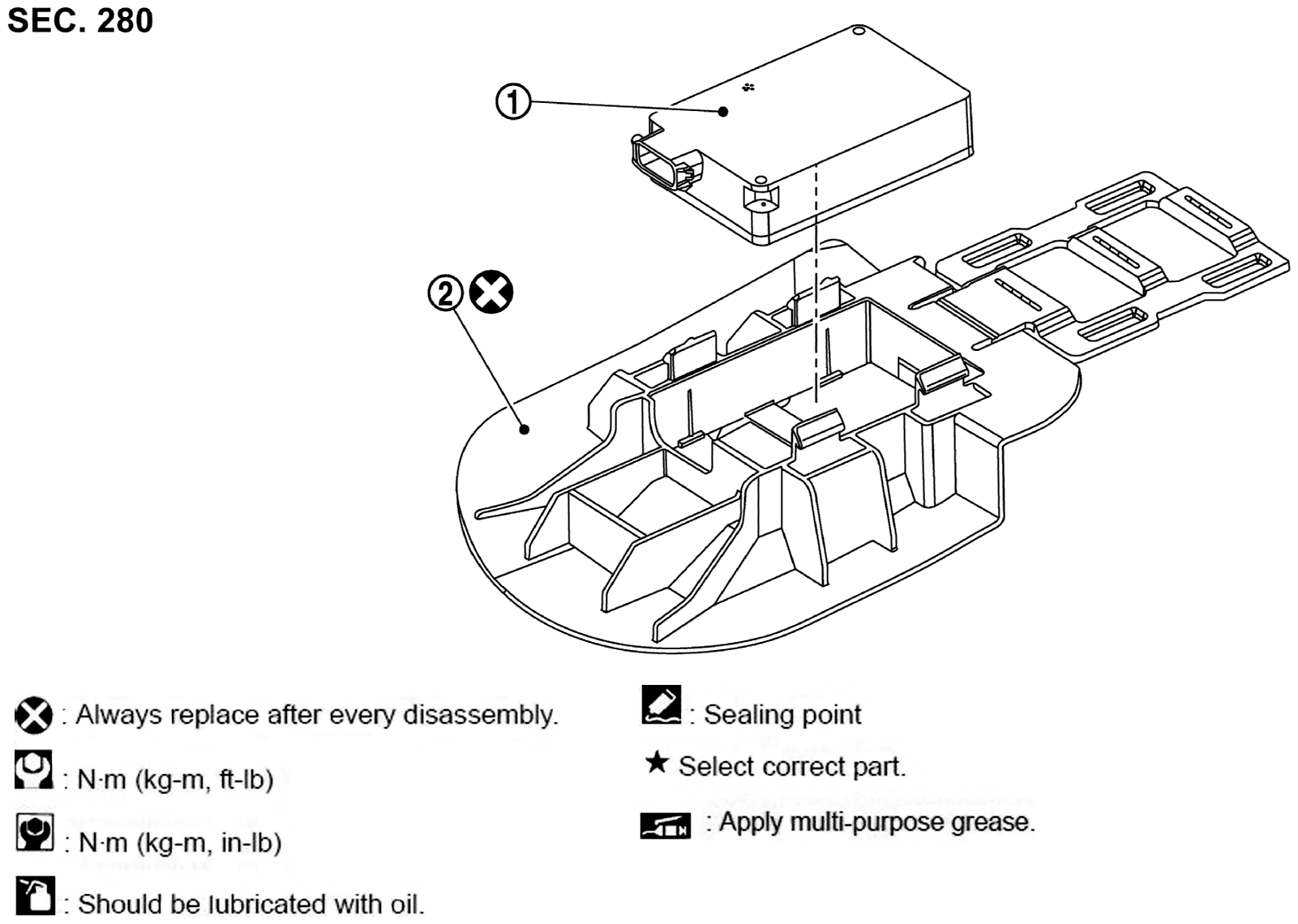

Exploded View With Torque Specifications

GNSJSOIA2276ZZ-276Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Side radar WHITE-2 Bracket
DISAS : Always replace after every disassembly
