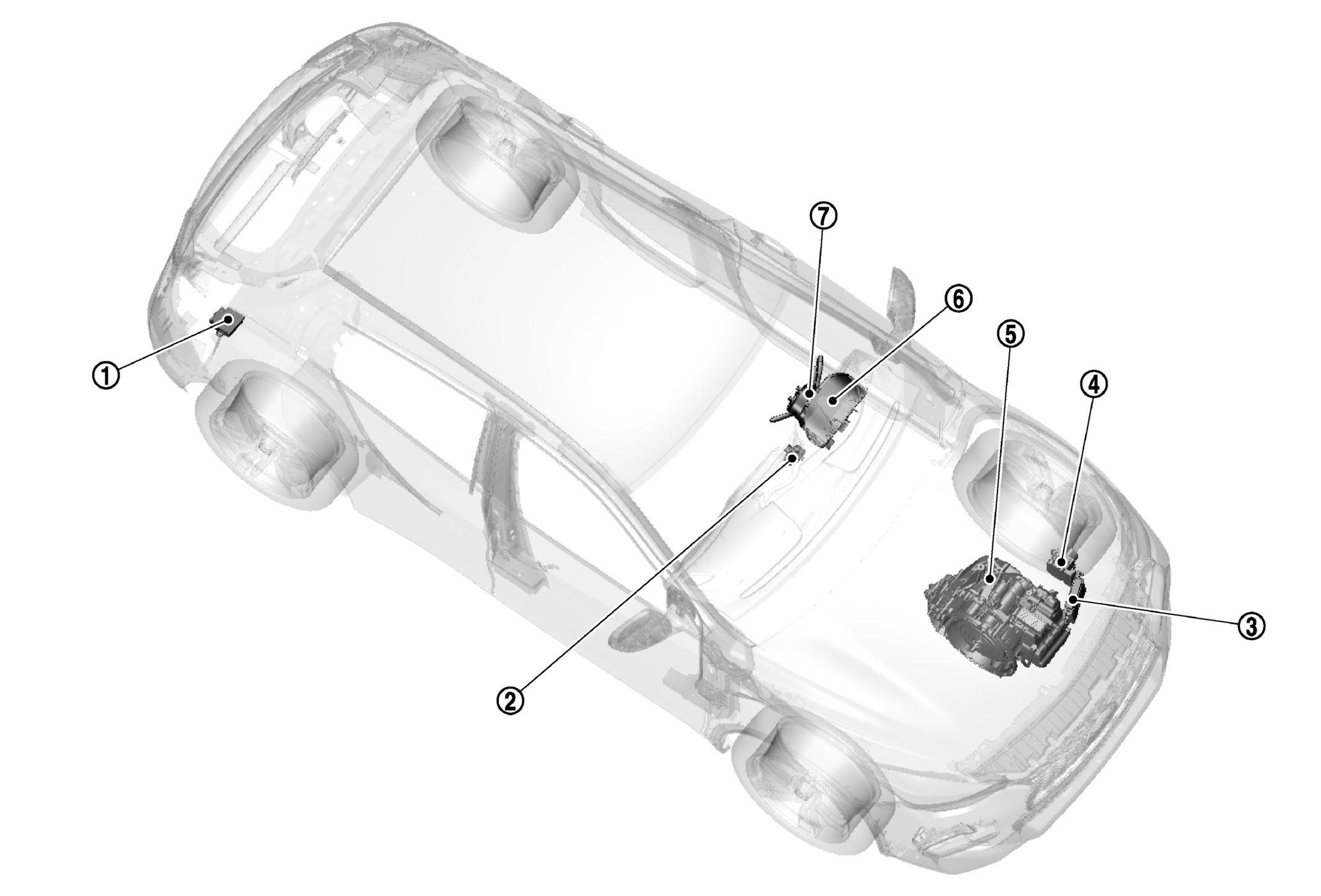

Electric parking brake control module |
- Transmits parking brake status signal
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Electric ignition switch control unit |
- Transmits/Receives set maximum speed status signal, speed setting status signal, and meter display signal
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
ECM |
- Transmits mainly the following signals
- Engine running signal
- Drive operational signal
- Gear range status signal
- Accelerator pedal position signal
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Electric stability program control unit |
- Electric stability program control unit contains the control for the ASCD and ASL.
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
TCM |
- Transmits the gear range signal
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Combination meter |
- Performs the following operations using the received signals
- Operates warning buzzer
- Refer to COMPONENT LOCATION
for detailed installation location
|
 |
Steering column control module |
- Transmits cruise control lever signal
- Refer to COMPONENT LOCATION
for detailed installation location
|
