Stop/Start System: Wiring Diagram

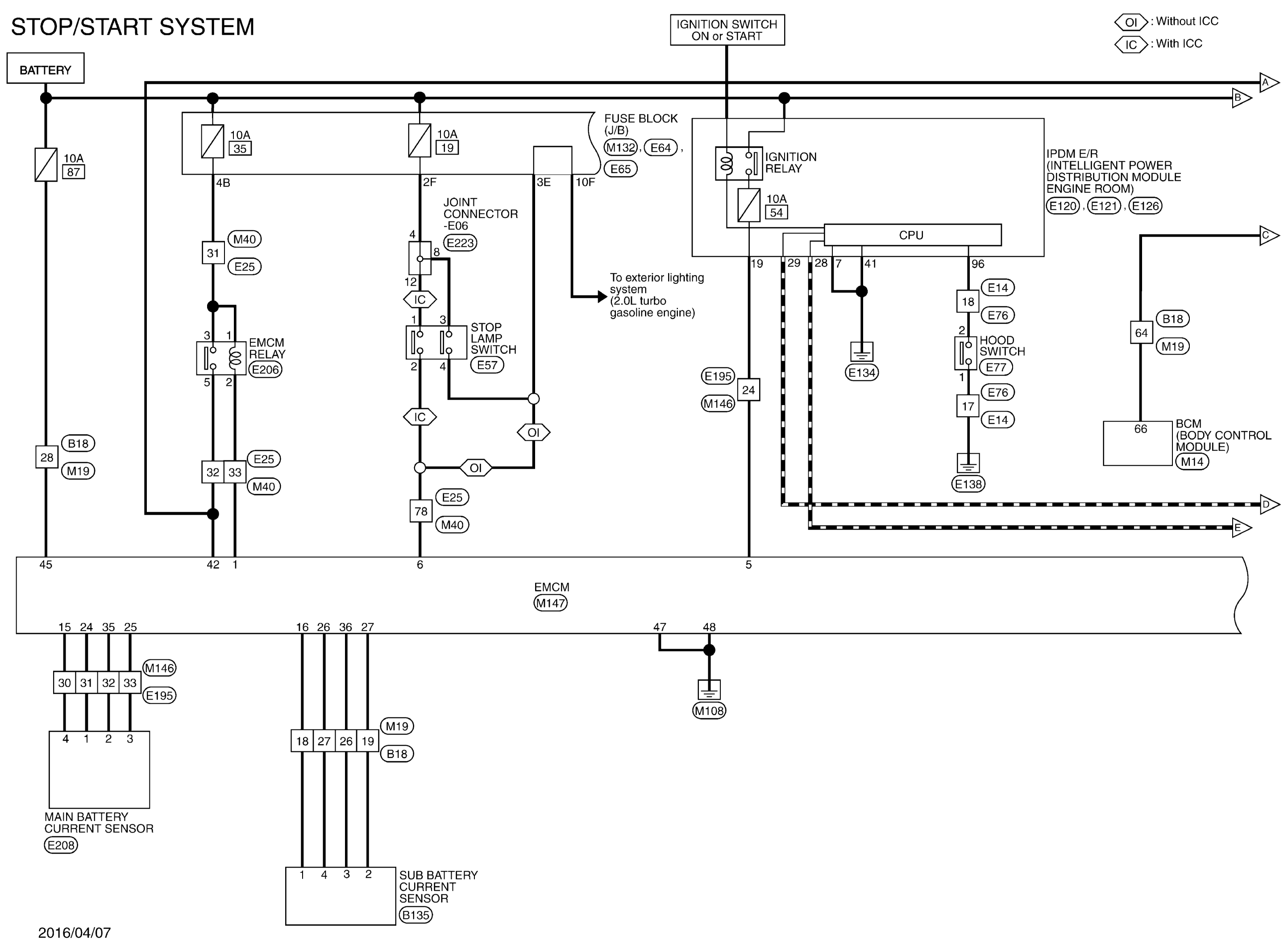

GNSJRBWD9981GB-981

Courtesy of NISSAN NORTH AMERICA, INC.

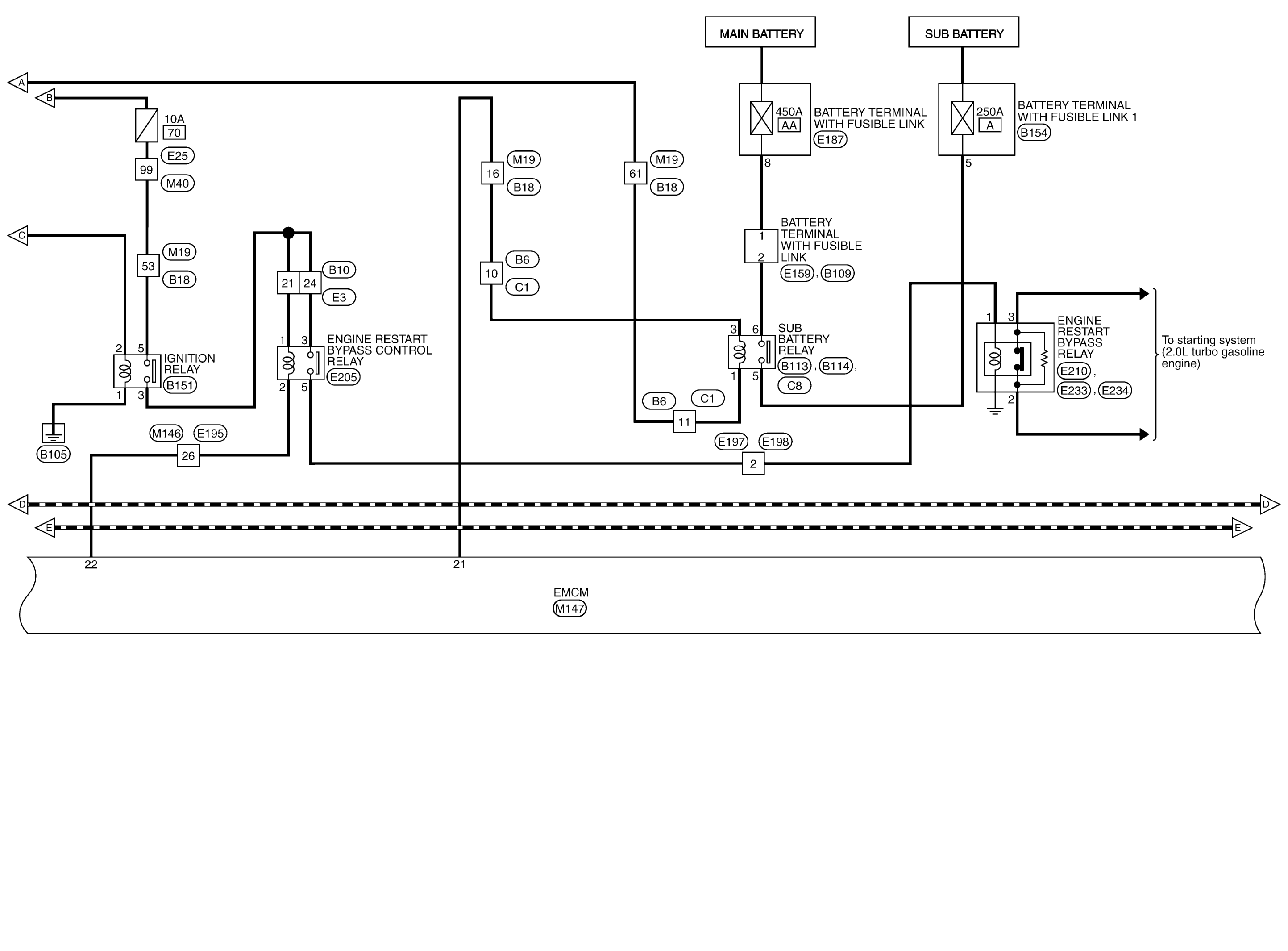

GNSJRBWD9982GB-982

Courtesy of NISSAN NORTH AMERICA, INC.

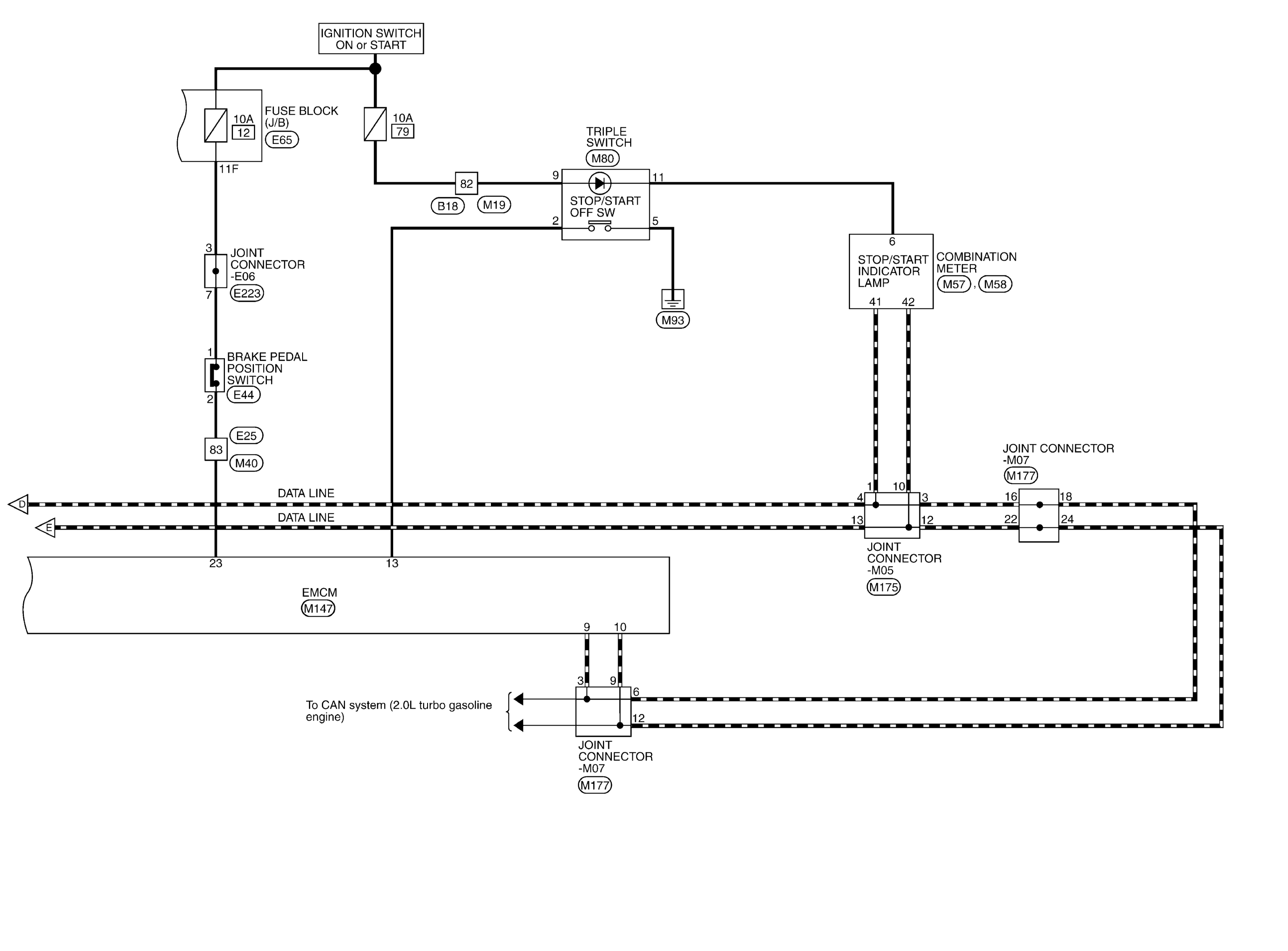

GNSJRBWD9983GB-983

Courtesy of NISSAN NORTH AMERICA, INC.

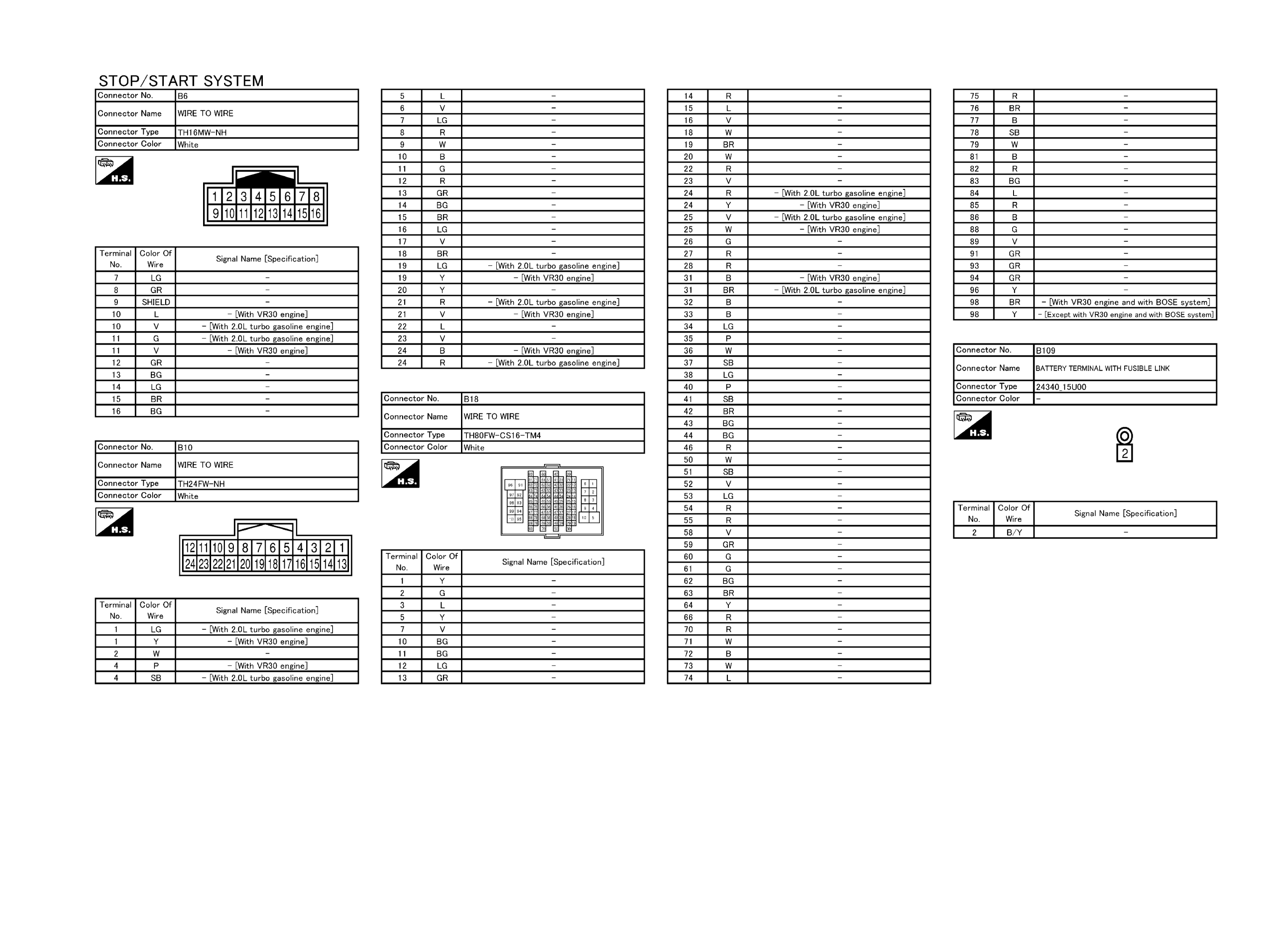

GNSJRBWE5773GB-773

Courtesy of NISSAN NORTH AMERICA, INC.

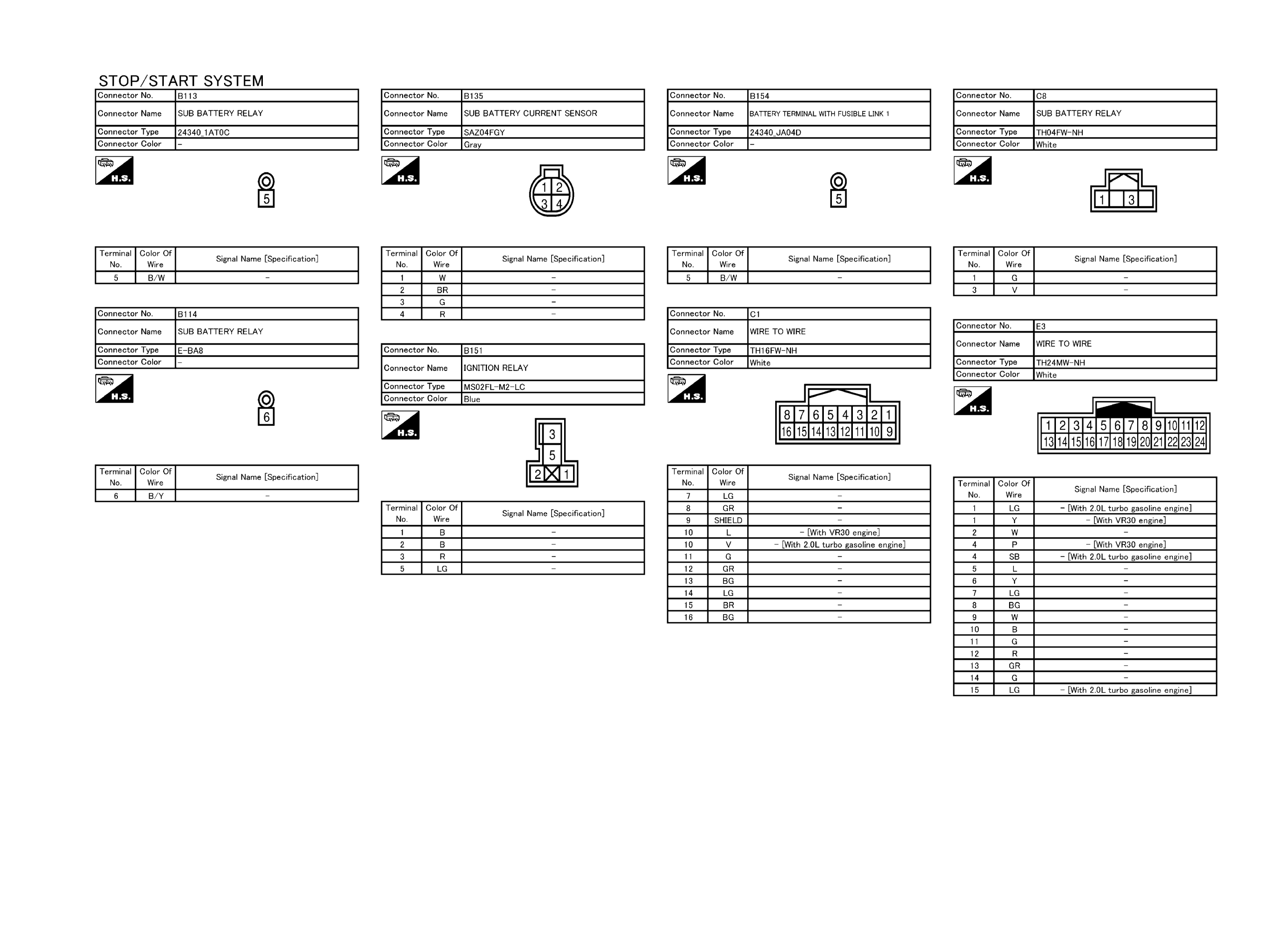

GNSJRBWE5774GB-774

Courtesy of NISSAN NORTH AMERICA, INC.

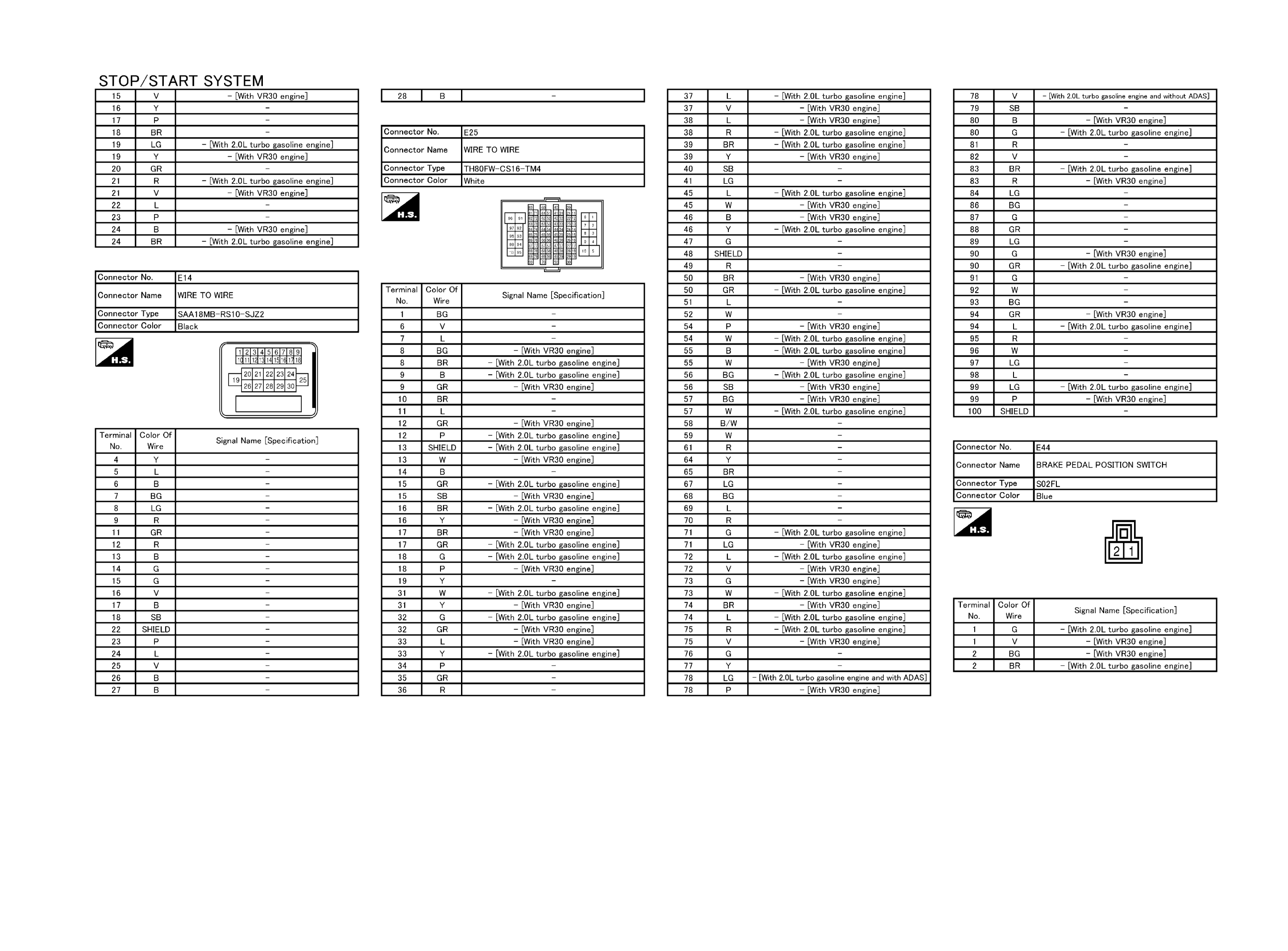

GNSJRBWE5775GB-775

Courtesy of NISSAN NORTH AMERICA, INC.

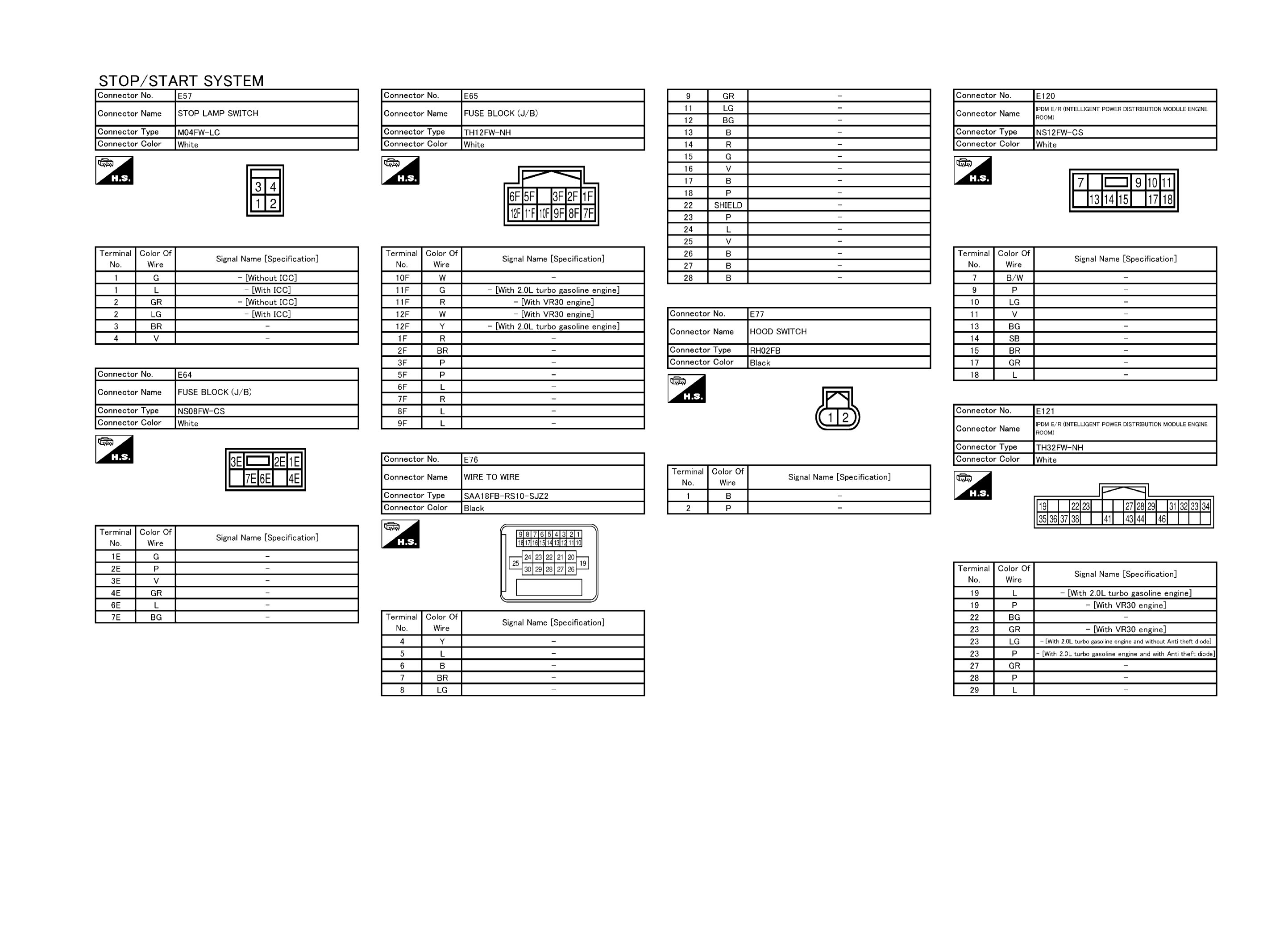

GNSJRBWE5776GB-776

Courtesy of NISSAN NORTH AMERICA, INC.

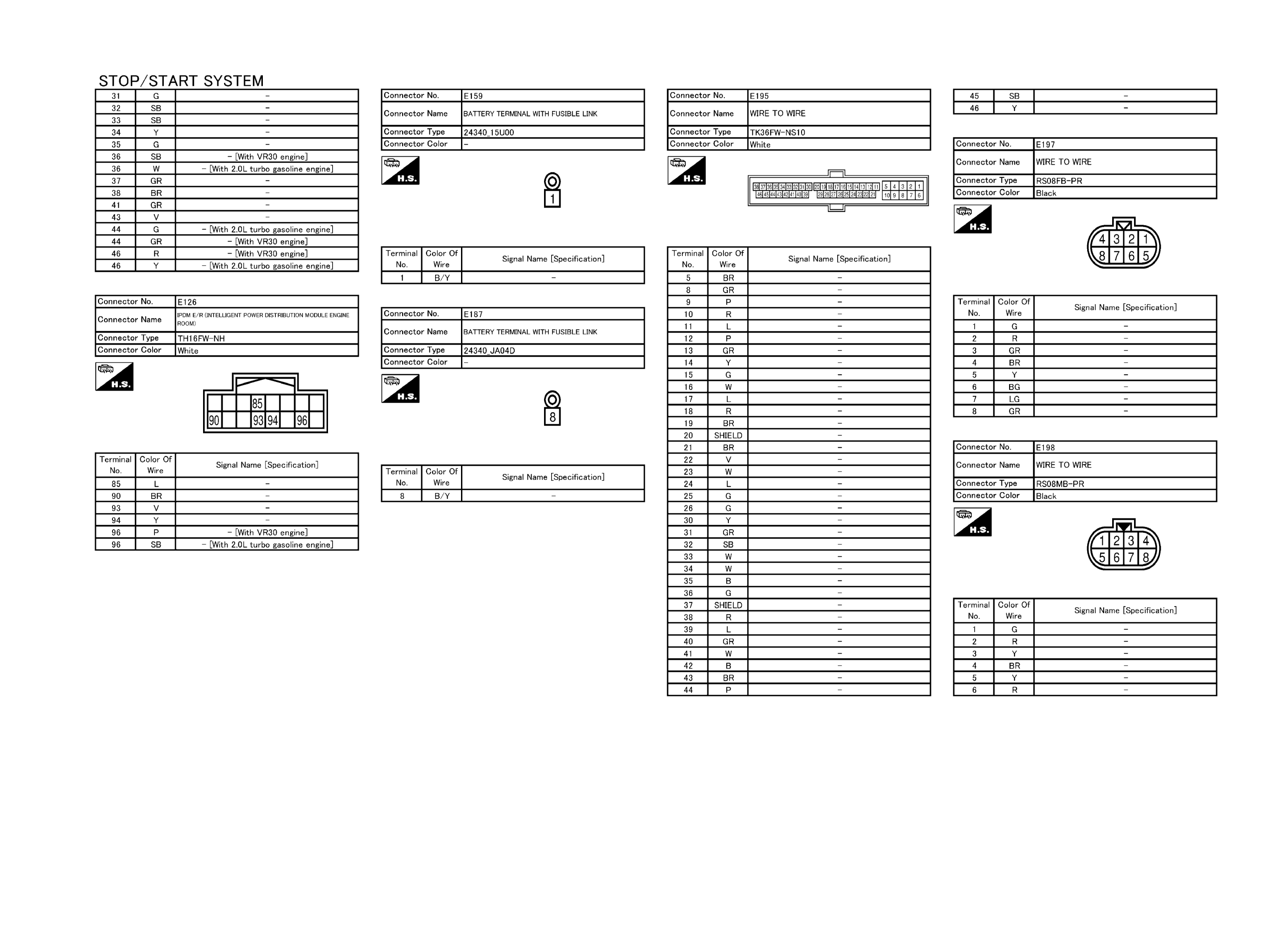

GNSJRBWE5777GB-777

Courtesy of NISSAN NORTH AMERICA, INC.

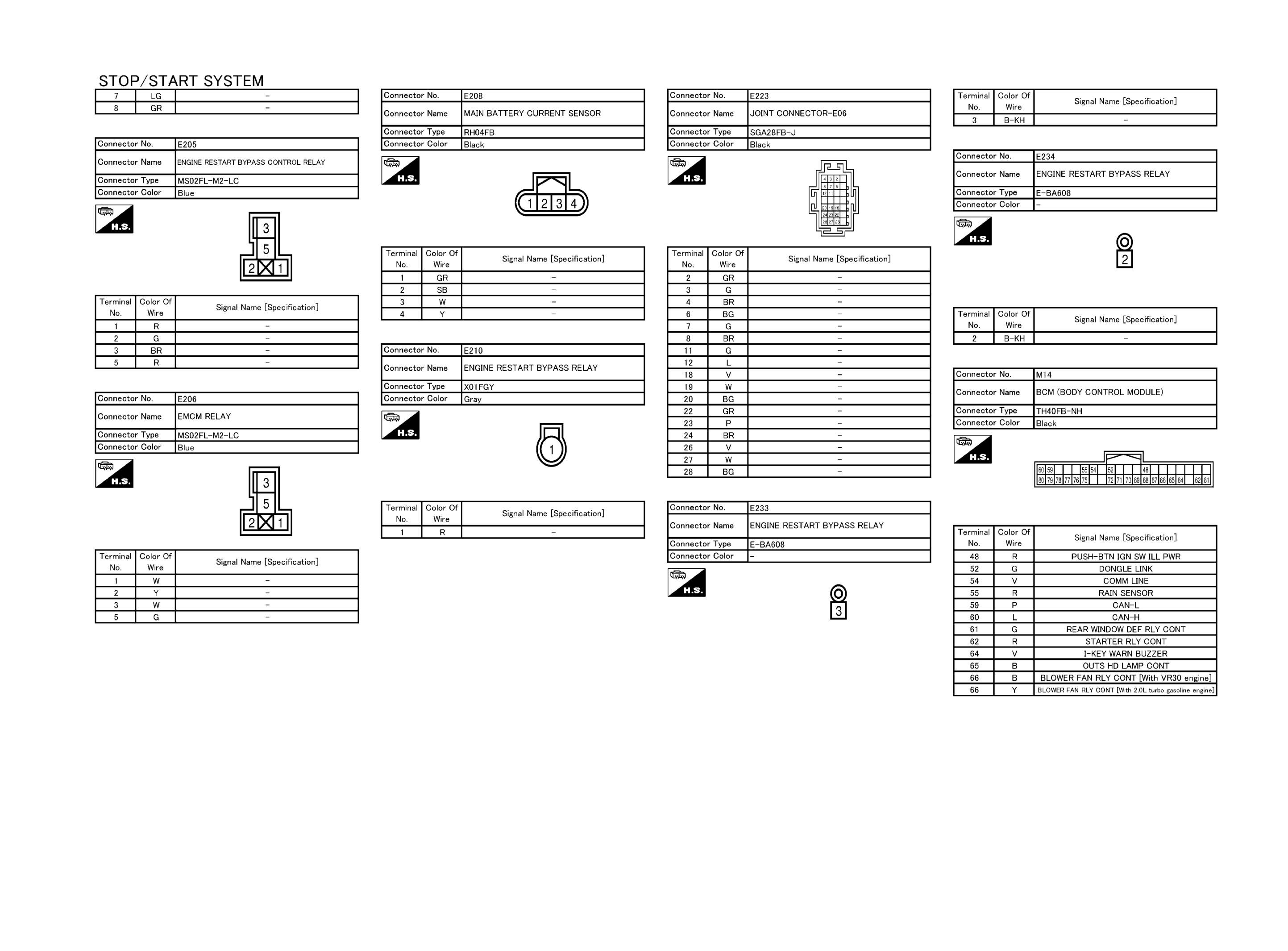

GNSJRBWE5778GB-778

Courtesy of NISSAN NORTH AMERICA, INC.

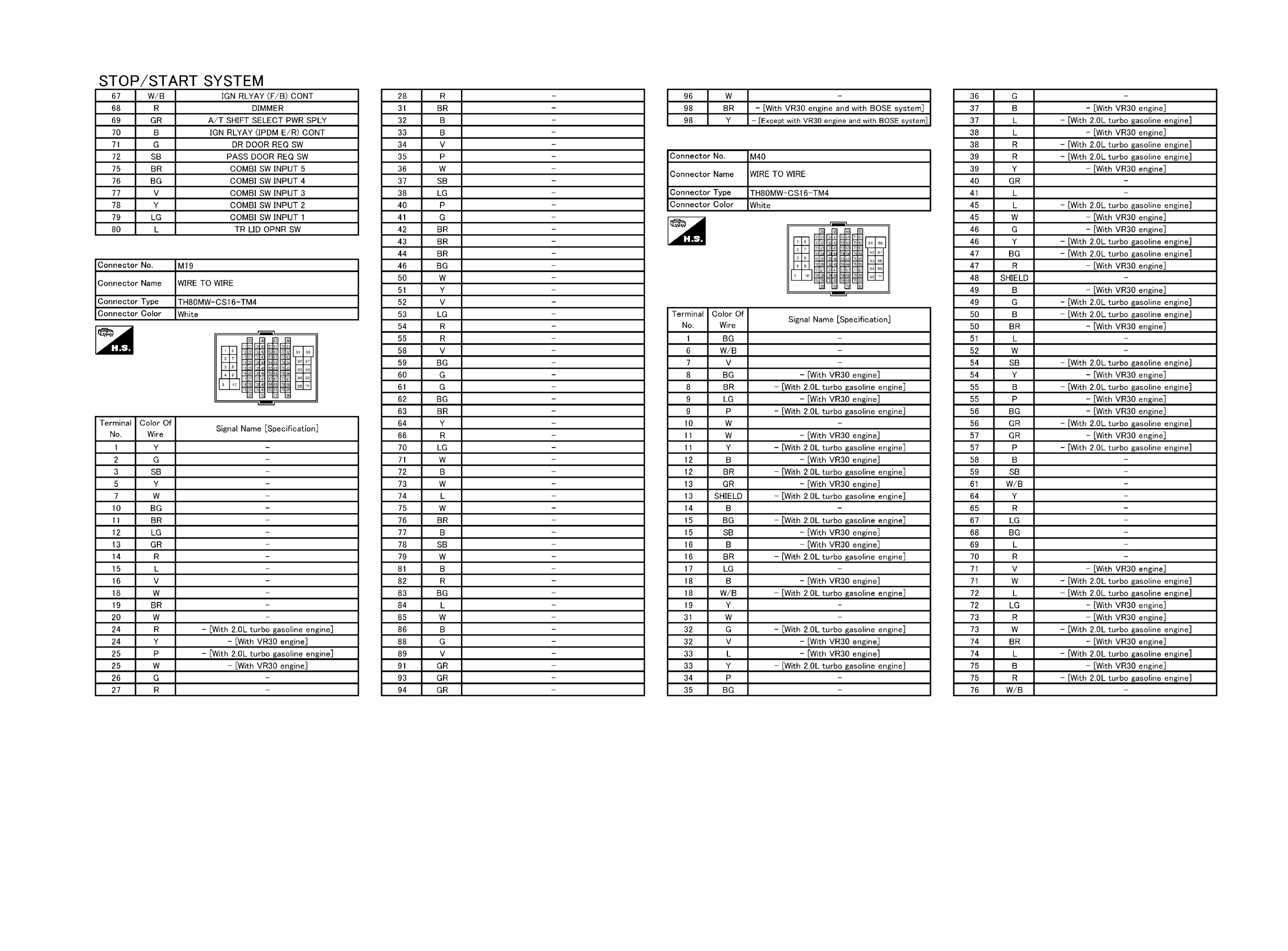

GNSJRBWE5779GB-779

Courtesy of NISSAN NORTH AMERICA, INC.

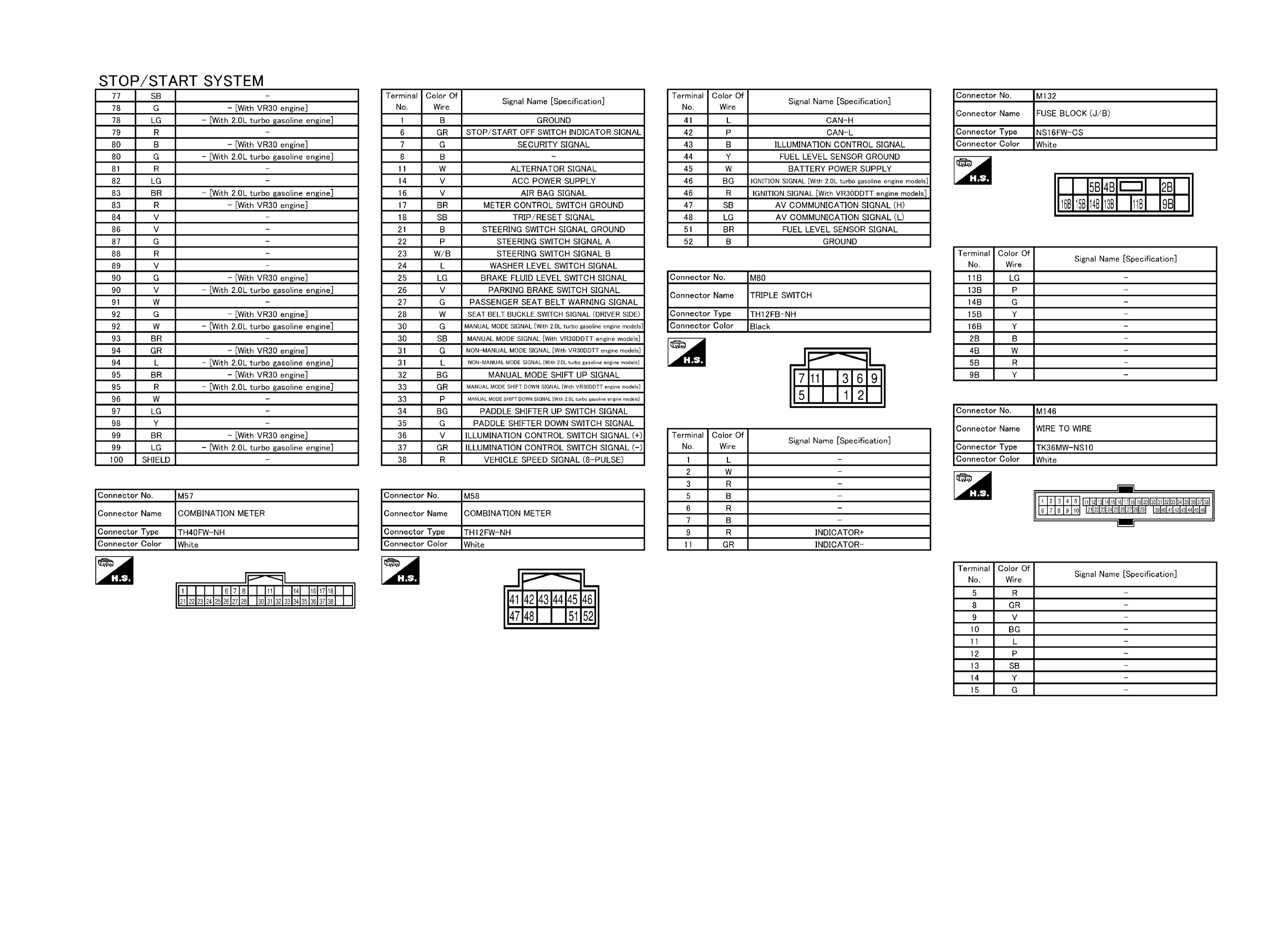

GNSJRBWE5780GB-780

Courtesy of NISSAN NORTH AMERICA, INC.

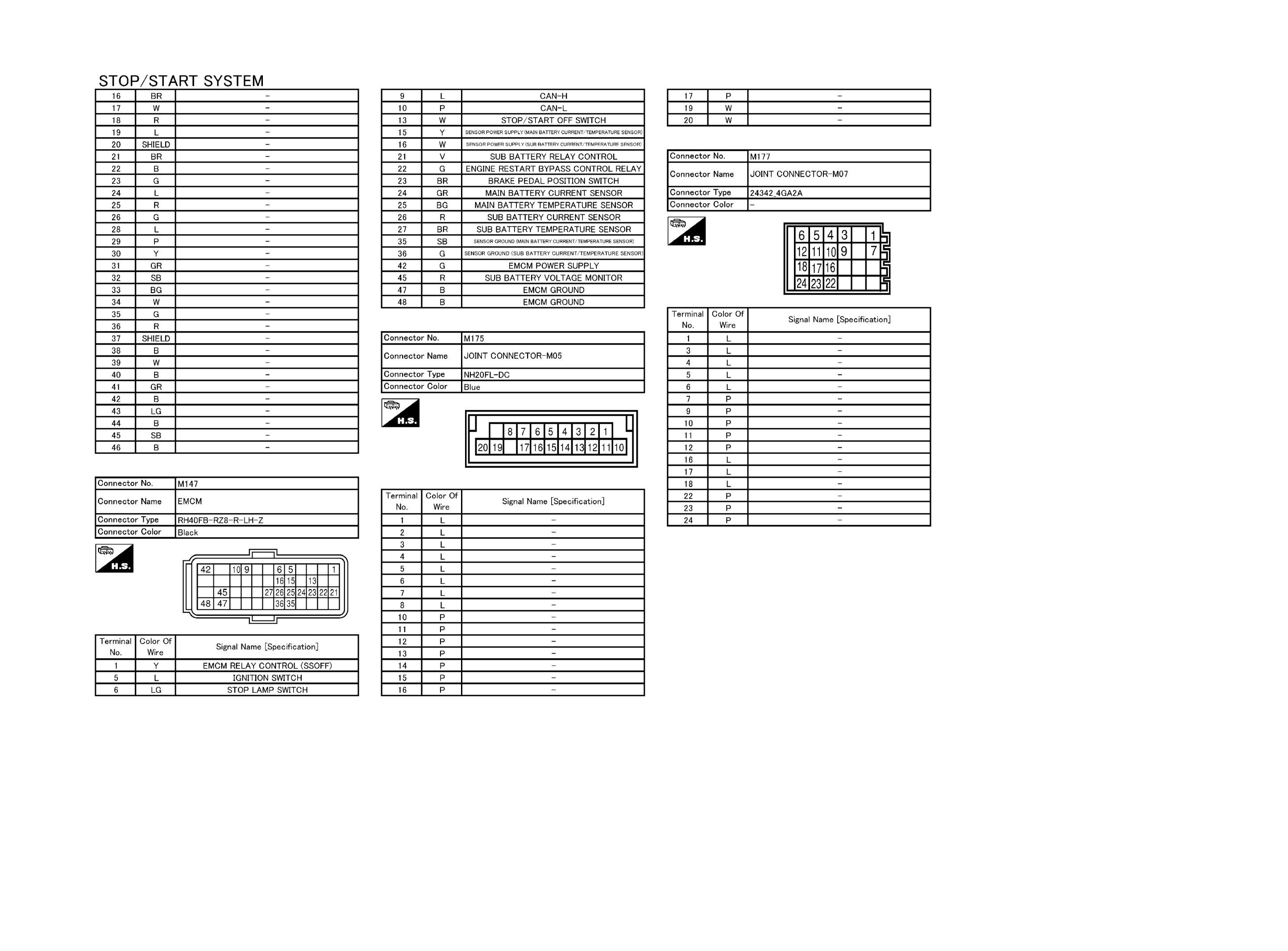

GNSJRBWE5781GB-781

Courtesy of NISSAN NORTH AMERICA, INC.
