Exploded View

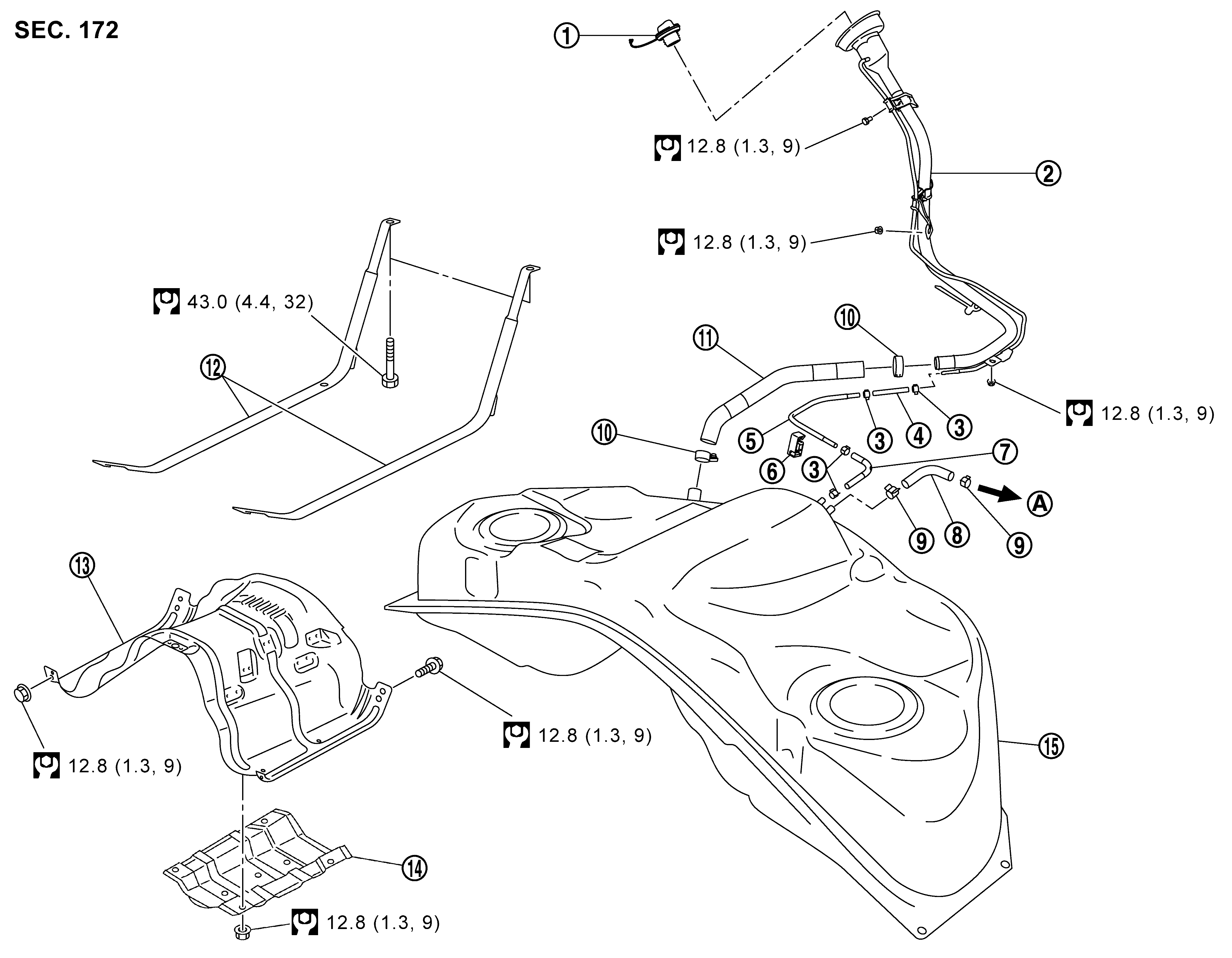

Fig 1: Fuel Tank With Torque Specifications
GNSJSBIB0666GB-666Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Fuel Filler Cap WHITE-2 Fuel Filler Tube WHITE-3 Clamp
WHITE-4 Vent Hose WHITE-5 Vent Tube WHITE-6 Clip
WHITE-7 Vent Hose WHITE-8 EVAP Hose WHITE-9 Clamp
WHITE-10 Clamp WHITE-11 Fuel Filler Hose WHITE-12 Fuel Tank Mounting Band
WHITE-13 Fuel Tank Protector WHITE-14 Insulator WHITE-15 Fuel Tank
MARU-A-W To EVAP Tube
BOLT : N•m (kg-m, ft-lb)
