Transfer Fluid Temperature Sensor
WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

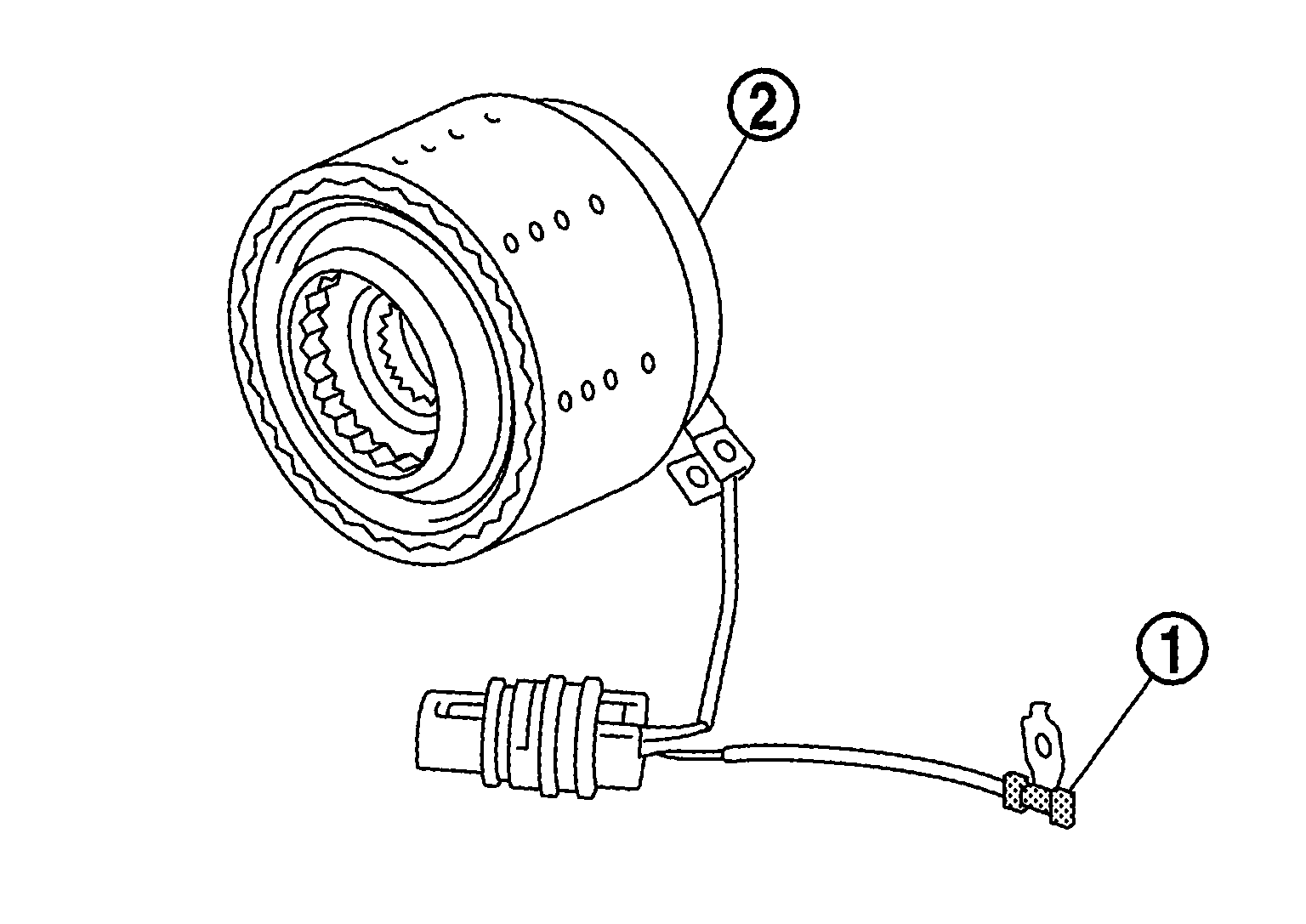

Transfer fluid temperature sensor
is integrated with electric controlled coupling
.
Courtesy of NISSAN NORTH AMERICA, INC.
Transfer fluid temperature sensor detects the transfer fluid temperature and transmits a signal to AWD control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
The electrical resistance of the sensor decreases as temperature increases.
