Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

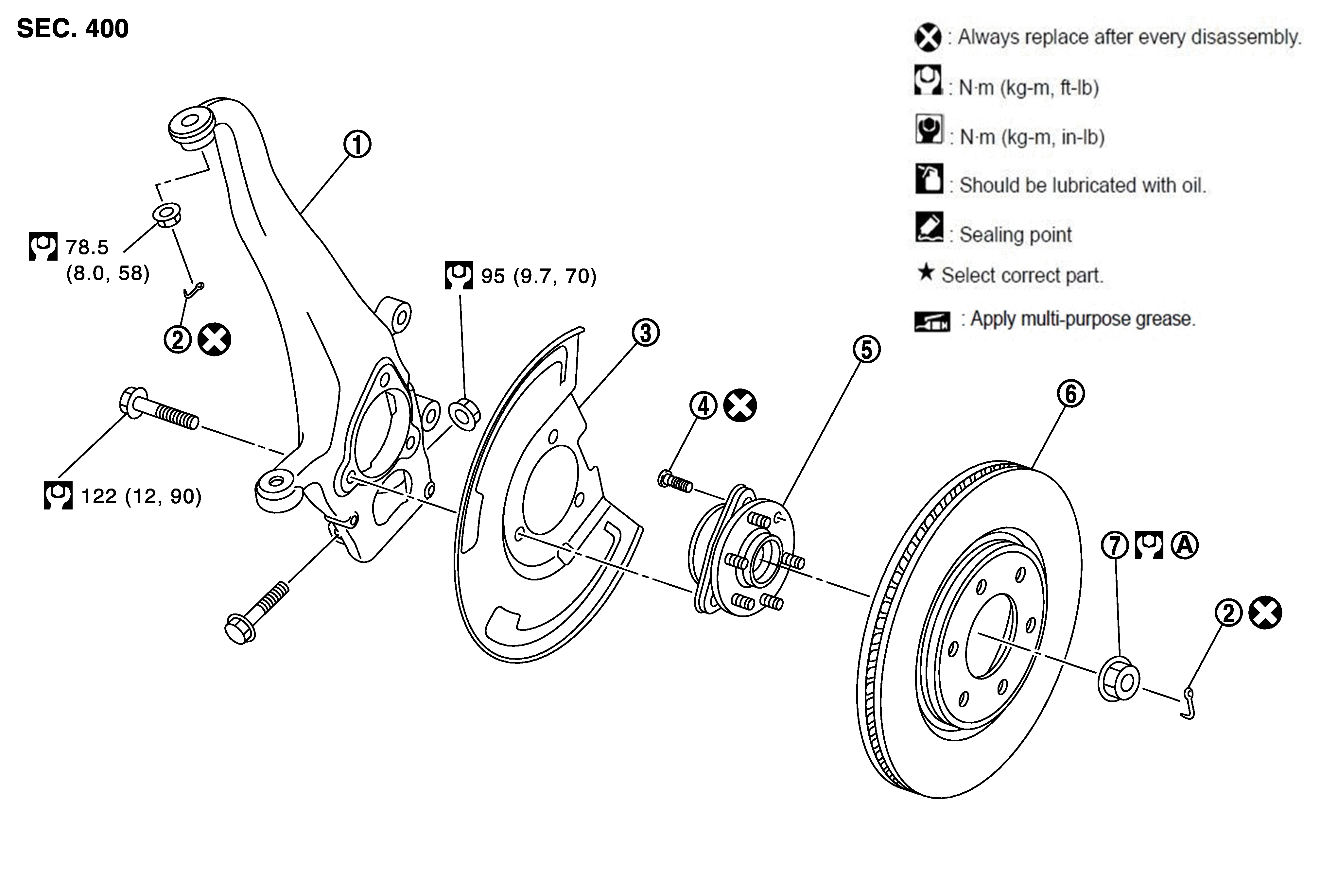

Fig 1: Exploded View Of Front Wheel Hub And Knuckle Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

Steering knuckle	Cotter pin	Splash guard
Hub bolt	Wheel hub and bearing assembly	Disc rotor
Wheel hub lock nut
Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION .
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
