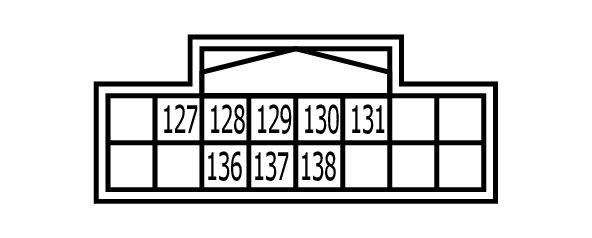

Av Control Unit Connector End View (M213)
Connector Types: TH16FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 127 | G | VOICE GUIDANCE SIGNAL (+) |
| 128 | V | VOICE GUIDANCE SIGNAL (-) |
| 129 | R | SOUND SIGNAL WOOFER (+) |
| 130 | L | SOUND SIGNAL CENTER SPEAKER (+) |
| 131 | SHIELD | SHIELD |
| 136 | SHIELD | SHIELD |
| 137 | W | SOUND SIGNAL WOOFER (-) |
| 138 | P | SOUND SIGNAL CENTER SPEAKER (-) |
