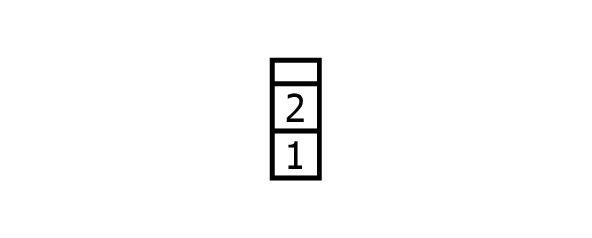

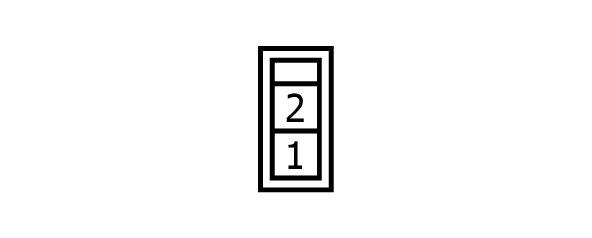

ASCD Brake Switch Connector End View (E109)
Connector Types:
M02FBR-LC
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
- |
| 2 |
G/Y |
- |
