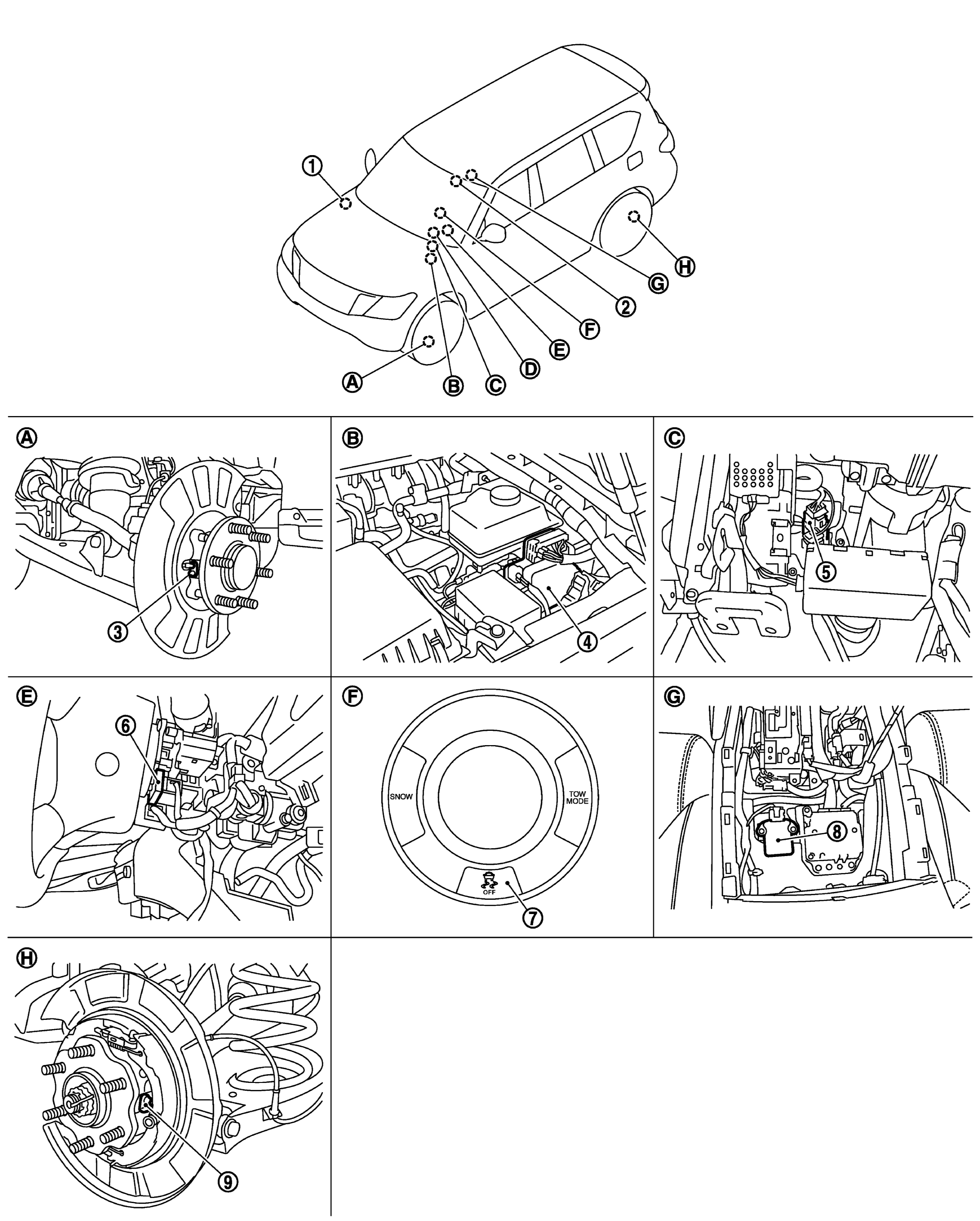

Component Location: 2WD
| 1. | ECM Refer to COMPONENT LOCATION . |
2. | Control valve & TCM Refer to COMPONENT LOCATION . |
3. | Front wheel sensor |
| 4. | ABS actuator and electric unit (control unit) | 5. | Stop lamp switch | 6. | Steering angle sensor |
| 7. | VDC OFF switch | 8. | Yaw rate/side/decel G sensor | 9. | Rear wheel sensor |
| A. | Front wheel hub and bearing assembly | B. | Inside engine room | C. | Brake pedal |
| D. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp | E. | Back of spiral cable assembly | F. | Center console assembly |
| G. | Under center console assembly | H. | Rear wheel hub and bearing assembly |
