Exploded View With Torque Specifications: Removal

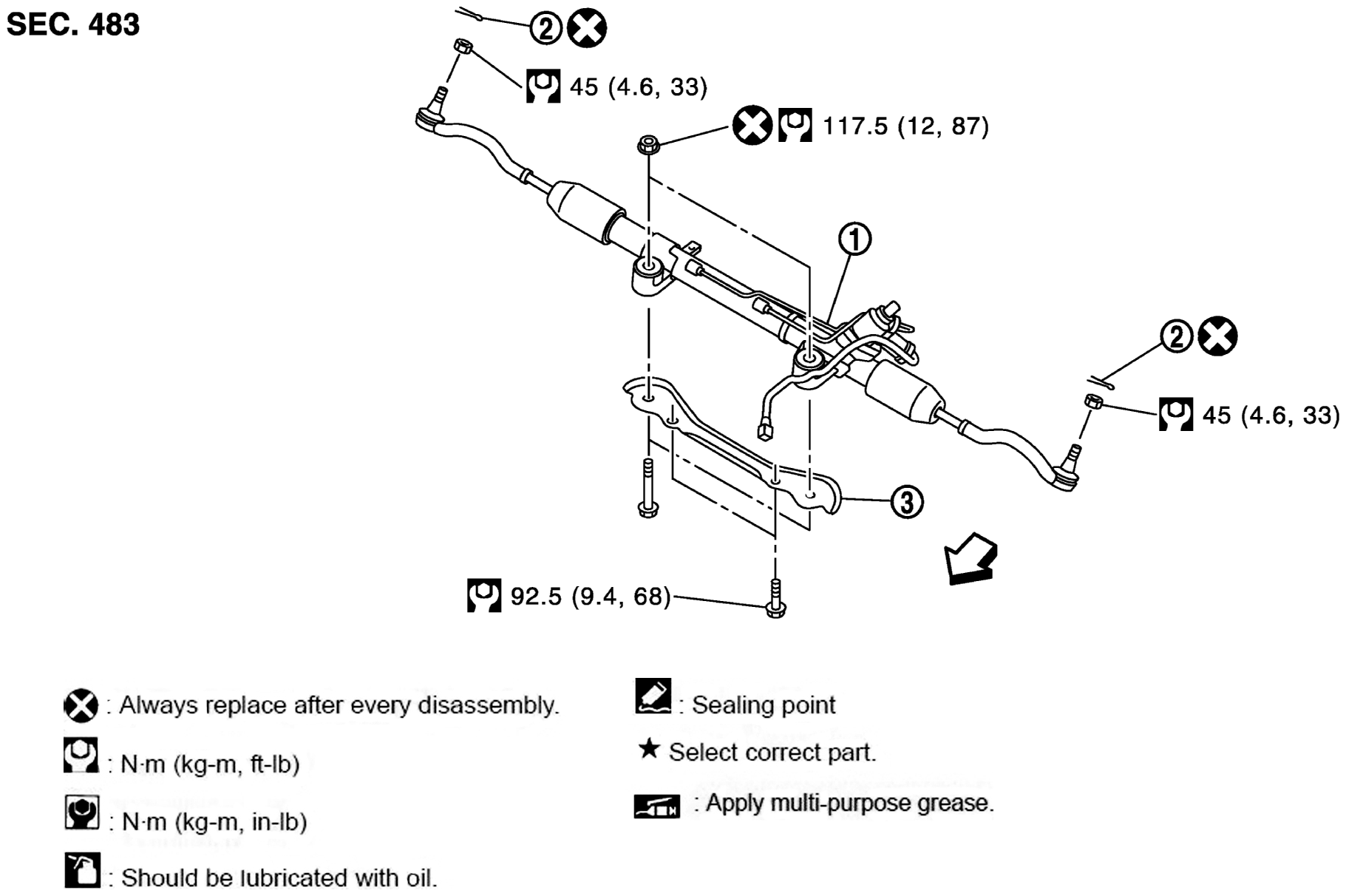

GNSJSGIA0641GB-641Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Cotter pin 3. Rack stay
ARROW : Vehicle front
DISAS : Always replace after every disassembly.
BOLT :N•m (kg - m, ft - lb)
