Av Control Unit Connector End View (M211)
Connector Types:
TH28FW

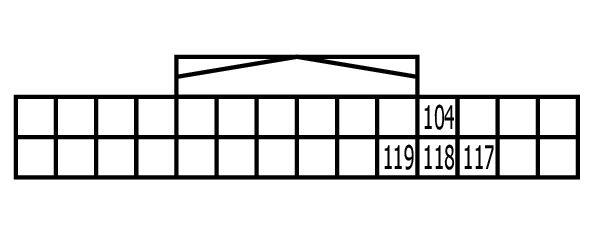

Fig 1: Terminal-side
Courtesy of NISSAN NORTH AMERICA

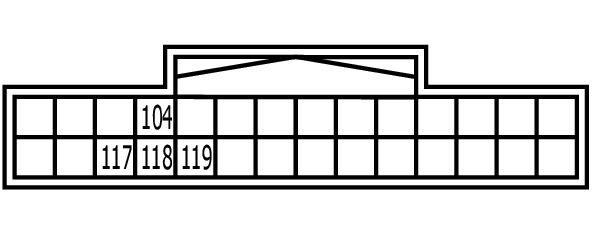

Fig 2: Harness-side
Courtesy of NISSAN NORTH AMERICA
Terminal No.
Color of Wire
Signal Name (Specification)
104
W
AUX SOUND SIGNAL LH
117
SHIELD
SHIELD
118
R
AUX SOUND SIGNAL RH
119
B
AUX GND
