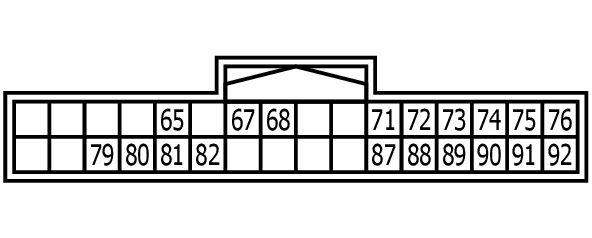

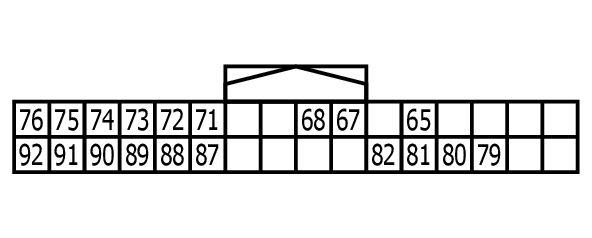

Av Control Unit Connector End View (M210)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 65 | V | PARKING BRAKE SIGNAL |
| 67 | B | COMPOSITE IMAGE SIGNAL GND |
| 68 | R | COMPOSITE IMAGE SIGNAL |
| 71 | SHIELD | MICROPHONE SHIELD |
| 72 | G | MICROPHONE VCC |
| 73 | R | COMM (CONT->DISP) |
| 74 | P | CAN-L |
| 75 | LG | AV COMM (L) |
| 76 | LG | AV COMM (L) |
| 79 | R | ILLUMINATION |
| 80 | G | IGNITION SIGNAL |
| 81 | BG | REVERSE SIGNAL |
| 82 | R | VEHICLE SPEED SIGNAL (8-PULSE) |
| 87 | R | MICROPHONE SIGNAL |
| 88 | B | SHIELD |
| 89 | G | COMM (DISP->CONT) |
| 90 | L | CAN-H |
| 91 | SB | AV COMM (H) |
| 92 | SB | AV COMM (H) |
