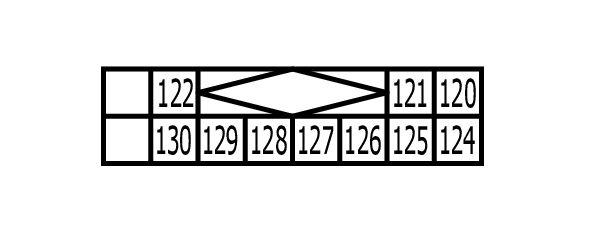

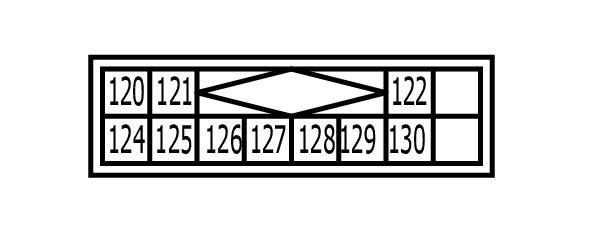

Av Control Unit Connector End View (M206)
Connector Types: A12FW
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 120 | B | SATELLITE SOUND SIGNAL LH (+) |
| 121 | G | SATELLITE SOUND SIGNAL RH (+) |
| 122 | R | COMM (CONT->SAT) |
| 124 | W | SATELLITE SOUND SIGNAL LH (-) |
| 125 | R | SATELLITE SOUND SIGNAL RH (-) |
| 126 | SHIELD | SHIELD |
| 127 | SHIELD | SHIELD |
| 128 | SB | MODE CHANGE SIGNAL |
| 129 | W | REQUEST (SAT->CONT) |
| 130 | B | COMM (SAT->CONT) |
