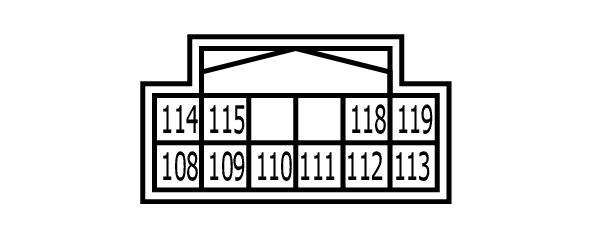

Av Control Unit Connector End View (M205)
Connector Types: TH12FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 108 | BR | SOUND SIGNAL REAR RH (+) |
| 109 | R | SOUND SIGNAL FRONT RH (+) |
| 110 | V | AMP. ON SIGNAL |
| 111 | B | SHIELD |
| 112 | V | SOUND SIGNAL REAR LH (+) |
| 113 | P | SOUND SIGNAL FRONT LH (+) |
| 114 | Y | SOUND SIGNAL REAR RH (-) |
| 115 | G | SOUND SIGNAL FRONT RH (-) |
| 118 | LG | SOUND SIGNAL REAR LH (-) |
| 119 | L | SOUND SIGNAL FRONT LH (-) |
