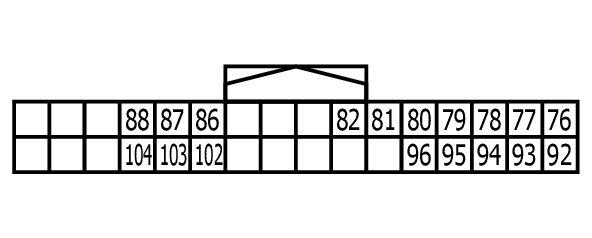

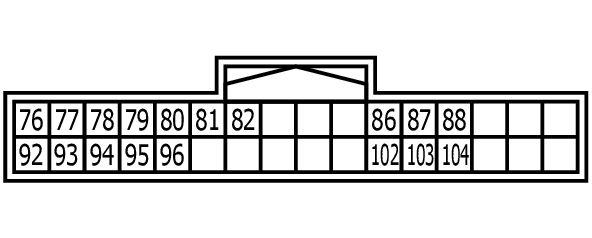

Av Control Unit Connector End View (M204)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 76 | LG | AV COMM (L) |
| 77 | SB | AV COMM (H) |
| 78 | LG | AV COMM (L) |
| 79 | SB | AV COMM (H) |
| 80 | P | CAN-L |
| 81 | L | CAN-H |
| 82 | BR | SW GND |
| 86 | SHIELD | SHIELD |
| 87 | L | TEL VOICE SIGNAL (+) |
| 88 | P | TEL VOICE SIGNAL (-) |
| 92 | R | VEHICLE SPEED SIGNAL (8-PULSE) |
| 93 | V | PARKING BRAKE SIGNAL |
| 94 | BG | REVERSE SIGNAL |
| 95 | G | IGNITION SIGNAL |
| 96 | SB | DISK EJECT SIGNAL |
| 102 | B | AUX_GND |
| 103 | W | AUX_AUDIO_LH+ |
| 104 | R | AUX_AUDIO_RH+ |
