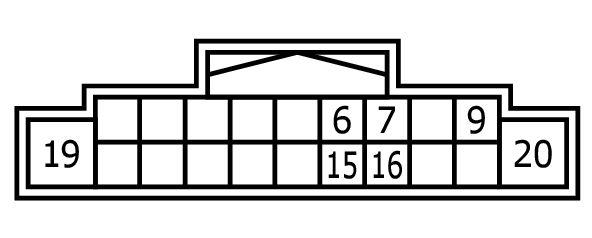

Av Control Unit Connector End View (M201)
Connector Types:
TH18FW-CS2
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 6 |
P |
STRG SW A |
| 7 |
V |
ACC |
| 9 |
R |
ILLUMINATION SIGNAL |
| 15 |
B |
STRG SW GND |
| 16 |
L |
STRG SW B |
| 19 |
Y |
BATTERY |
| 20 |
B |
GROUND |
