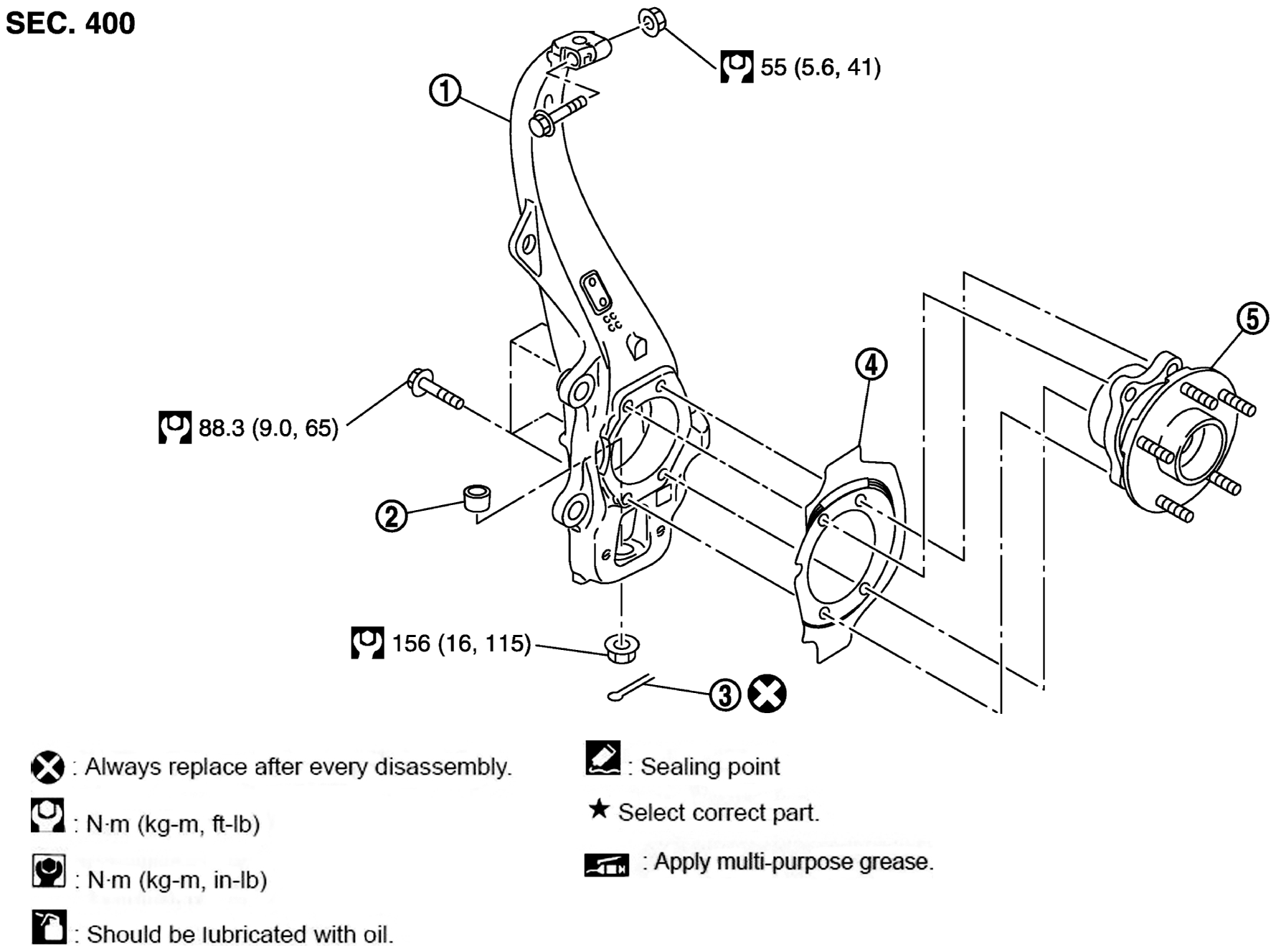

Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Ball seat	3.	Cotter pin
4.	Splash guard	5.	Wheel hub and bearing assembly
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
