Component Location

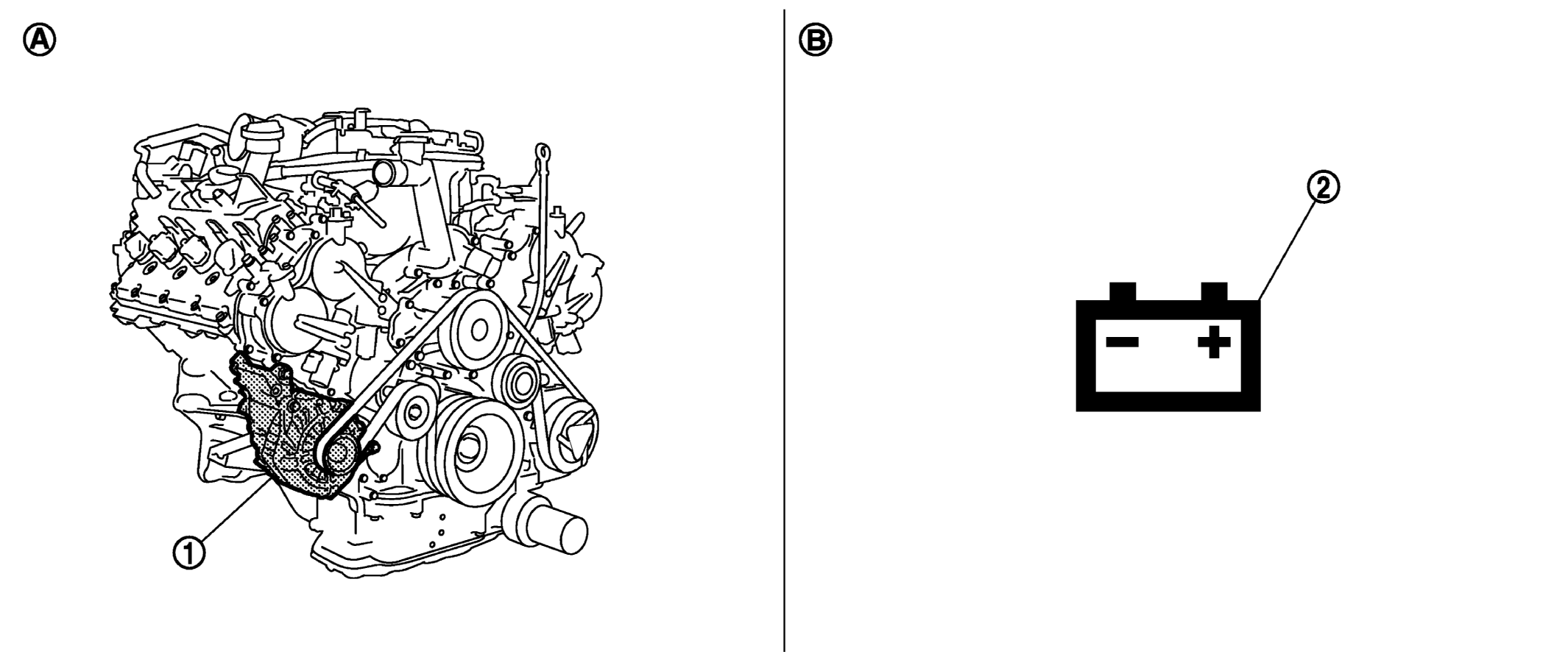

GNSJSMIA0070ZZ-070Courtesy of NISSAN NORTH AMERICA, INC.
1. Alternator 2. Charge warning lamp
A. Cylinder block (bank 1) side B. Combination meter
