Selector Lever Position Indicator Connector End View (M223)
Connector Types:

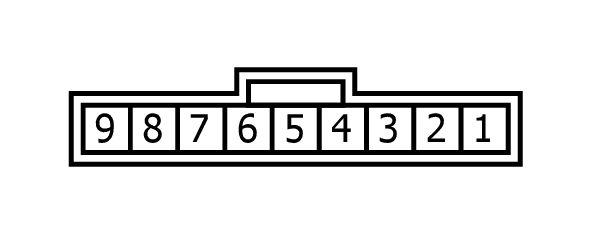

XARP-09V
Courtesy of NISSAN NORTH AMERICA

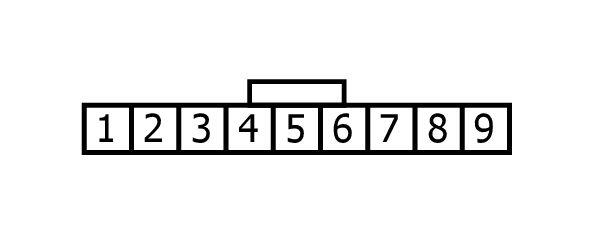

Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
R |
ILL |
| 2 |
Y |
MT |
| 3 |
L |
N |
| 4 |
BR |
D |
| 5 |
G |
R |
| 6 |
V |
M |
| 7 |
P |
P |
| 8 |
O |
AT |
| 9 |
B |
GROUND |
