Precaution For ICC Sensor
WARNING: This page is about a different variant/trim than selected.
- Never use the ICC sensor removed from vehicle. Never disassemble or remodel.

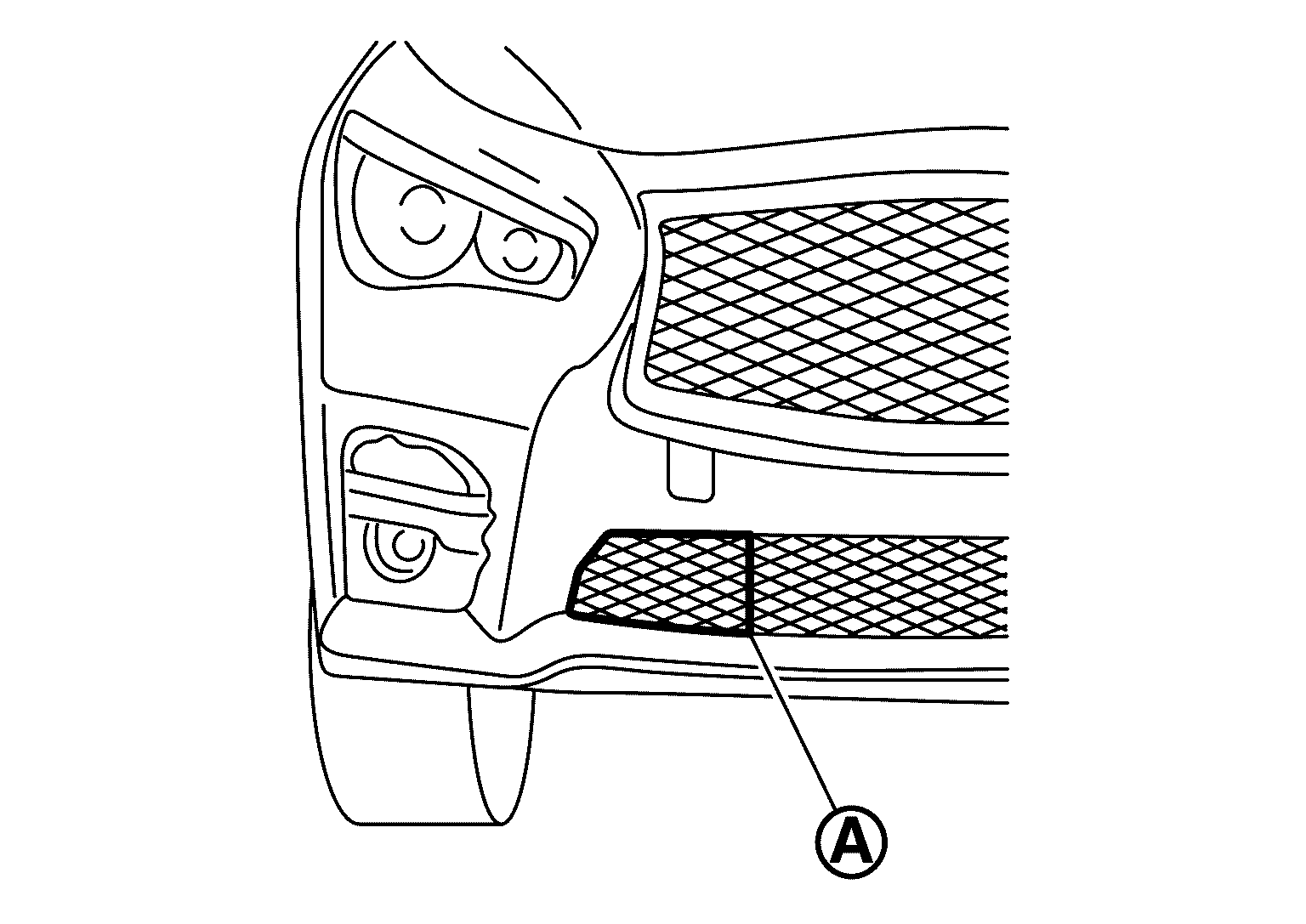

- Never install a part that the radar irradiation range
is interfered with.
- If a part interferes with the radar irradiation range, then the following conditions are caused:
- The condition of ICC sensor becomes equal to an unclean condition, and this makes it difficult to measure the distance between cars.
- When it is impossible to measure the distance between cars, the following functions stop and DTC is detected.
- Forward Emergency Braking (FEB)
- Intelligent Cruise Control (ICC)
- Distance Control Assist (DCA)
- Predictive Forward Collision Warning (PFCW)
