Exploded View With Torque Specifications

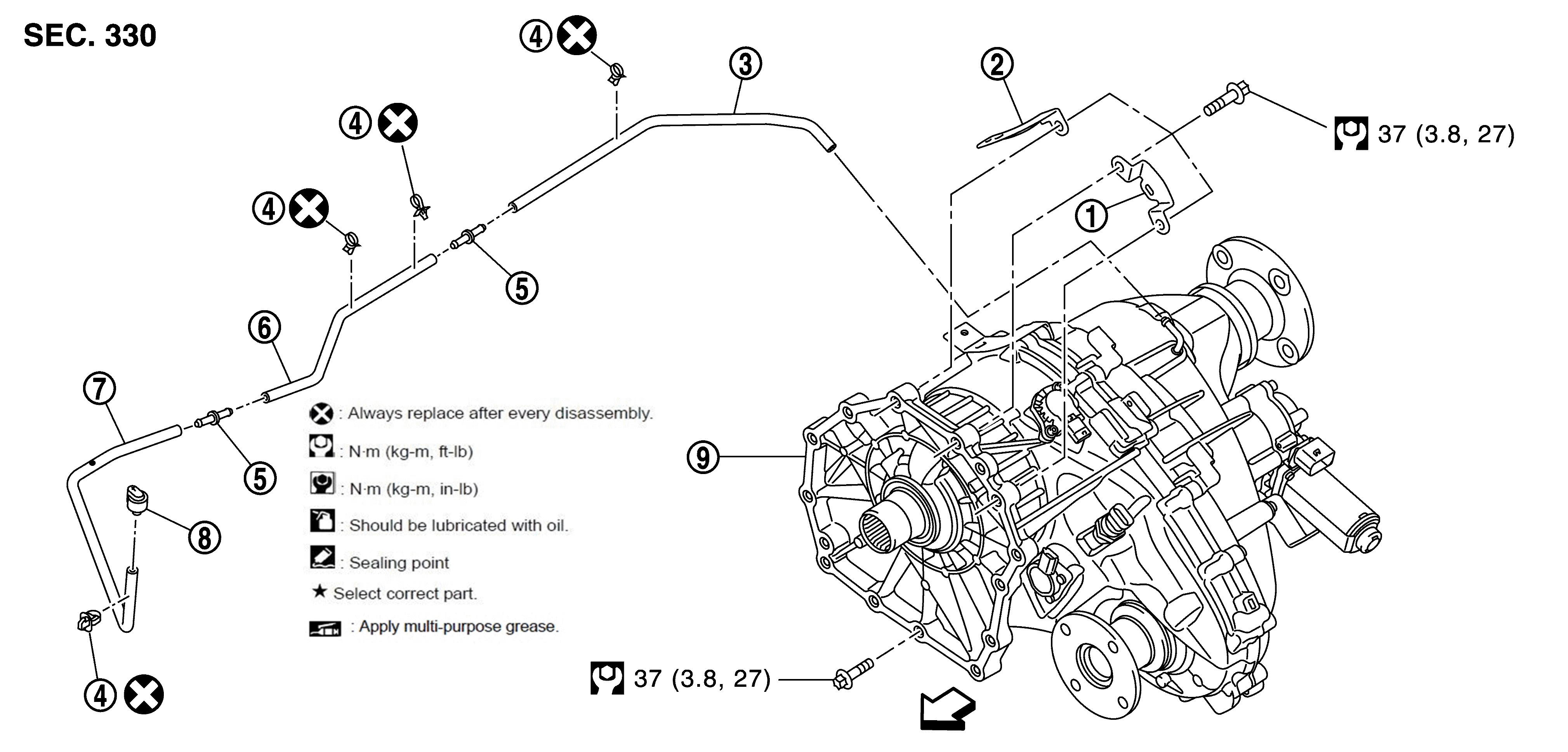

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
GNSJSDIA2870GB-870Courtesy of NISSAN NORTH AMERICA, INC.
1. Bracket 2. Bracket 3. Breather hose
4. Hose clip 5. Hose connector 6. Breather hose
7. Breather hose 8. Breather 9. Transfer assembly
ARROW : Vehicle front
Refer to COMPONENTS for symbols not described above.
