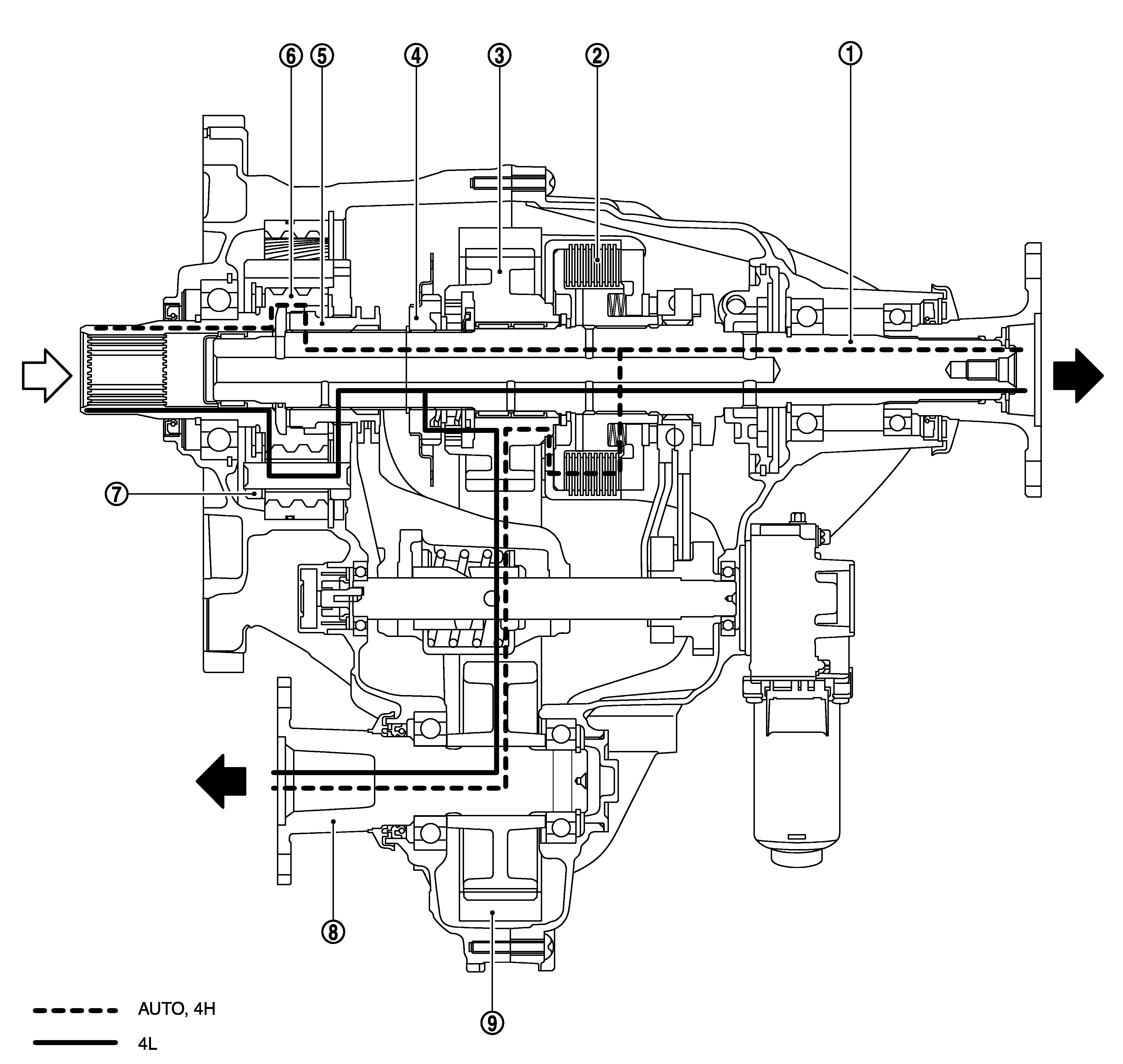

Torque Distribution Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Main shaft |
2. |
Clutch |
3. |
Sprocket |
| 4. |
Lock sleeve |
5. |
Hi-Lo sleeve |
6. |
Sun gear |
| 7. |
Planetary carrier assembly |
8. |
Front shaft flange |
9. |
Drive chain |
