Without HBMC

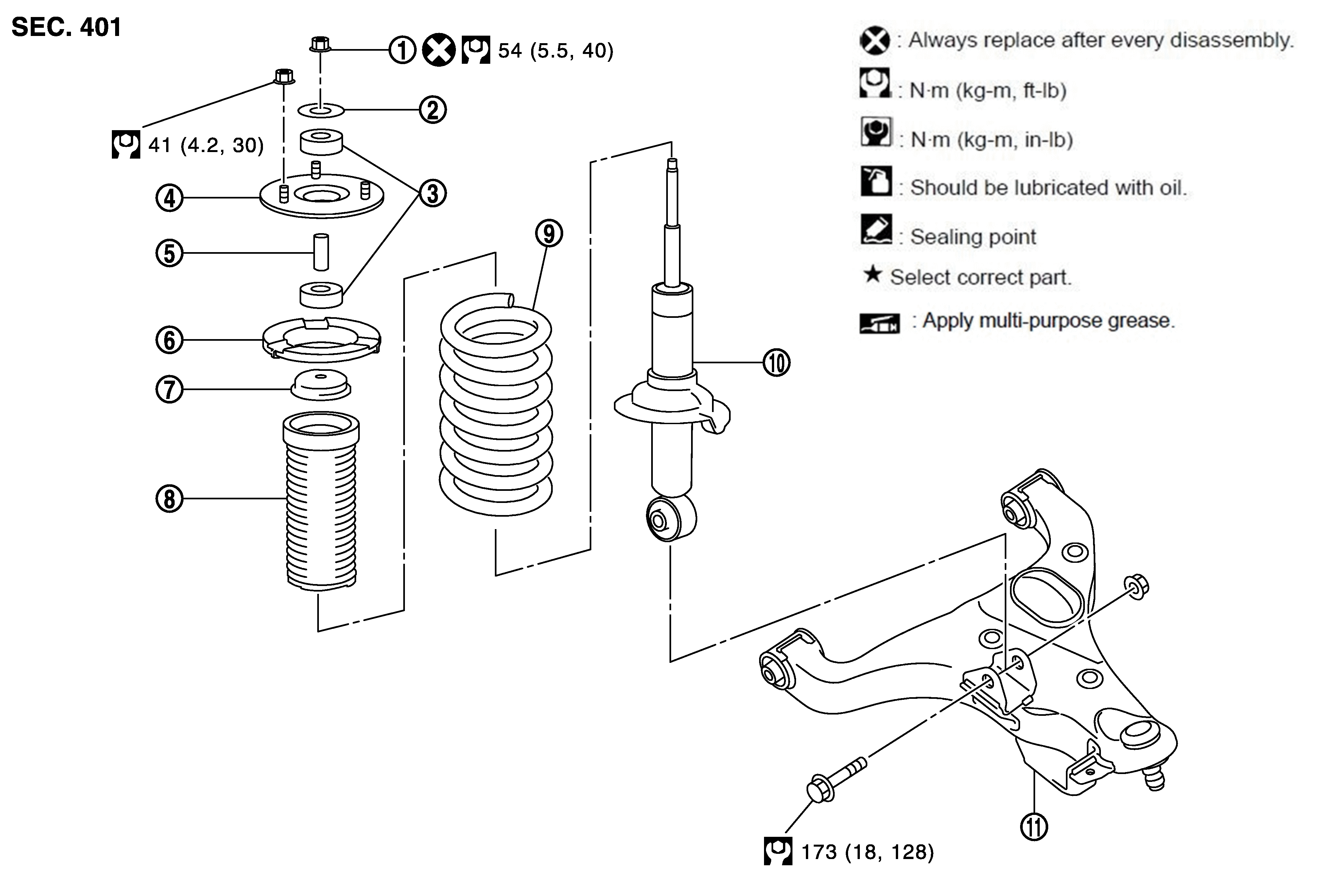

Fig 1: Exploded View Of Front Coil Spring & Shock Absorber With Torque Specifications (Without HBMC)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Washer	3.	Bushing
4.	Shock absorber mounting bracket	5.	Tube	6.	Rubber seat
7.	Bound bumper cover	8.	Dust cover	9.	Coil spring
10.	Shock absorber	11.	Lower link
Refer to COMPONENTS for symbols in the figure.
