With HBMC

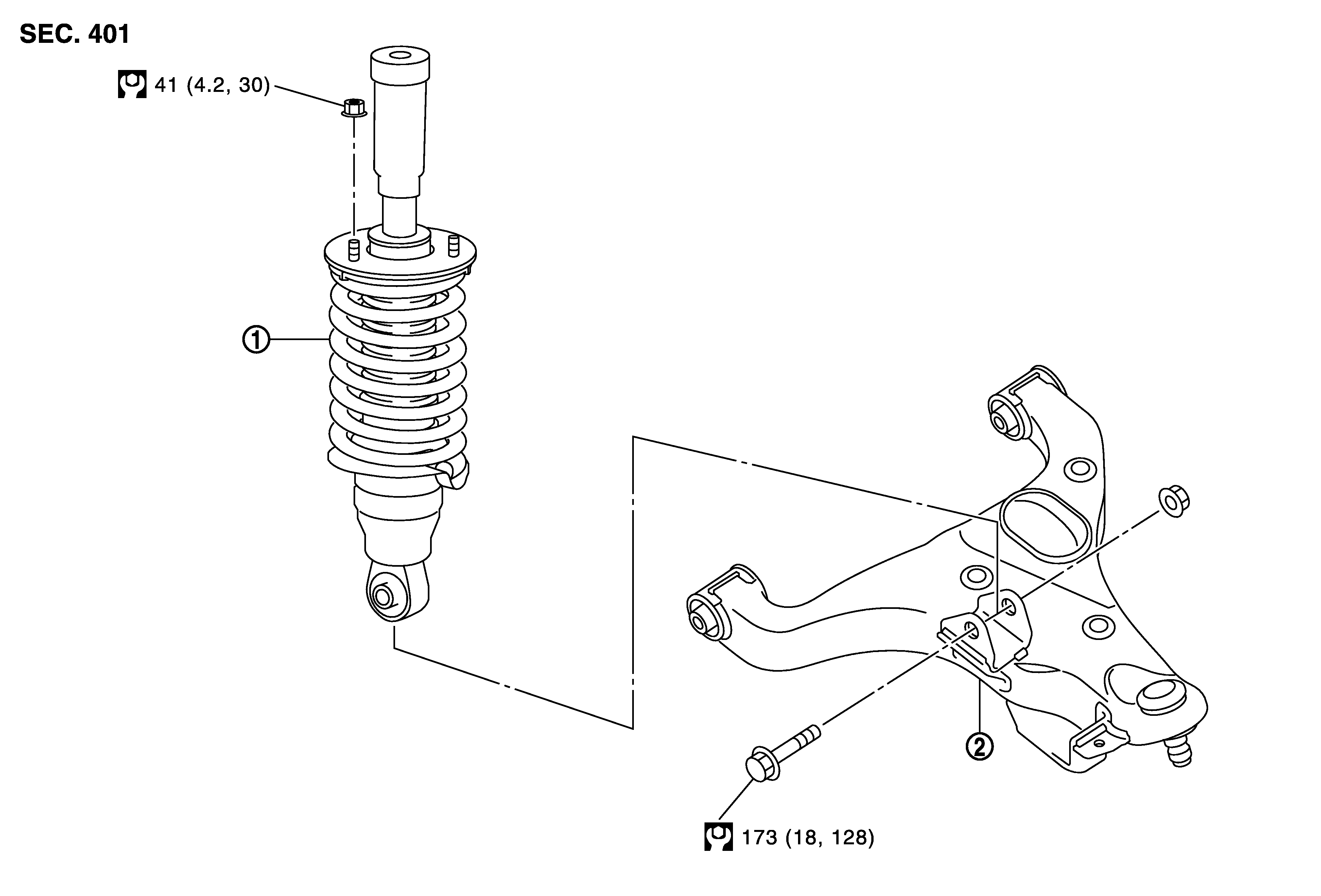

Fig 1: Exploded View Of Front Coil Spring & Shock Absorber With Torque Specifications (With HBMC)
GNSJPEIA0256GB-256Courtesy of NISSAN NORTH AMERICA, INC.
1. Shock absorber assembly 2. Lower link
Refer to COMPONENTS for symbols in the figure.
CAUTION:

The shock absorber assembly cannot be disassembled.
