Wiring Diagram - Consult/GST Checking System -

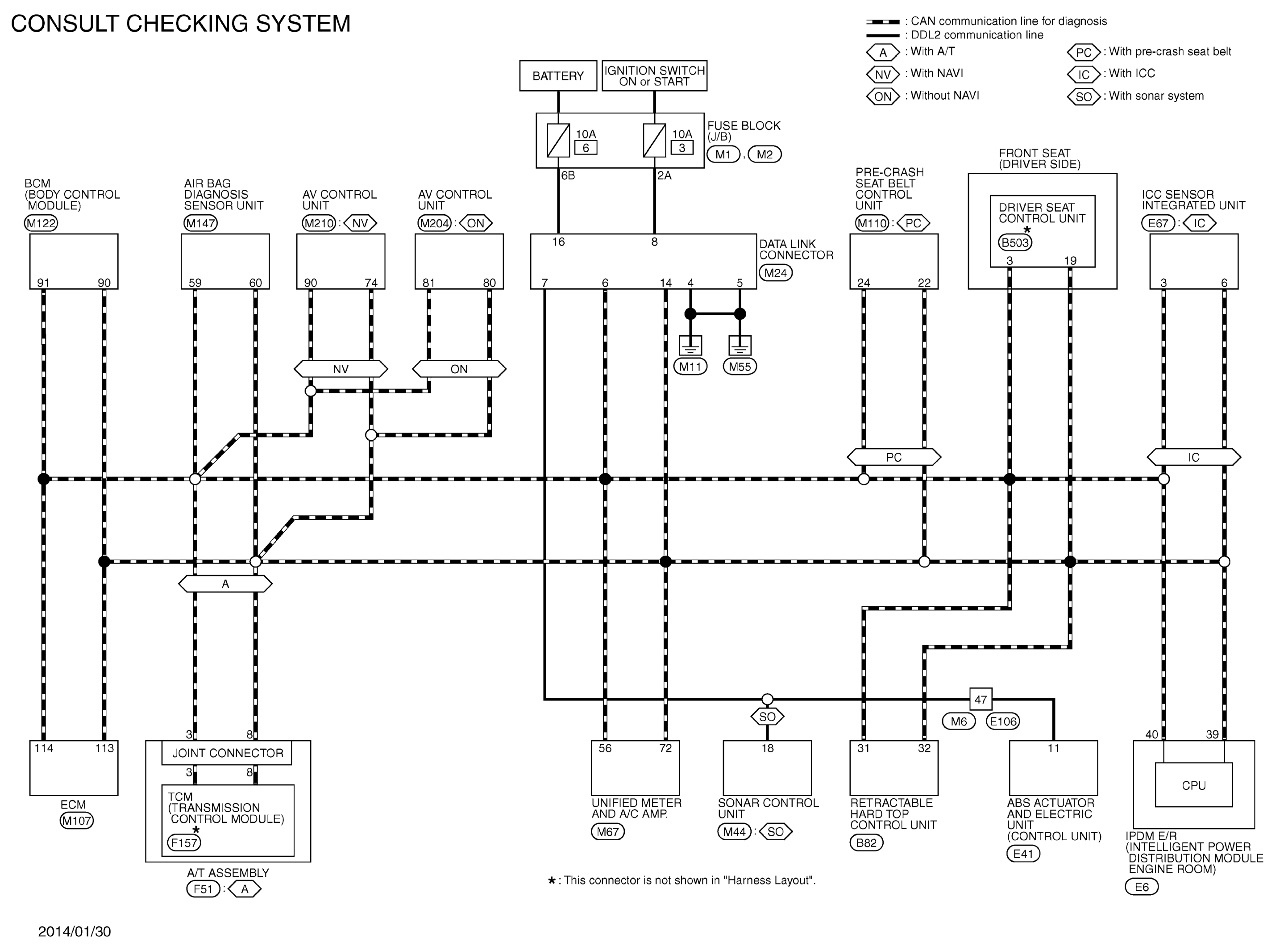

Fig 1: Consult/GST Checking System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
