Component Parts Location

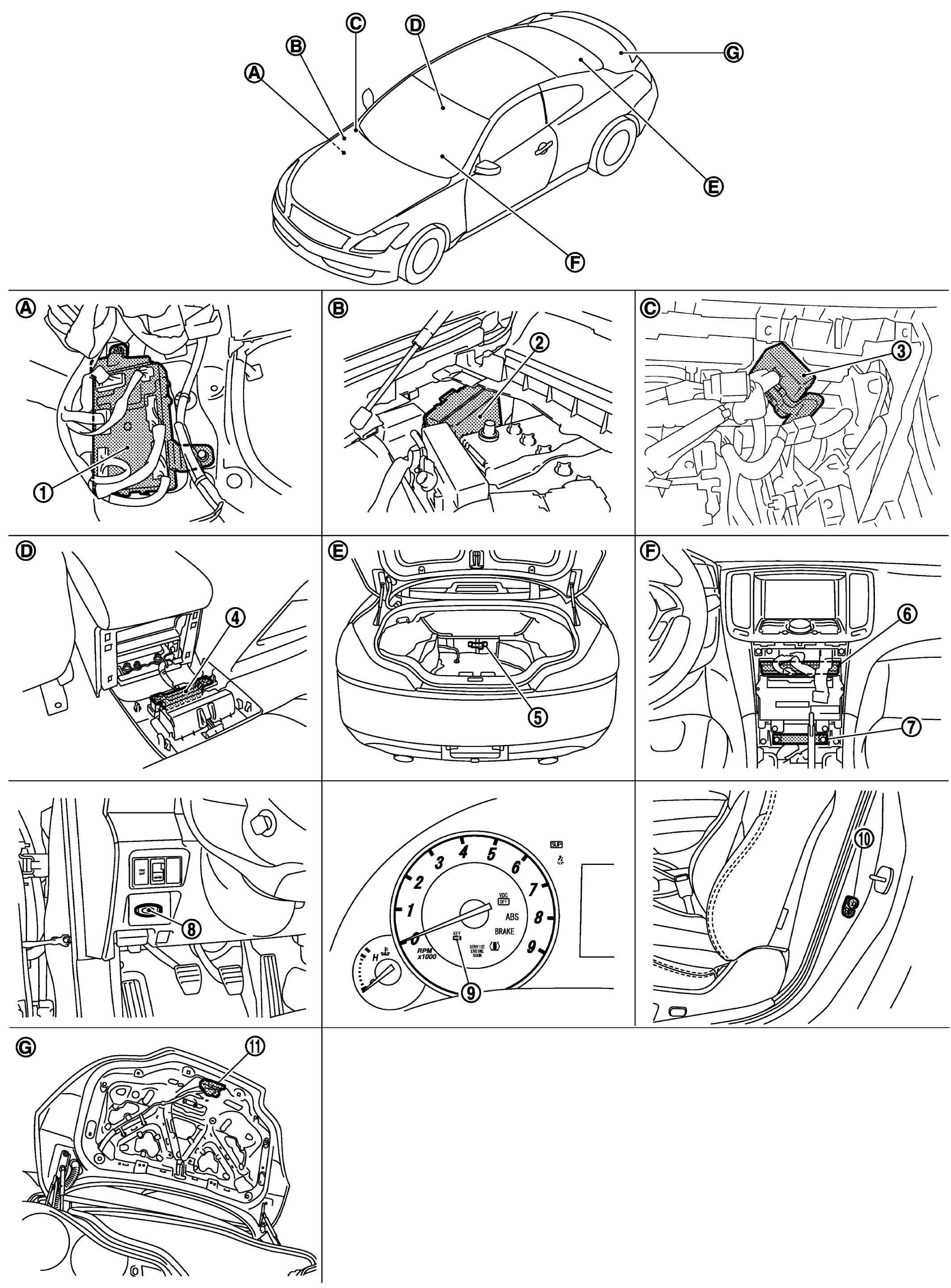

Fig 1: Intelligent Key System/Engine Start Function System Component Parts Location (1 Of 2)
GNSJMKIA3571ZZ-571Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M118, M119, M121, M122, M123 2. IPDM E/R E5, E6, E7 3. Remote keyless entry receiver M104
4. Inside key antenna (console) M146 5. Inside key antenna (trunk room) B49 6. Unified meter and A/C amp. M66, M67
7. Inside key antenna (instrument center) M131 8. Key slot M22 9. Combination meter (Key warning lamp) M53
10. Driver side door switch B16 11. Trunk lid lock assembly (trunk room lamp switch) B303
A. Dash side lower (Passenger side). B. Engine room dash panel (RH). C. View with instrument assist lower panel removed.
D. View with console rear finisher removed. E. View with trunk rear finisher (upper) removed. F. Behind cluster lid C.
G. View with trunk lid finisher removed.

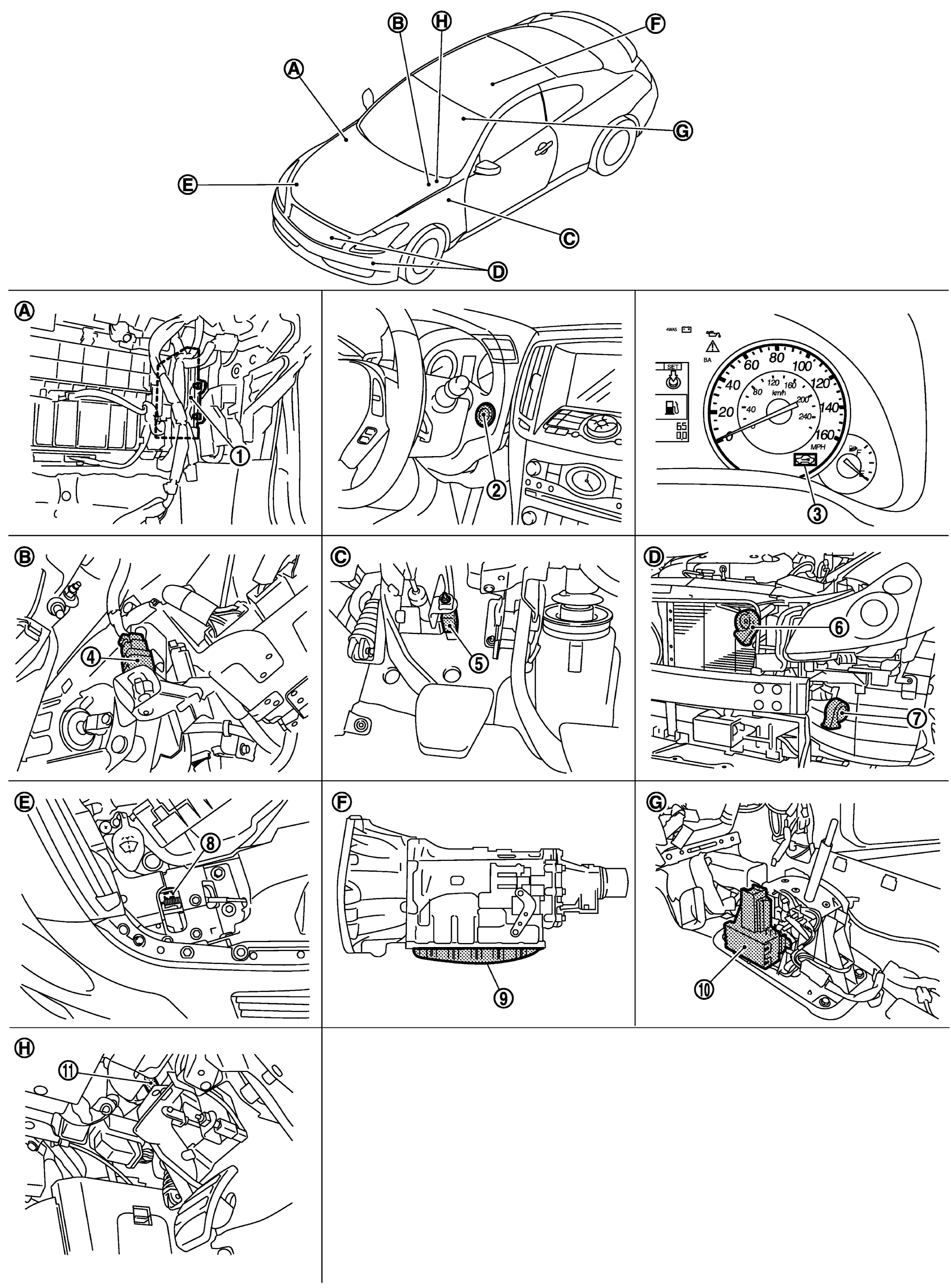

Fig 2: Intelligent Key System/Engine Start Function System Component Parts Location (2 Of 2)
GNSJMKIA3572ZZ-572Courtesy of NISSAN NORTH AMERICA, INC.
1. ECM M107 2. Push-button ignition switch M50 3. Combination meter (Security indicator) M53
4. Stop lamp switch E110 5. Clutch interlock switch E111 6. Horn (high) E61, E62
7. Horn (low) E69, E70 8. Hood switch E30 9. TCM F157
10. A/T shift selector (detention switch) M137 11. ASCD clutch switch E108
A. View with instrument assist lower panel removed. B. View with instrument driver lower cover removed. C. View with instrument driver lower cover removed.
D. View with front bumper removed. E. View with hood switch incorporated into hood lock (RH). F. Inside of A/T assembly (built into A/T assembly).
G. View with center console assembly removed H. View with instrument driver lower cover removed.
