Power Control System (Power Distribution System) (Coupe)
>>
DTC/Circuit Diagnosis
>>
Power Distribution System
>>
PDS (Power Distribution System) Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
PDS (Power Distribution System) Connector End Views

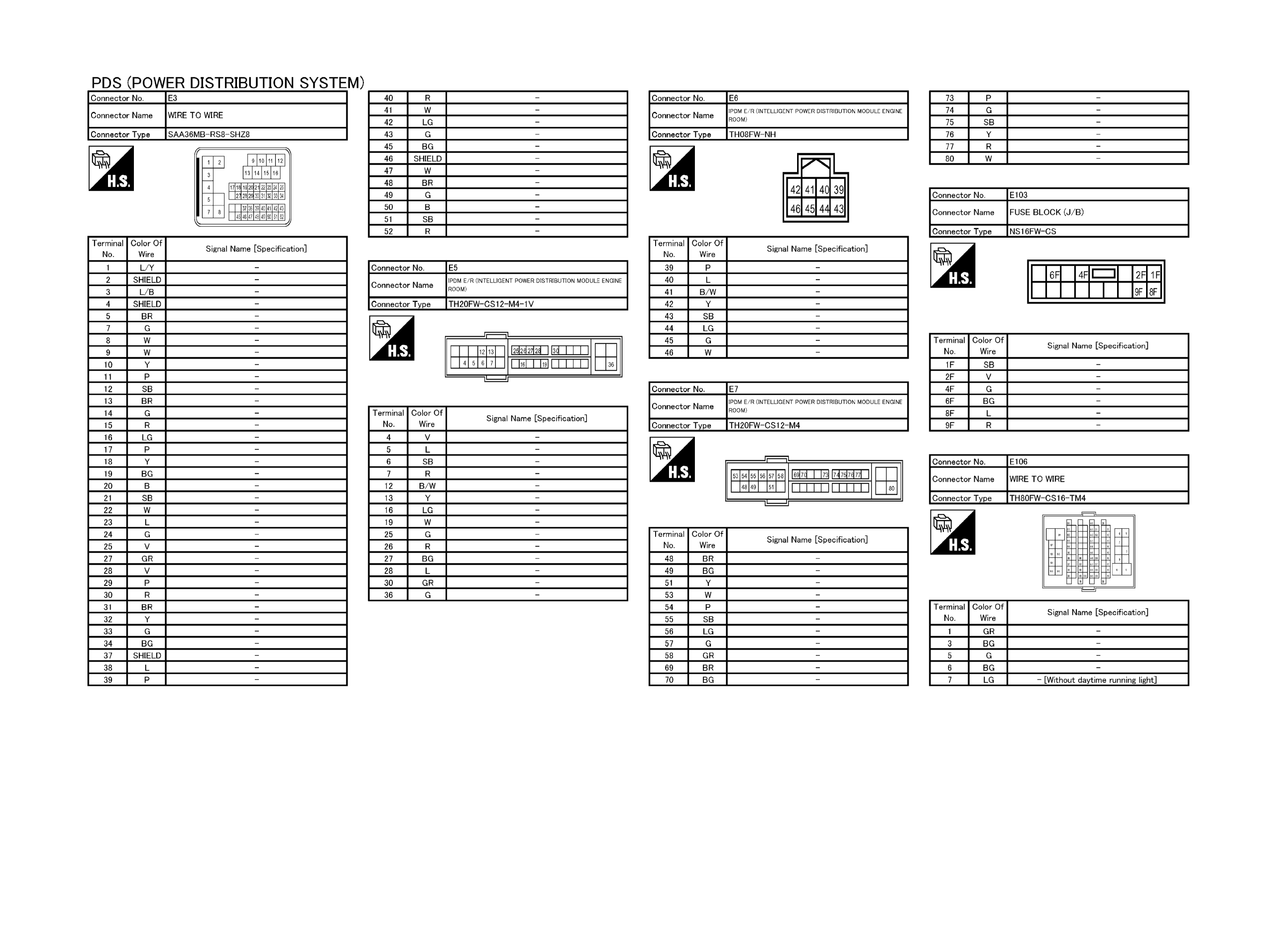

Fig 1: PDS (Power Distribution System) Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

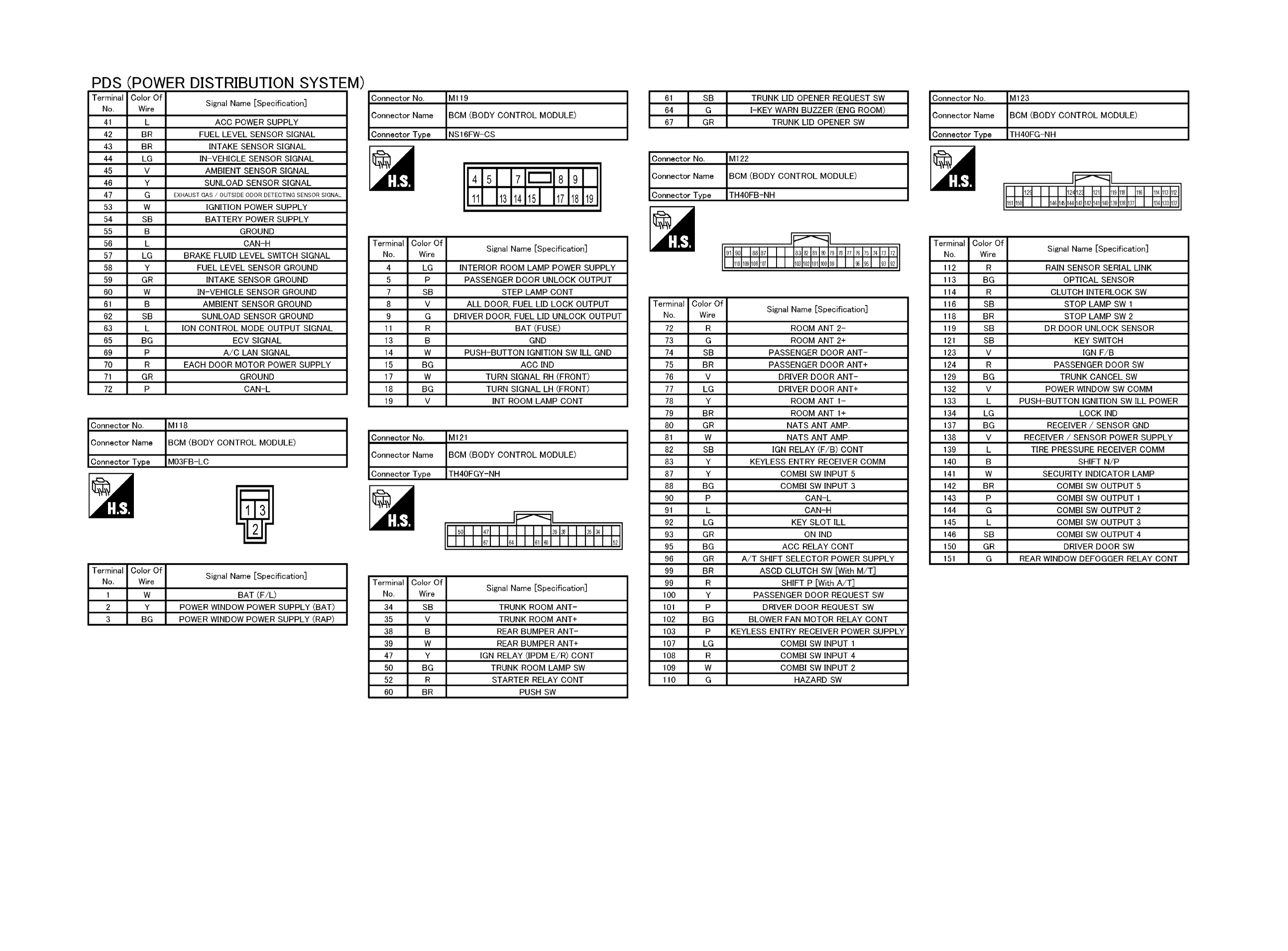

Fig 2: PDS (Power Distribution System) Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

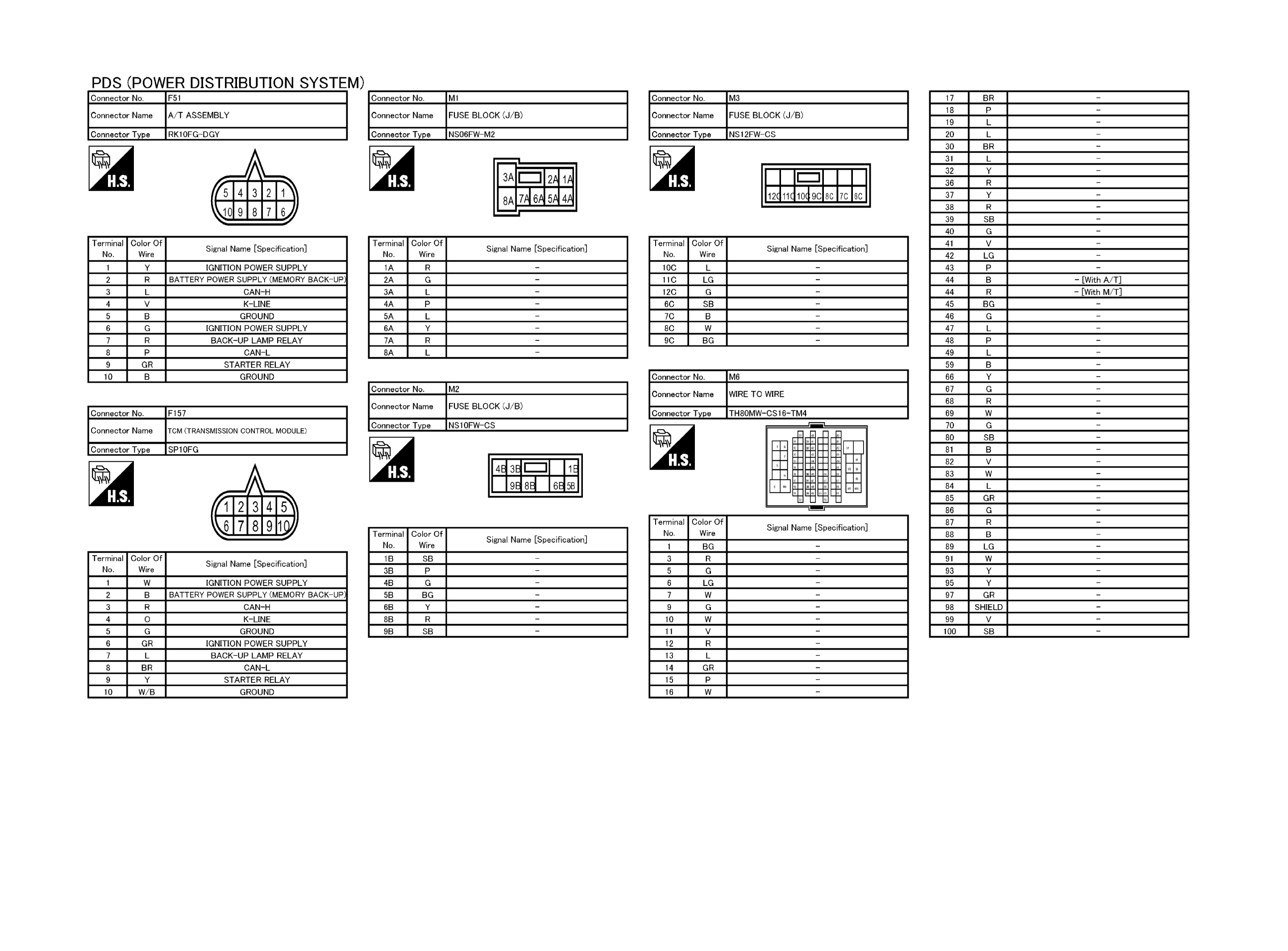

Fig 3: PDS (Power Distribution System) Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

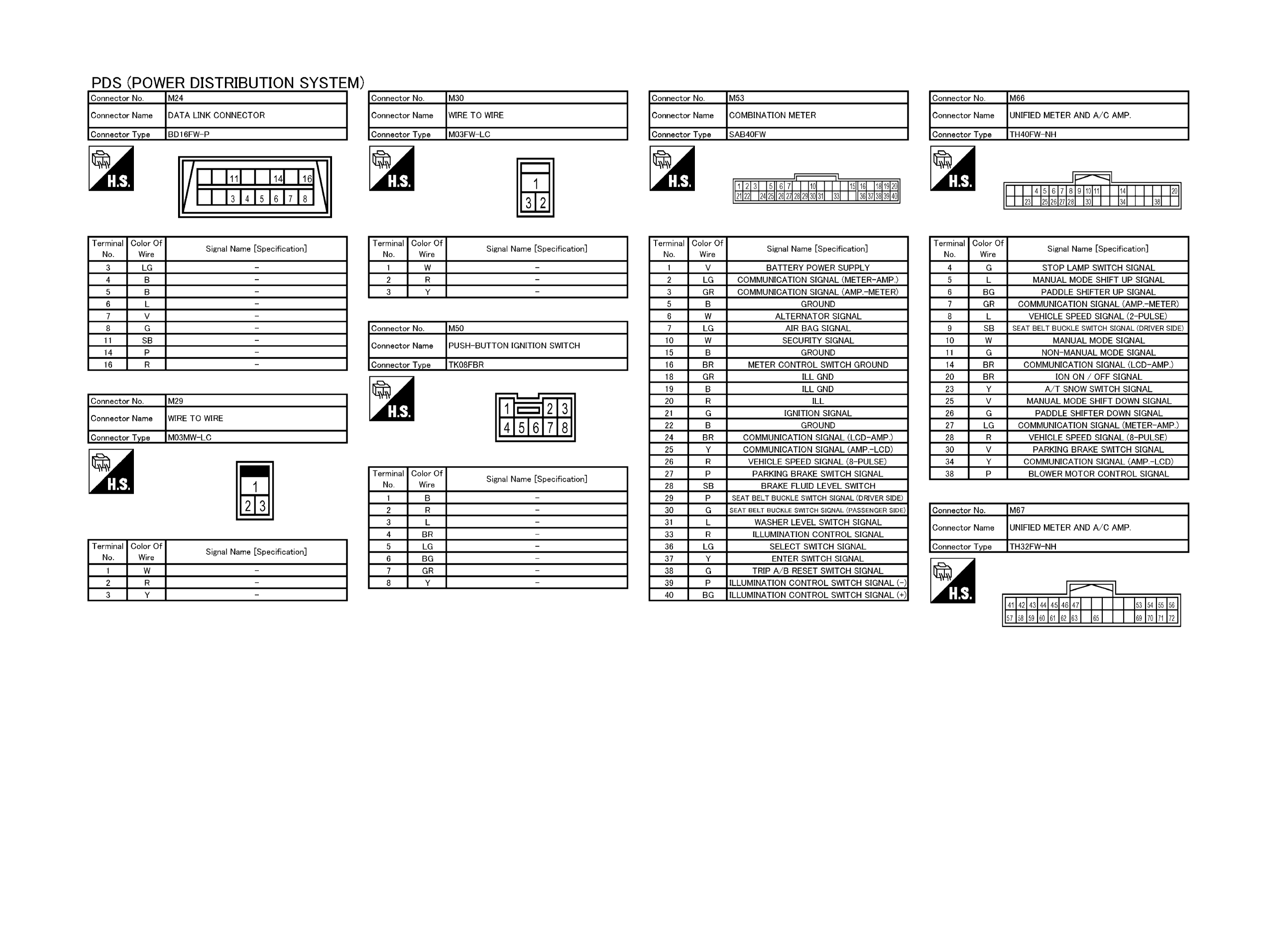

Fig 4: PDS (Power Distribution System) Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

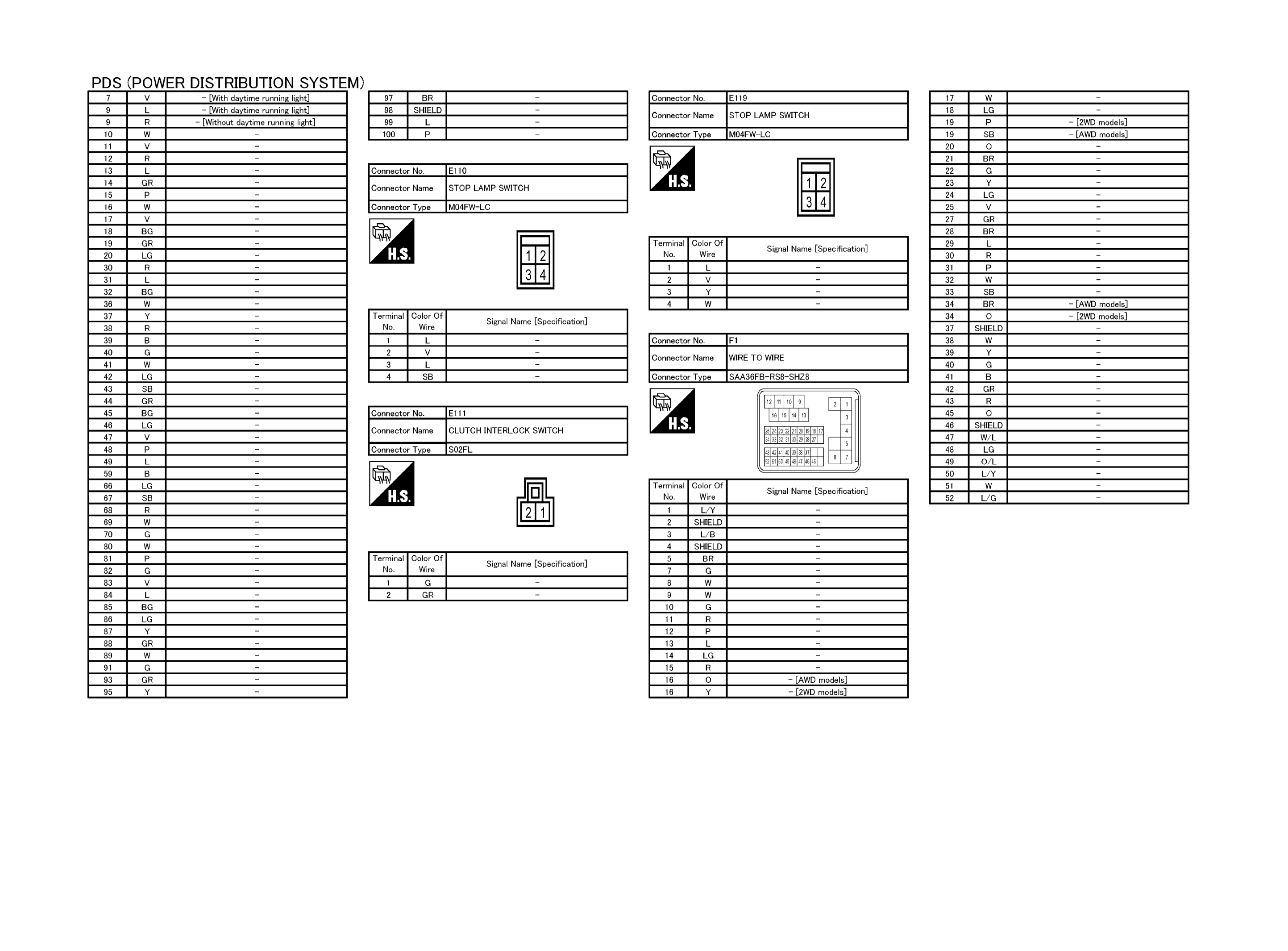

Fig 5: PDS (Power Distribution System) Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
