Steering Control System (Vehicle Speed Sensitive P/S) (Exc Hybrid)
>>
System Description
>>
System
>>
Electronically Controlled Power Steering System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

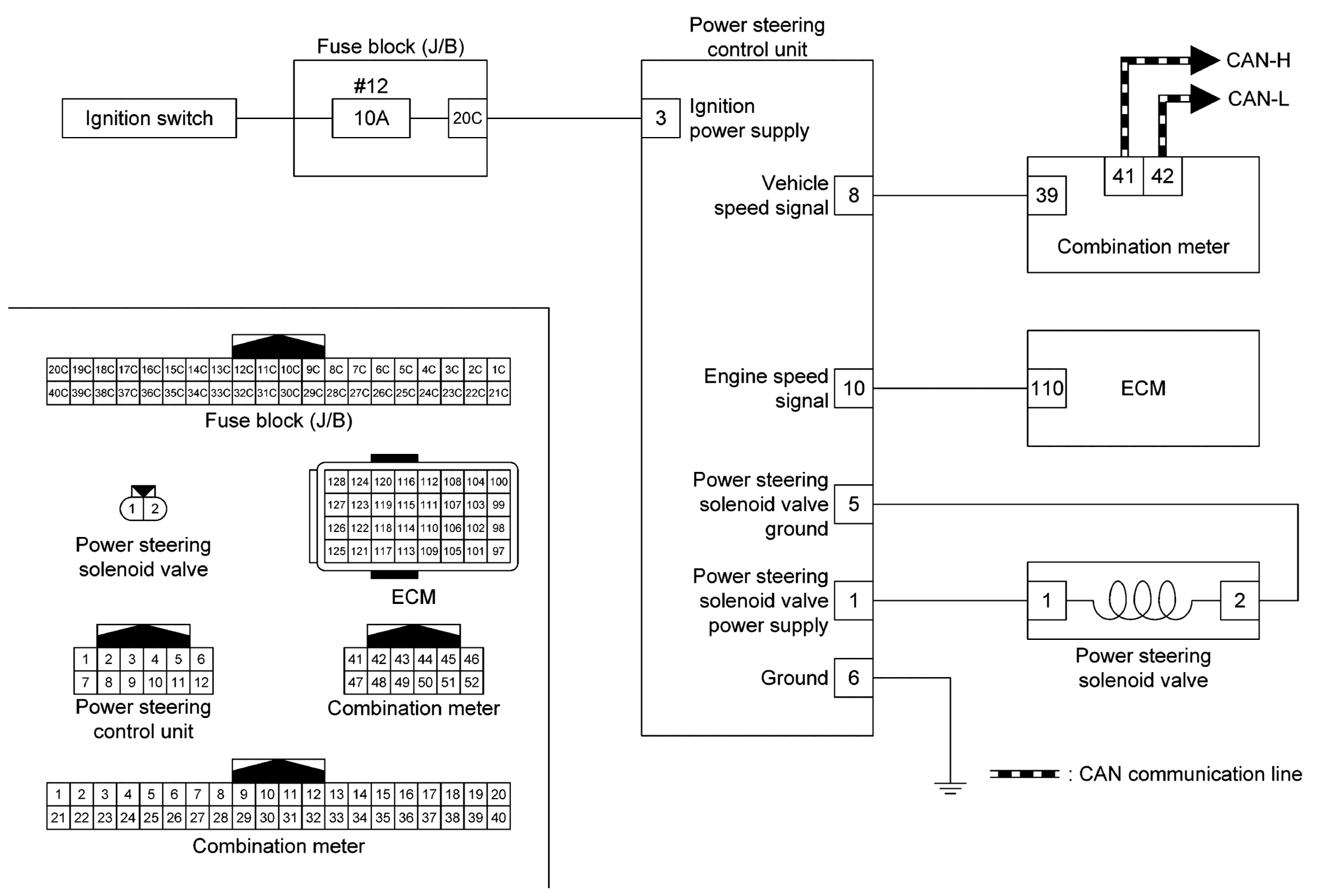

Fig 1: Power Steering Control Unit Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
