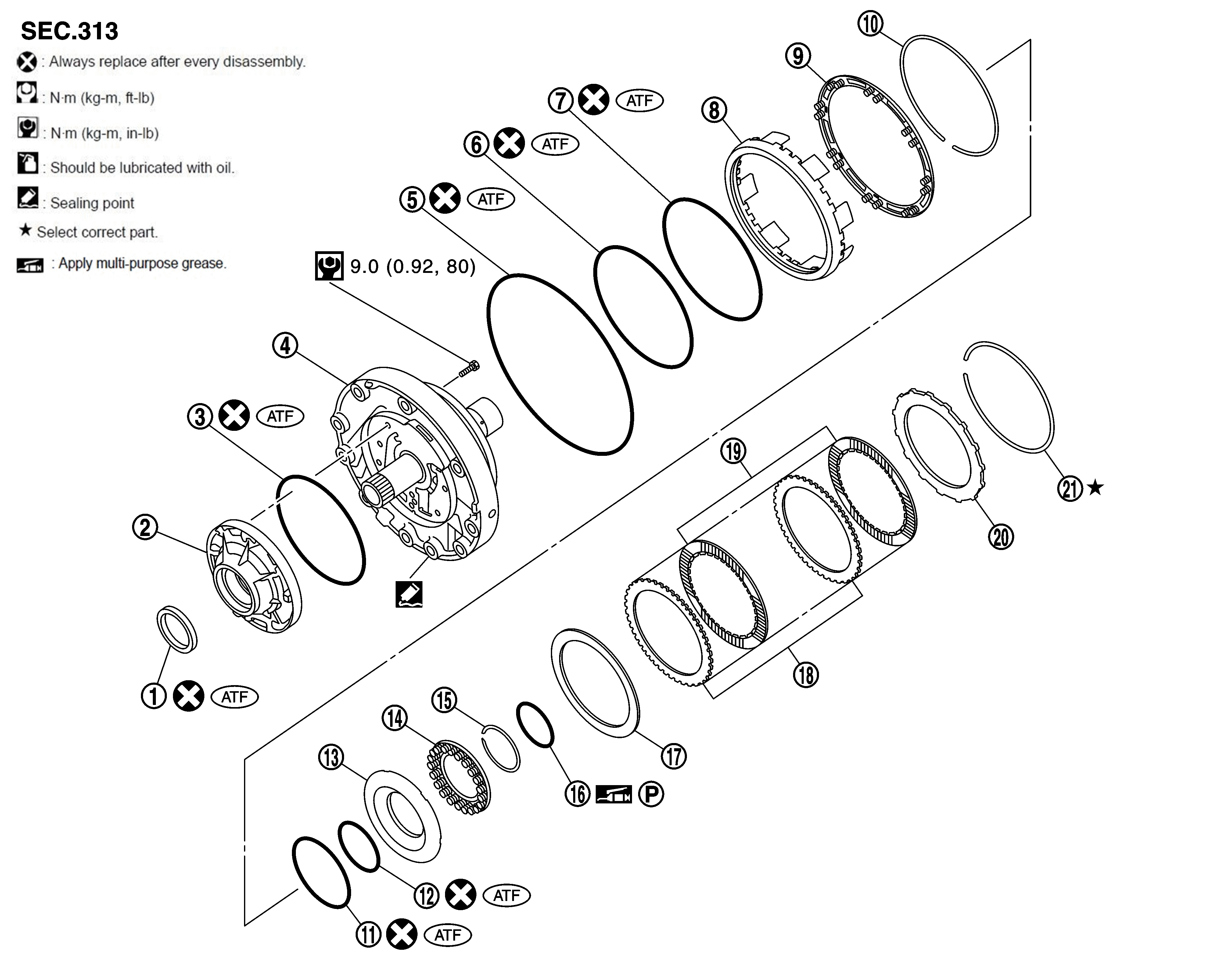

Exploded View With Torque Specifications
| 1. | Oil pump housing oil seal | 2. | Oil pump housing | 3. | O-ring |
| 4. | Oil pump cover | 5. | O-ring | 6. | D-ring |
| 7. | D-ring | 8. | Front brake piston | 9. | Front brake spring retainer |
| 10. | Snap ring | 11. | D-ring | 12. | D-ring |
| 13. | 2346 brake piston | 14. | 2346 brake spring retainer | 15. | Snap ring |
| 16. | Seal ring | 17. | 2346 brake dish plate | 18. | 2346 brake driven plate |
| 19. | 2346 brake drive plate | 20. | 2346 brake retaining plate | 21. | Snap ring |
| : Apply Genuine RTV silicone sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS . | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
