Exploded View With Torque Specifications

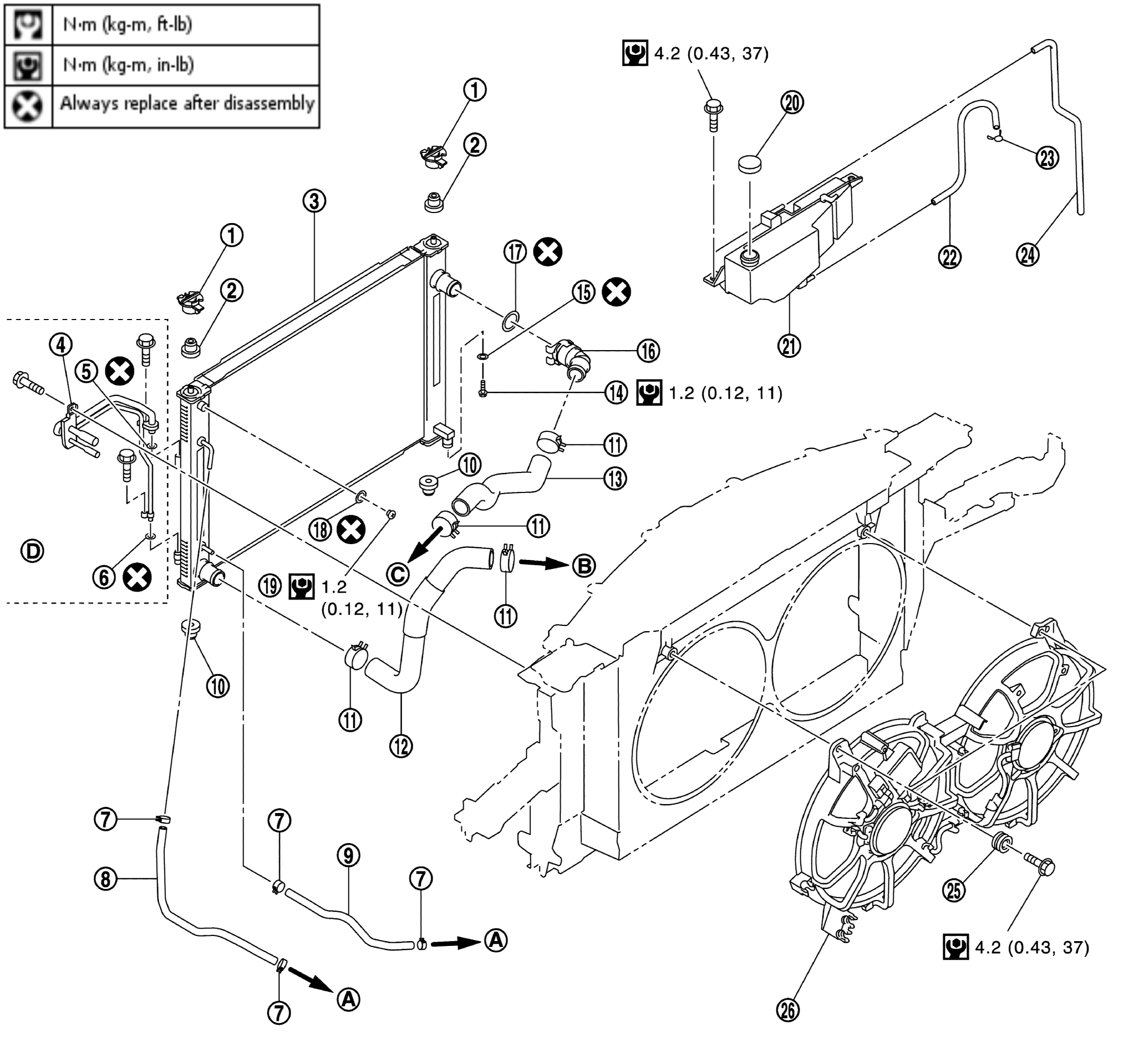

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper mount bracket	2.	Mounting rubber (upper)	3.	Radiator & condenser assembly
4.	Condenser pipe assembly	5.	O - ring	6.	O - ring
7.	Clamp	8.	A/T fluid cooler hose	9.	A/T fluid cooler hose
10.	Mounting rubber (lower)	11.	Clamp	12.	Radiator hose (lower)
13.	Radiator hose (Upper)	14.	Drain plug	15.	O - ring
16.	Radiator water inlet pipe	17.	O - ring	18.	O - ring
19.	Air relief plug	20.	Reservoir tank cap	21.	Reservoir tank
22.	Reservoir tank hose	23.	Clamp	24.	Reservoir tank hose
25.	Grommet	26.	Radiator cooling fan assembly
A.	To transmission	B.	To water inlet and thermostat assembly	C.	To water outlet
D.	Refer to EXPLODED VIEW
Refer to COMPONENTS for symbols in the figure.
