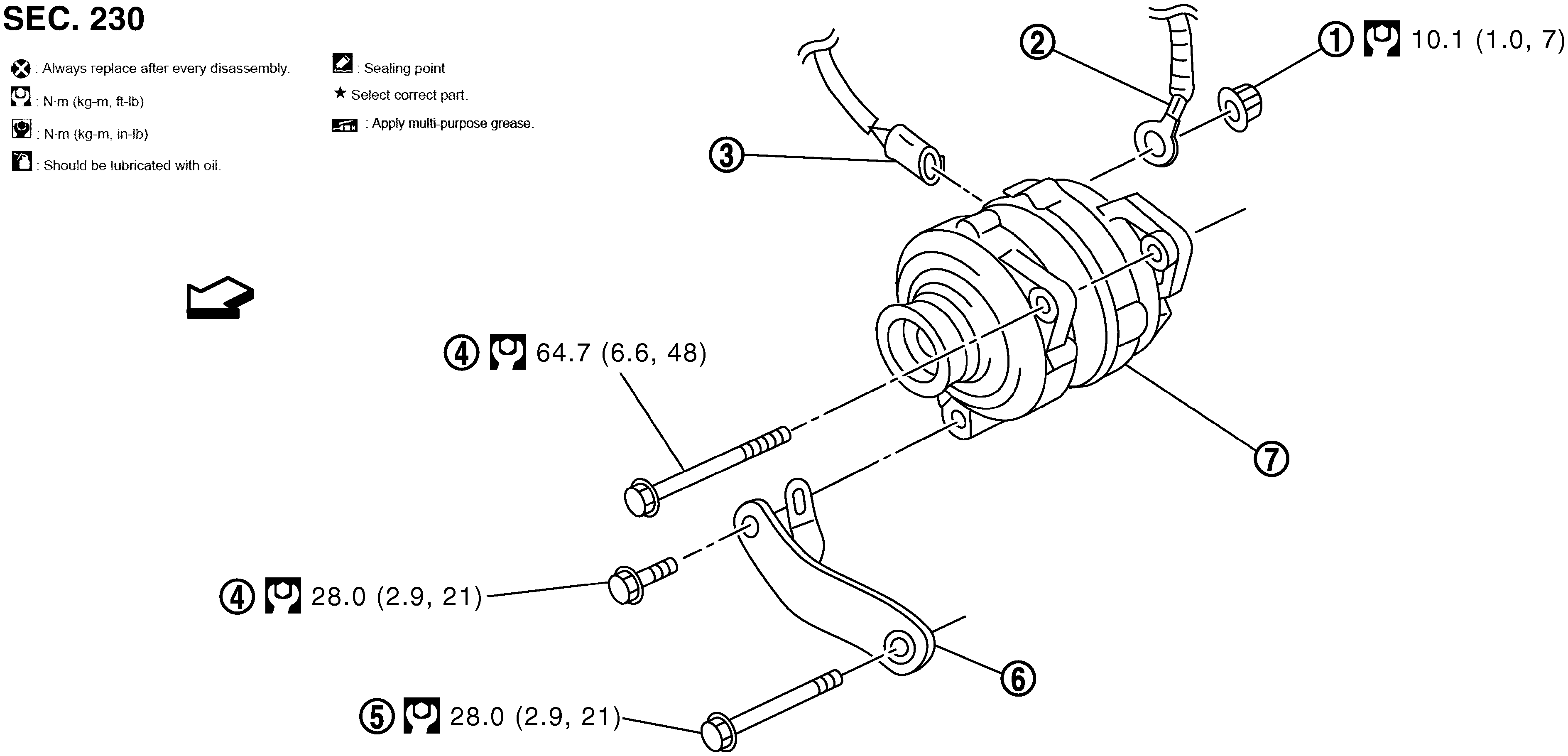

Exploded View With Torque Specifications: Removal
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
"B" terminal nut |
2. |
"B" terminal harness |
3. |
Alternator connector |
| 4. |
Alternator mounting bolt |
5. |
Alternator stay mounting bolt |
6. |
Alternator stay |
| 7. |
Alternator |
|
|
|
|
| |
: Engine front |
| |
: N•m (kg - m, ft - lb) |
