Power Window Control System Wiring Diagram

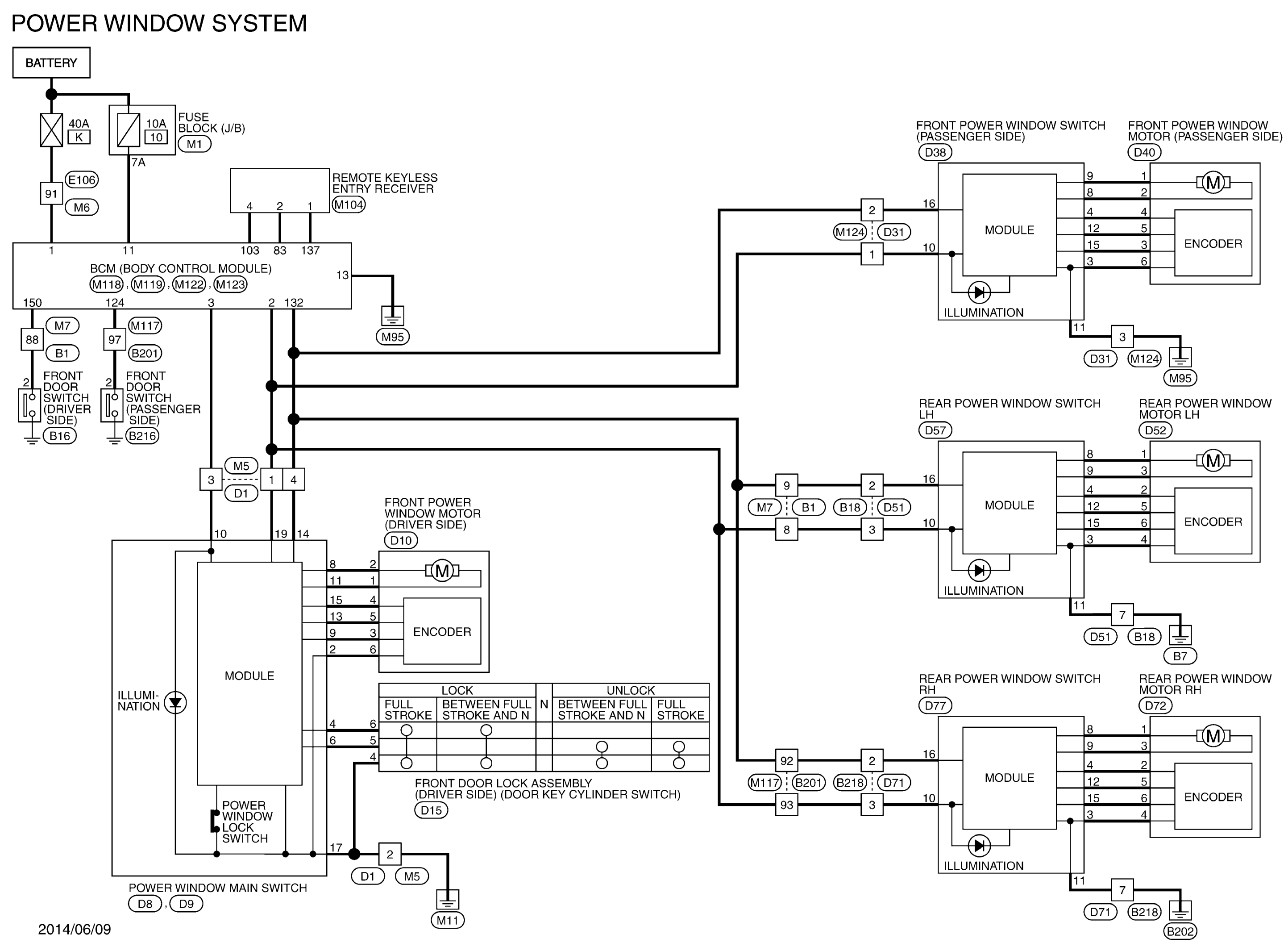

Fig 1: Power Window Control System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
