BCM Connectors

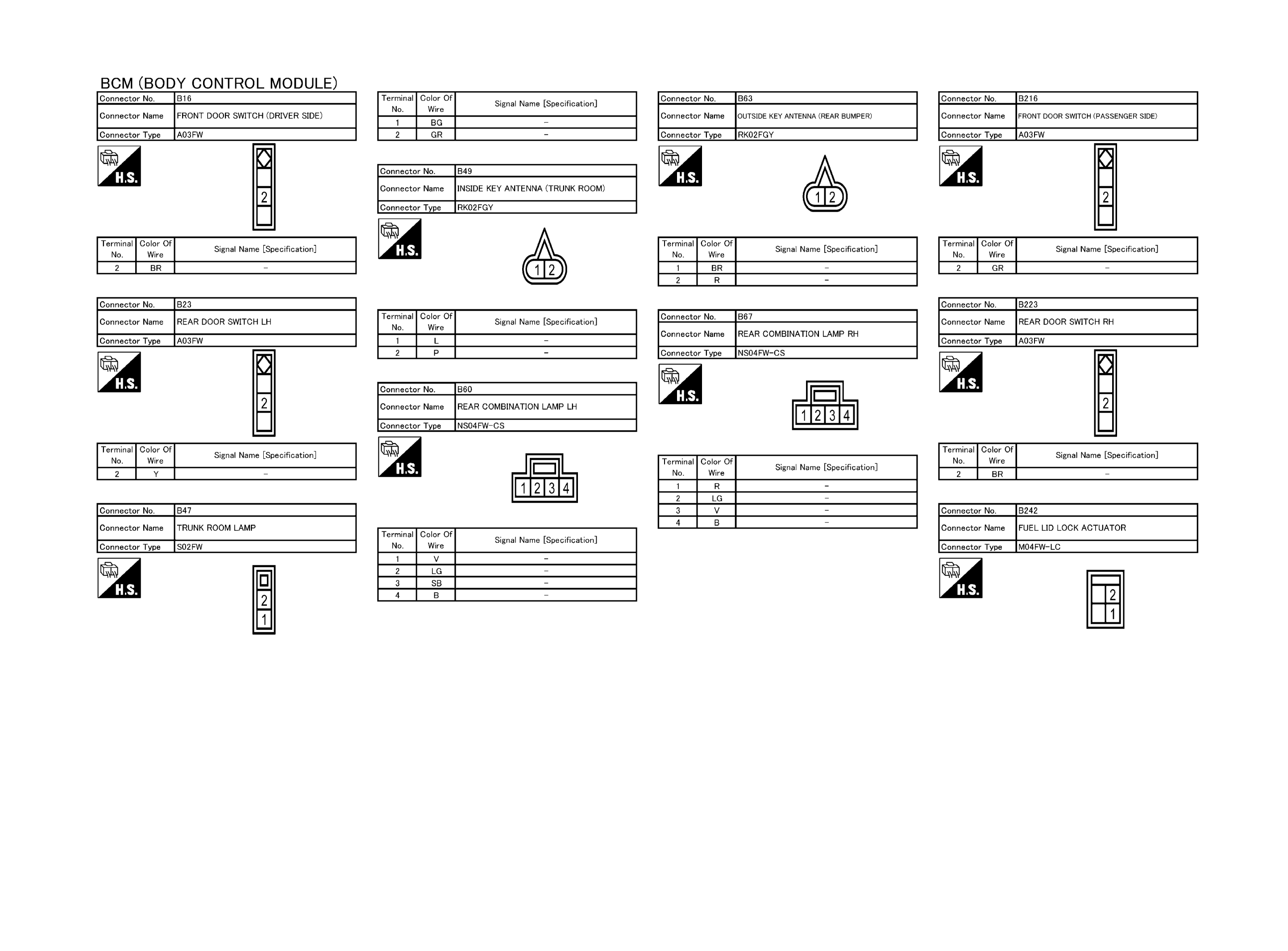

Fig 1: BCM Connectors (1 Of 9)

GNSJRMWF9505GB-505

Courtesy of NISSAN NORTH AMERICA, INC.

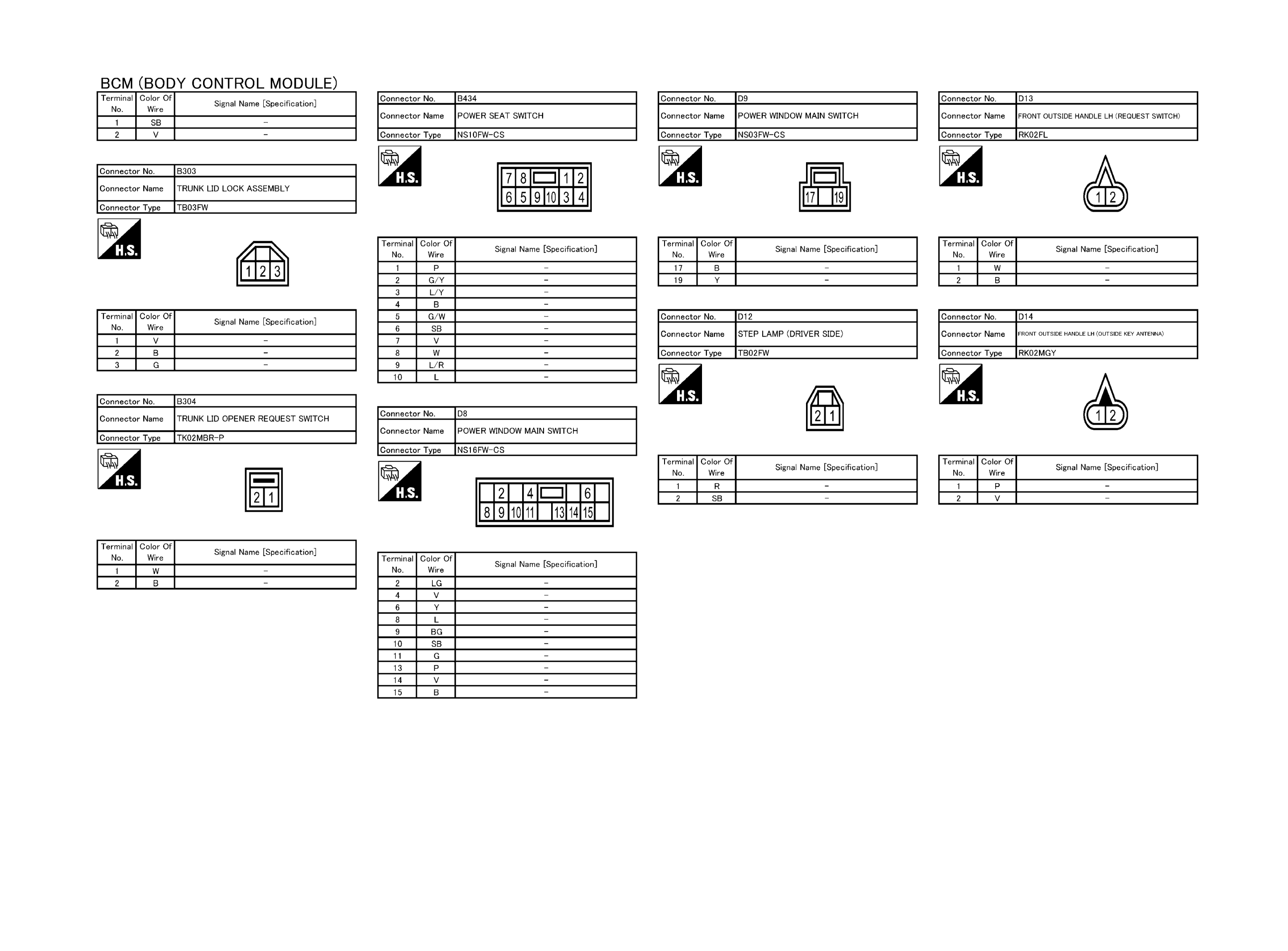

Fig 2: BCM Connectors (2 Of 9)

GNSJRMWF9506GB-506

Courtesy of NISSAN NORTH AMERICA, INC.

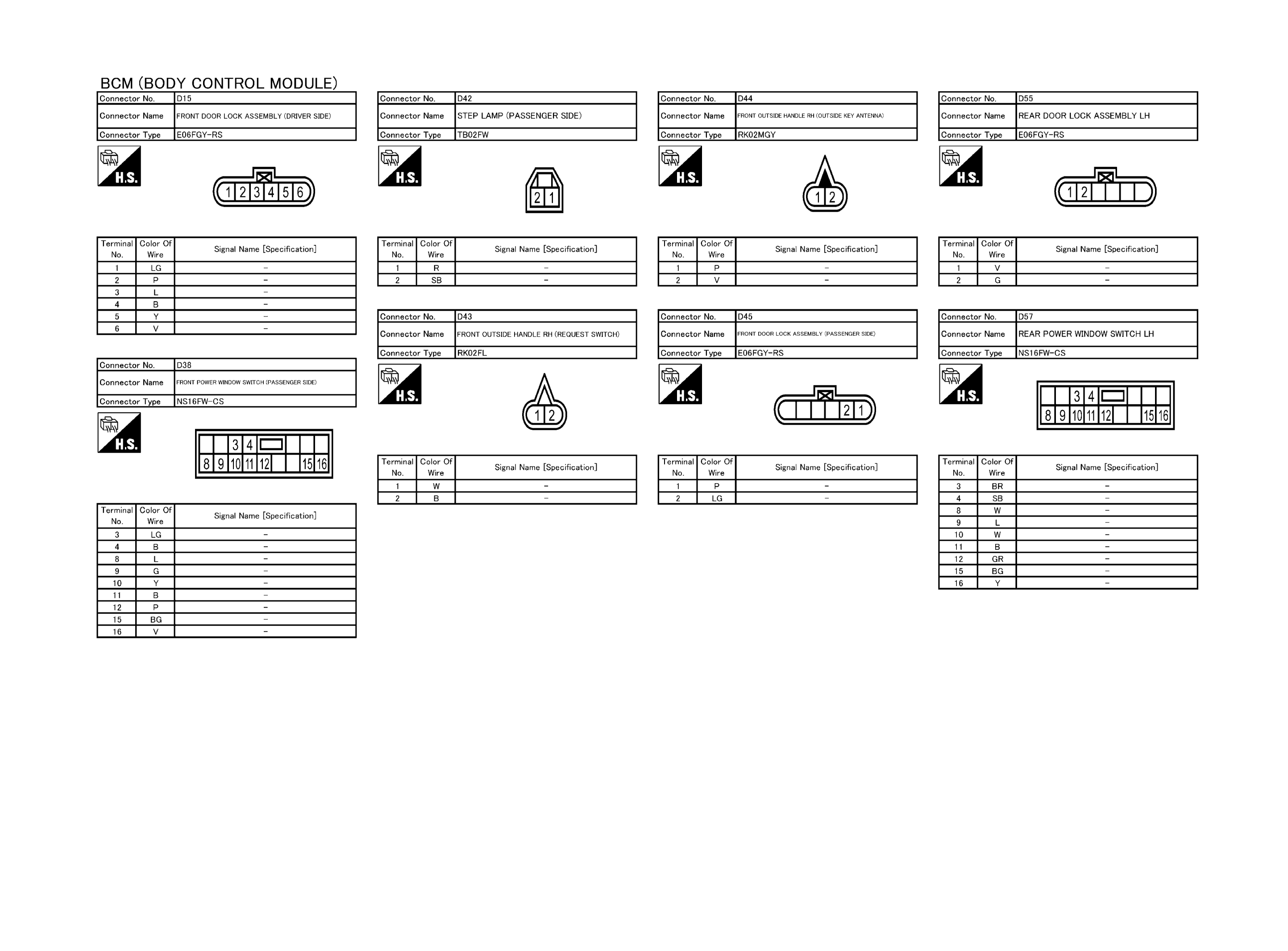

Fig 3: BCM Connectors (3 Of 9)

GNSJRMWF9507GB-507

Courtesy of NISSAN NORTH AMERICA, INC.

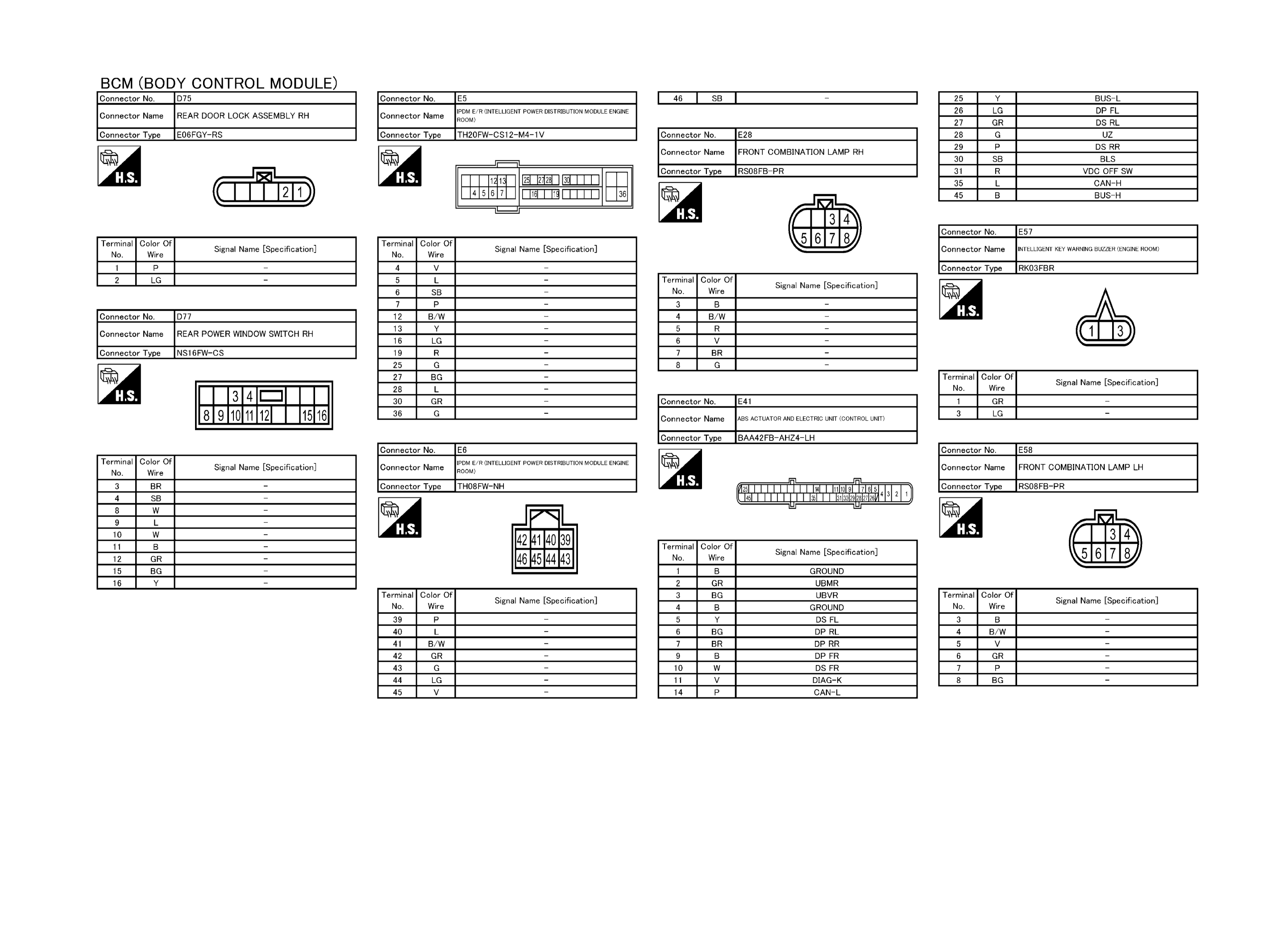

Fig 4: BCM Connectors (4 Of 9)

GNSJRMWF9508GB-508

Courtesy of NISSAN NORTH AMERICA, INC.

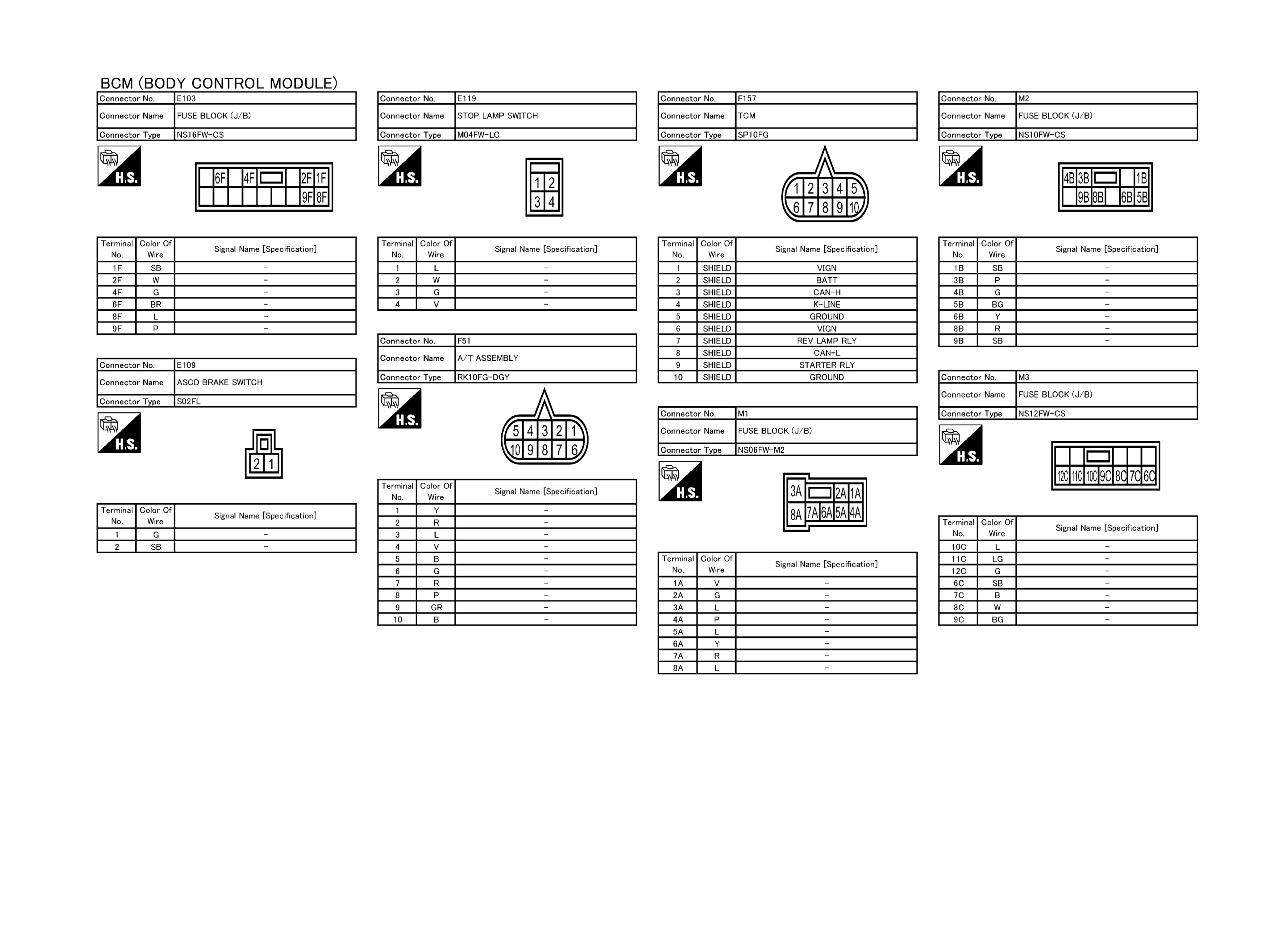

Fig 5: BCM Connectors (5 Of 9)

GNSJRMWF9509GB-509

Courtesy of NISSAN NORTH AMERICA, INC.

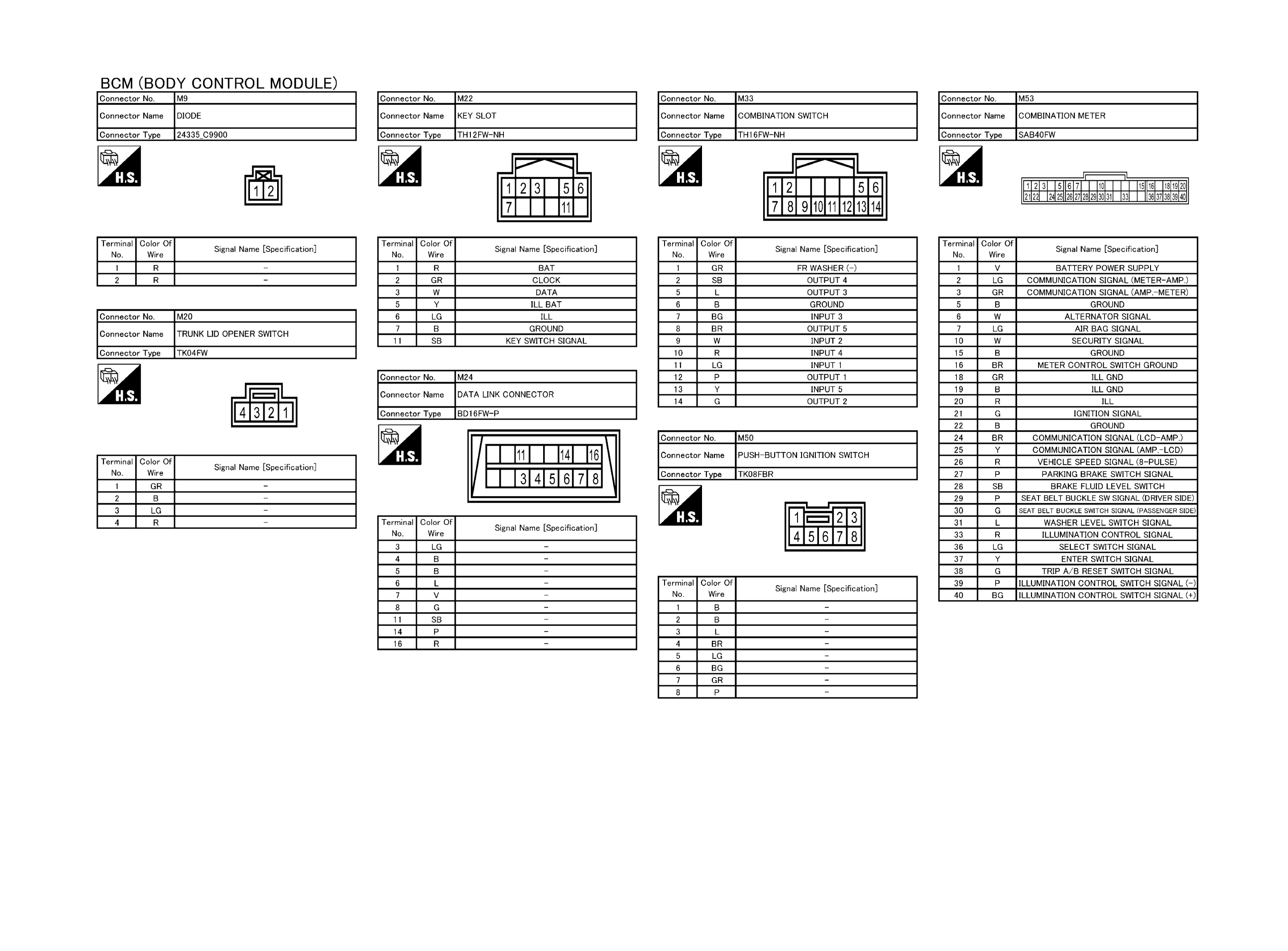

Fig 6: BCM Connectors (6 Of 9)

GNSJRMWF9510GB-510

Courtesy of NISSAN NORTH AMERICA, INC.

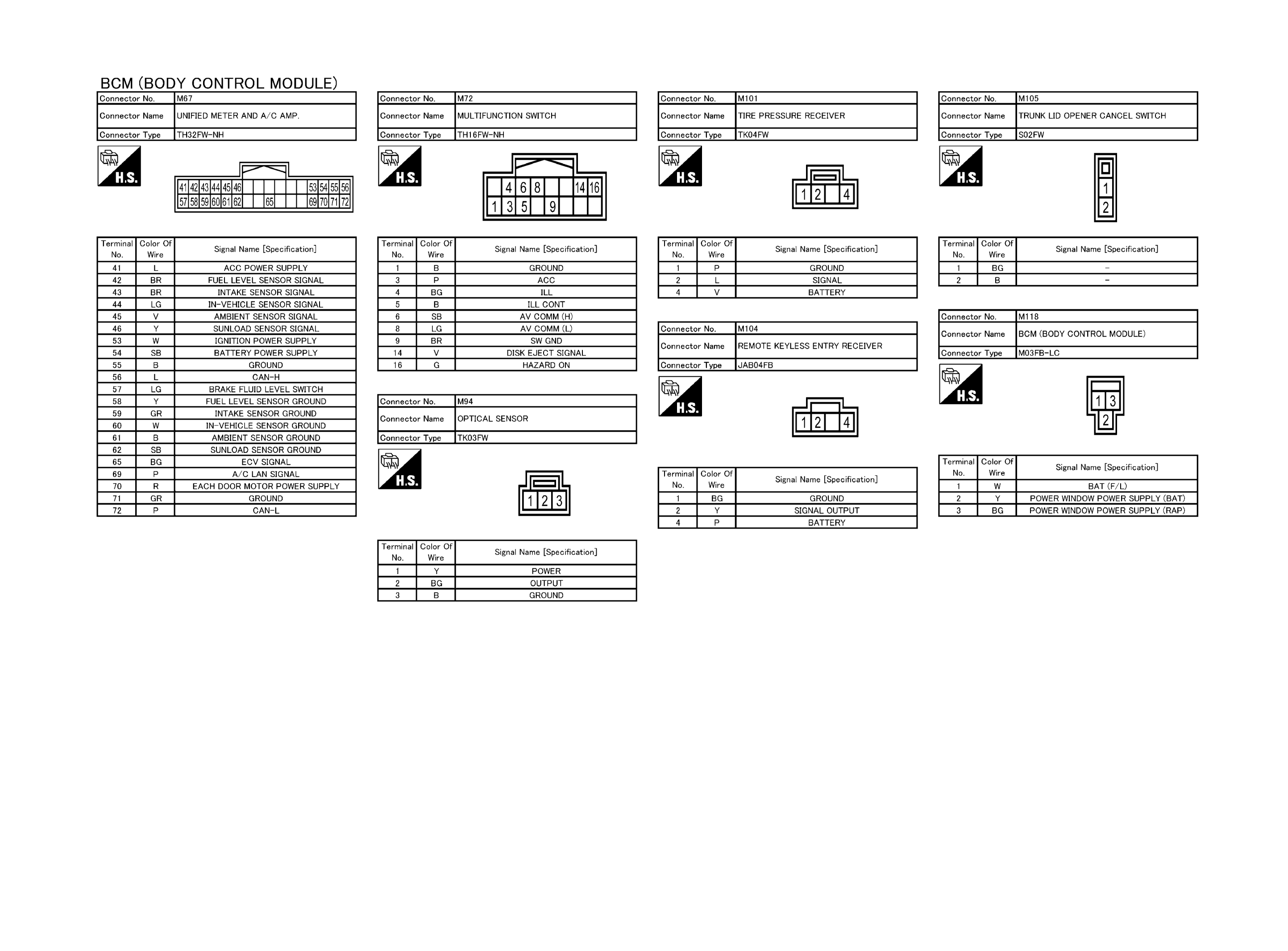

Fig 7: BCM Connectors (7 Of 9)

GNSJRMWF9511GB-511

Courtesy of NISSAN NORTH AMERICA, INC.

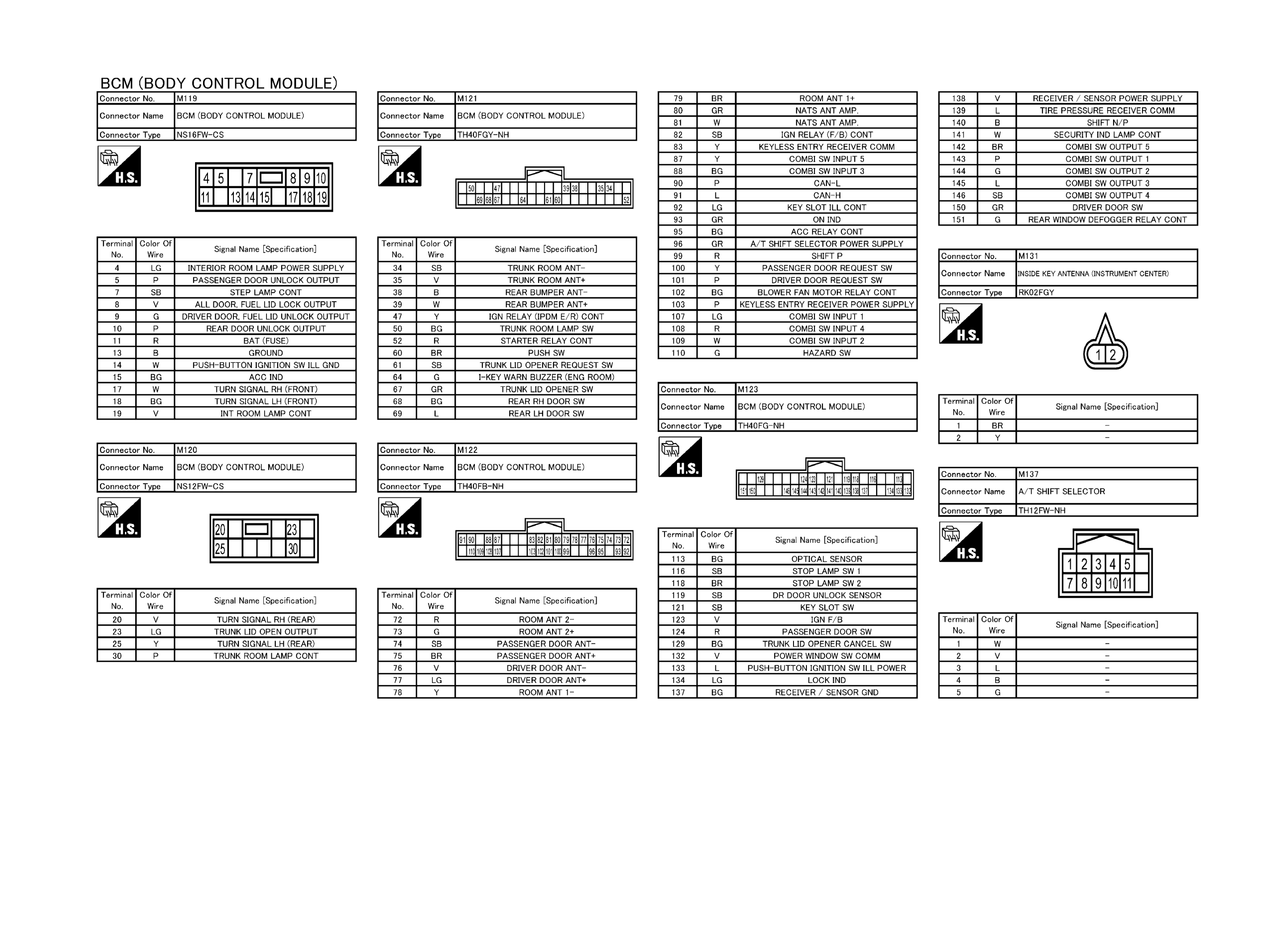

Fig 8: BCM Connectors (8 Of 9)

GNSJRMWF9512GB-512

Courtesy of NISSAN NORTH AMERICA, INC.

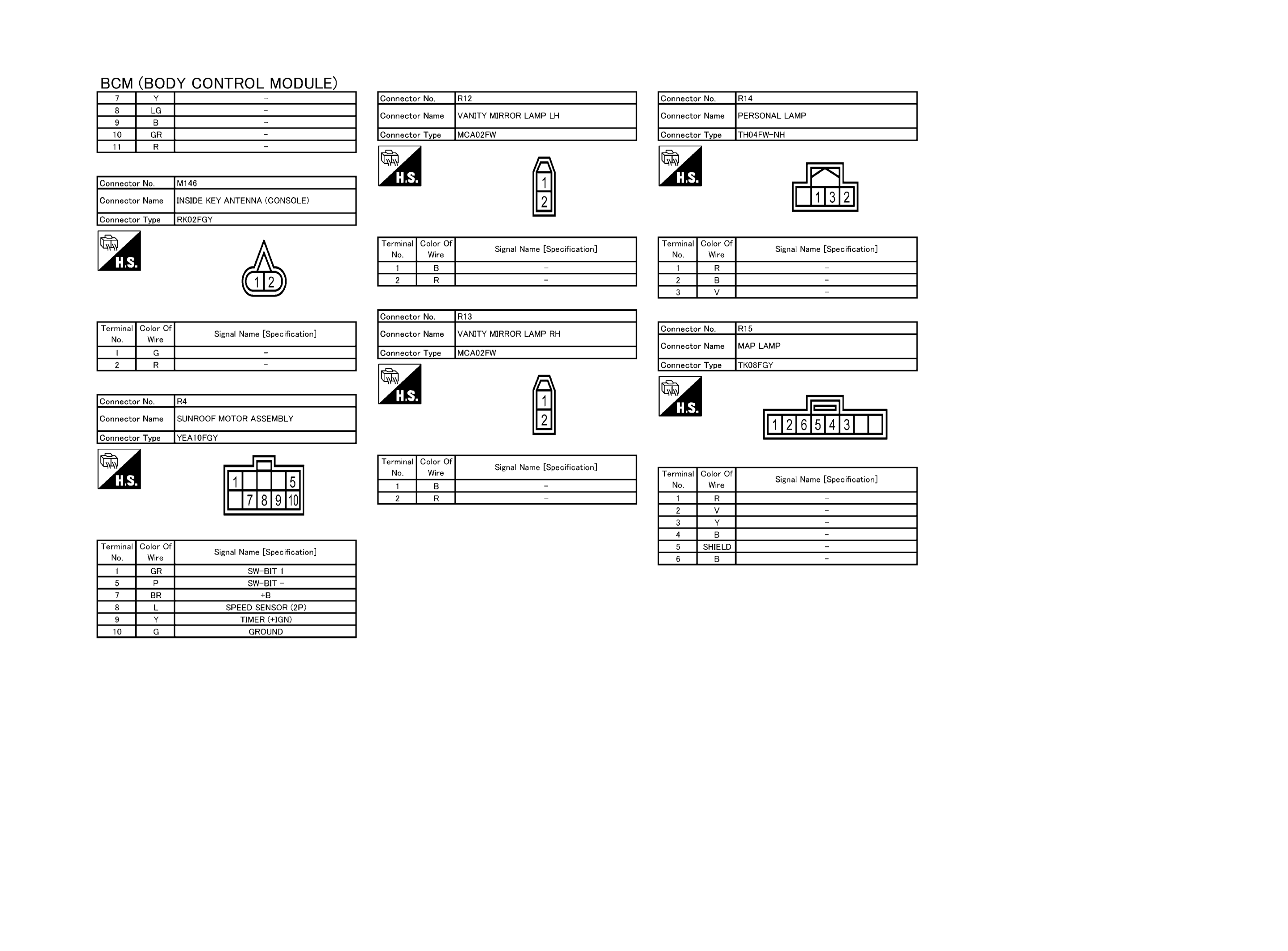

Fig 9: BCM Connectors (9 Of 9)

GNSJRMWF9513GB-513

Courtesy of NISSAN NORTH AMERICA, INC.
