Fuse Block (J/B) Connector End View (Fuse7)

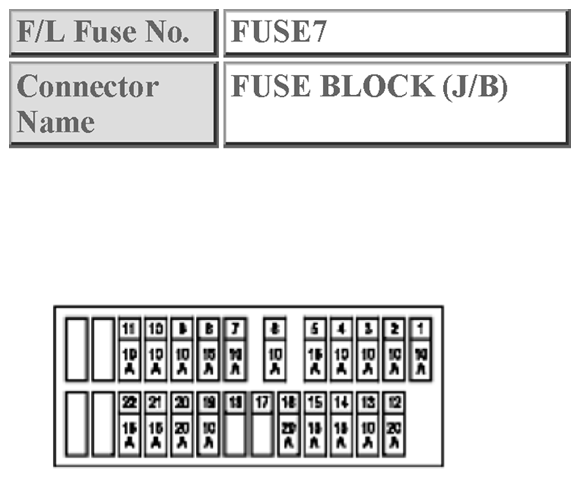

Fig 1: Fuse Block (J/B) Connector End View (Fuse7)
G10440748Courtesy of NISSAN NORTH AMERICA, INC.
