Exploded View

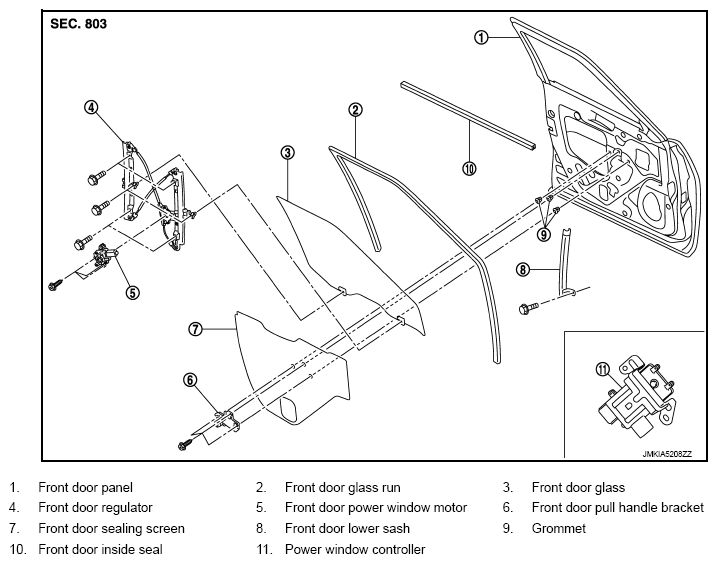

Fig 1: Identifying Exploded View Of Front Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
