2014
>>
QX50 Base, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (VDC/TCS/Abs)
>>
Removal And Installation
>>
Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

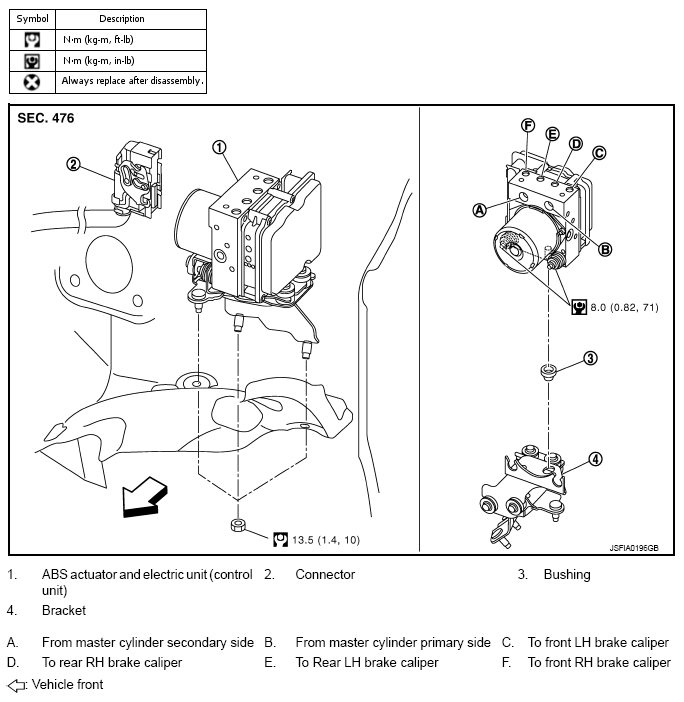

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications (Control Unit)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbol marks in the figure.
