Exploded View

WARNING: This page is about a different variant/trim than selected.

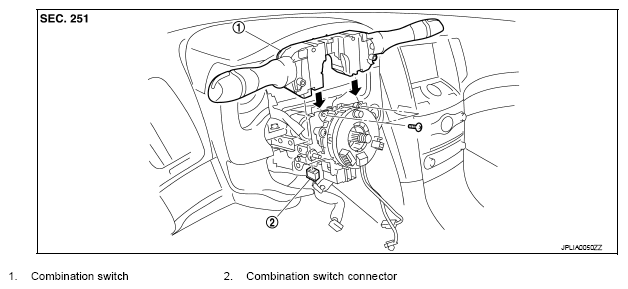

Fig 1: Exploded View Of Combination Switch
G09468043Courtesy of NISSAN NORTH AMERICA, INC.
