Infiniti
>>
2014
>>
Q60 Journey
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering Control System (Coupe)
>>
System Description
>>
EPS System
>>
System Diagram
>>
Control Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Diagram

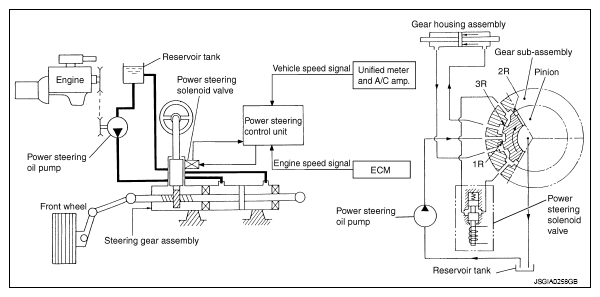

Fig 1: EPS System Control Operation Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
