SRS Air Bag Control System Connector End Views

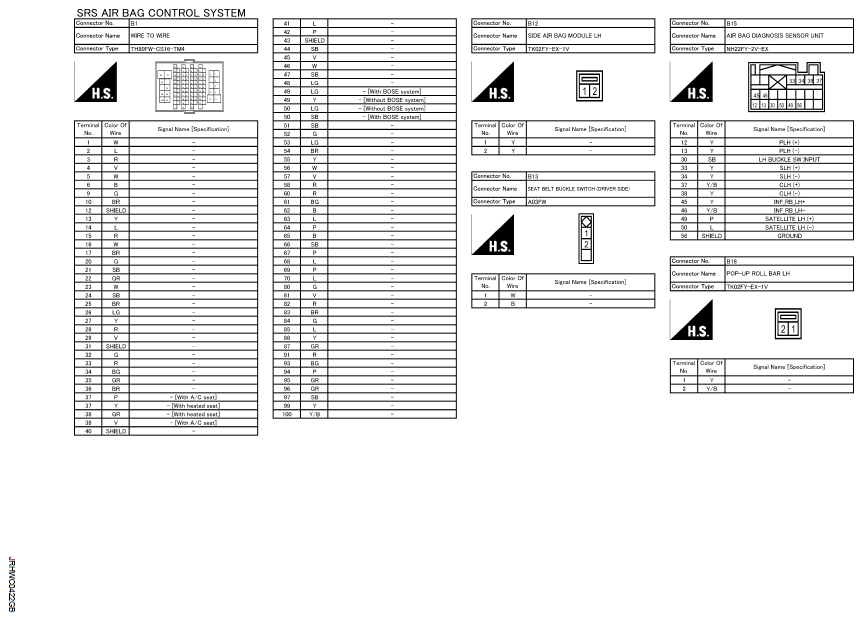

Fig 1: SRS Air Bag Control System Connector End View (1 Of 8)
G09463634Courtesy of NISSAN NORTH AMERICA, INC.

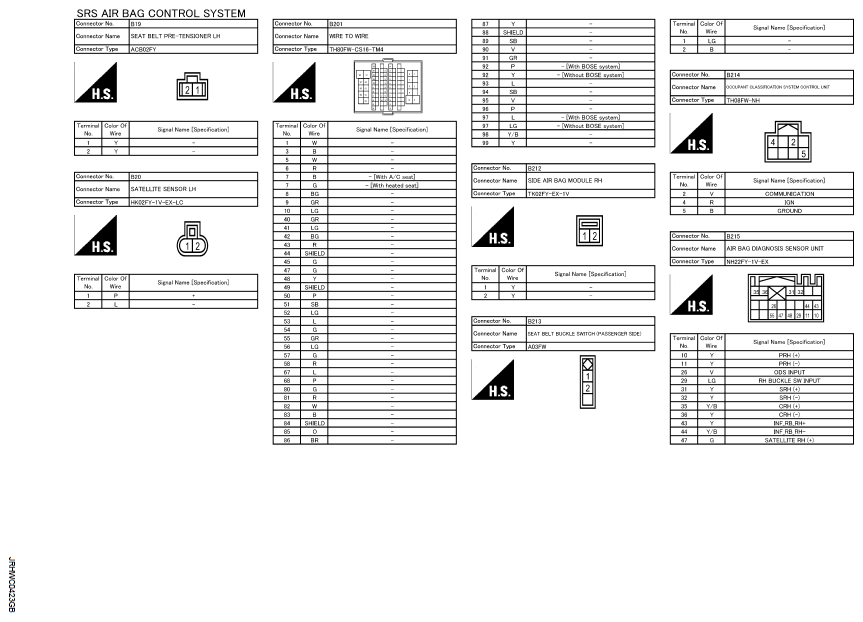

Fig 2: SRS Air Bag Control System Connector End View (2 Of 8)
G09463635Courtesy of NISSAN NORTH AMERICA, INC.

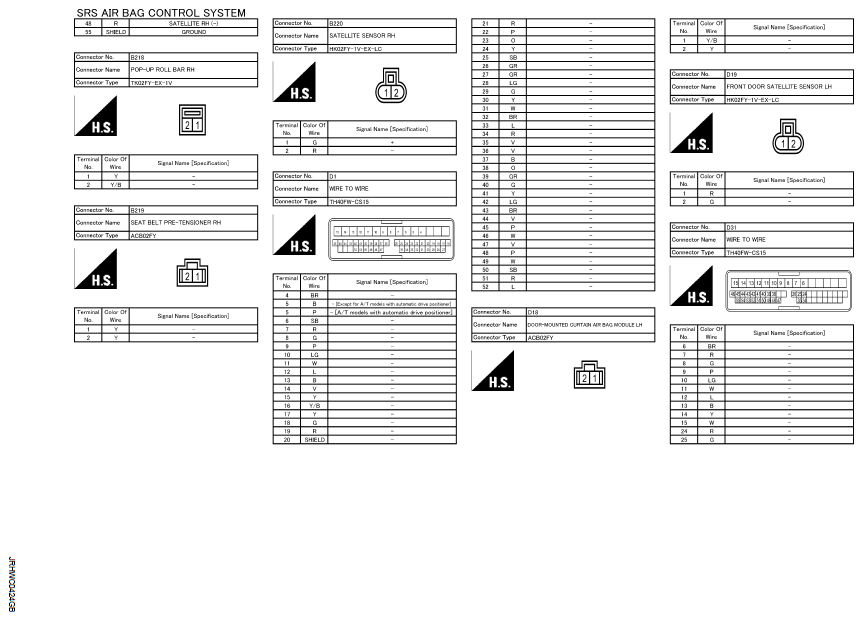

Fig 3: SRS Air Bag Control System Connector End View (3 Of 8)
G09463636Courtesy of NISSAN NORTH AMERICA, INC.

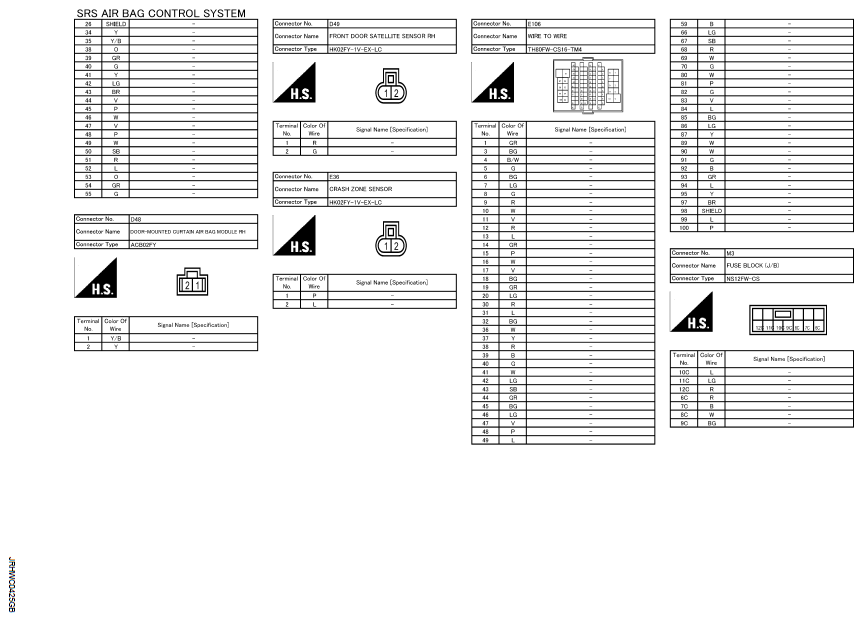

Fig 4: SRS Air Bag Control System Connector End View (4 Of 8)
G09463637Courtesy of NISSAN NORTH AMERICA, INC.

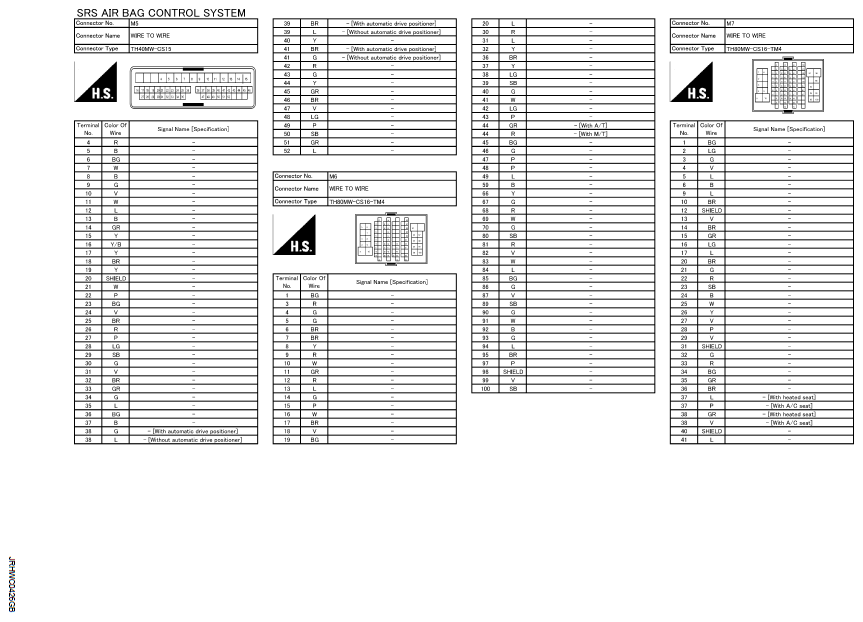

Fig 5: SRS Air Bag Control System Connector End View (5 Of 8)
G09463638Courtesy of NISSAN NORTH AMERICA, INC.

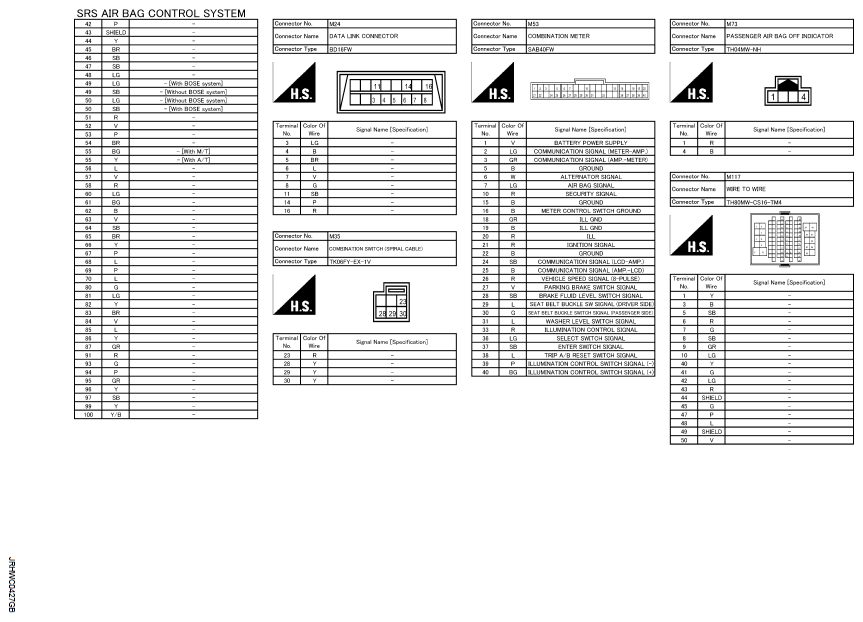

Fig 6: SRS Air Bag Control System Connector End View (6 Of 8)
G09463639Courtesy of NISSAN NORTH AMERICA, INC.

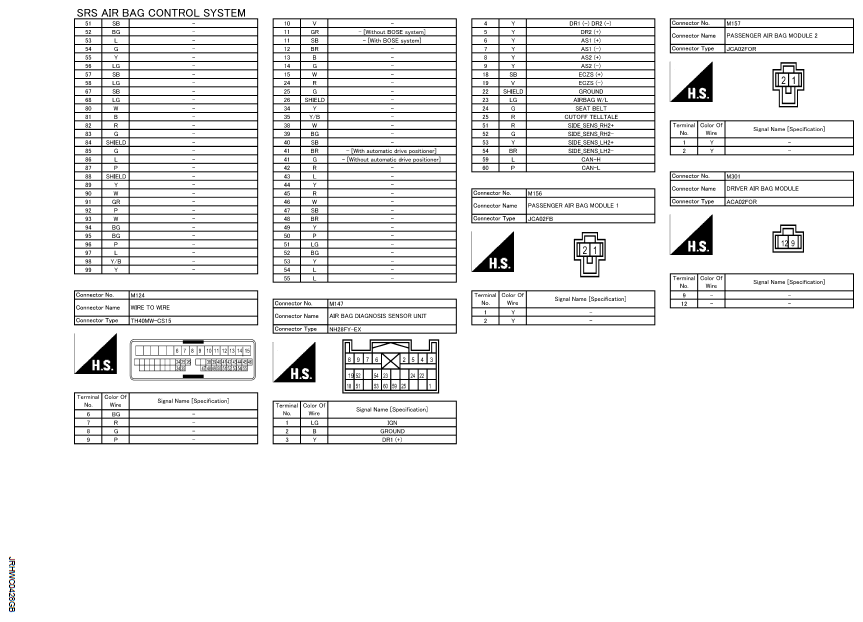

Fig 7: SRS Air Bag Control System Connector End View (7 Of 8)
G09463640Courtesy of NISSAN NORTH AMERICA, INC.

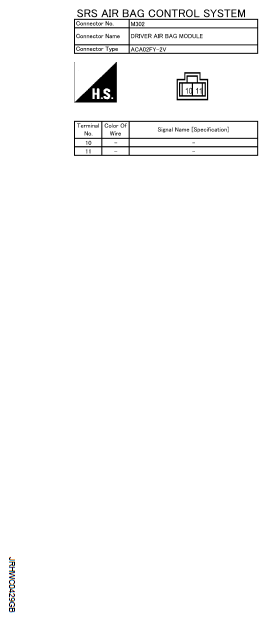

Fig 8: SRS Air Bag Control System Connector End View (8 Of 8)
G09463641Courtesy of NISSAN NORTH AMERICA, INC.
