DRIVE BELT: Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DRIVE BELT: Exploded View

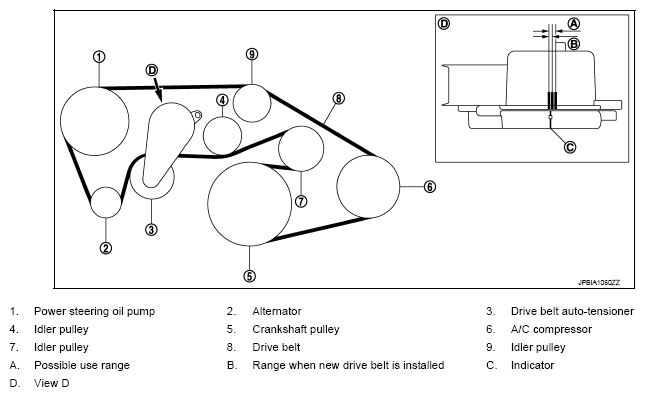

Fig 1: Exploded View Of Drive Belt With Routing
Courtesy of NISSAN NORTH AMERICA, INC.
