Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System (Convertible)
>>
DTC/Circuit Diagnosis
>>
Charging System
>>
Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector End Views

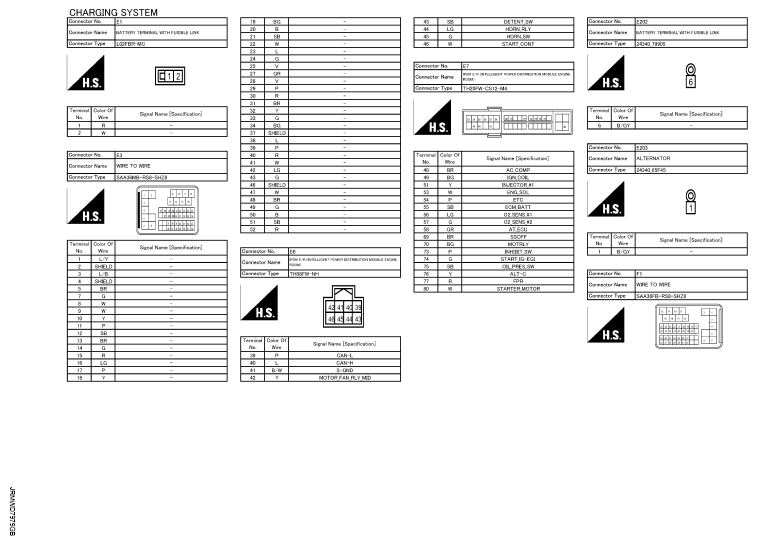

Fig 1: Charging System Connector End Views (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

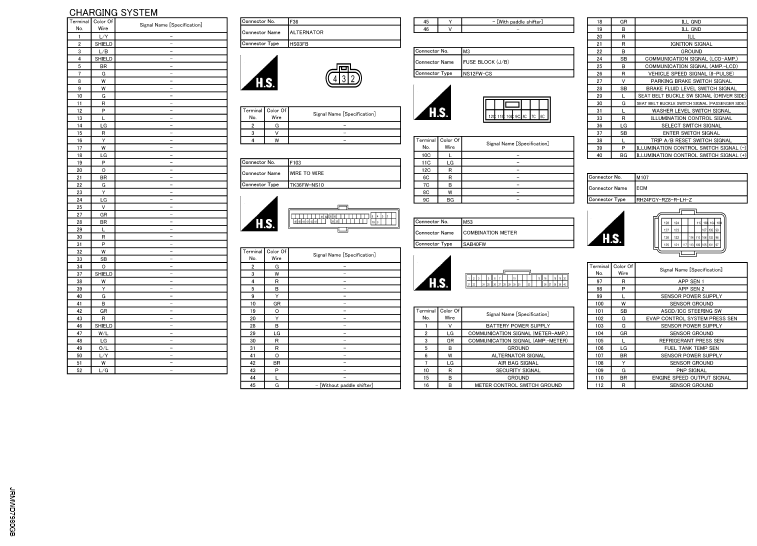

Fig 2: Charging System Connector End Views (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Charging System Connector End Views (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
