Component Parts Location

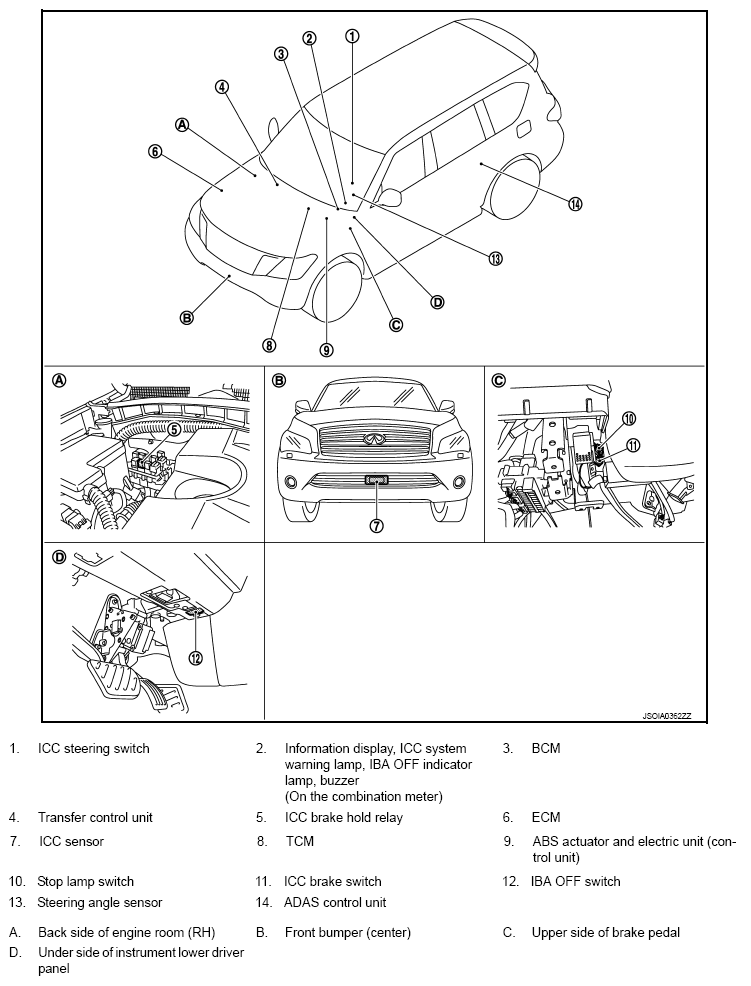

Fig 1: Identifying Brake Assist System Component Parts Location
G08877241Courtesy of NISSAN NORTH AMERICA, INC.
