VK56VD (AWD): Exploded View

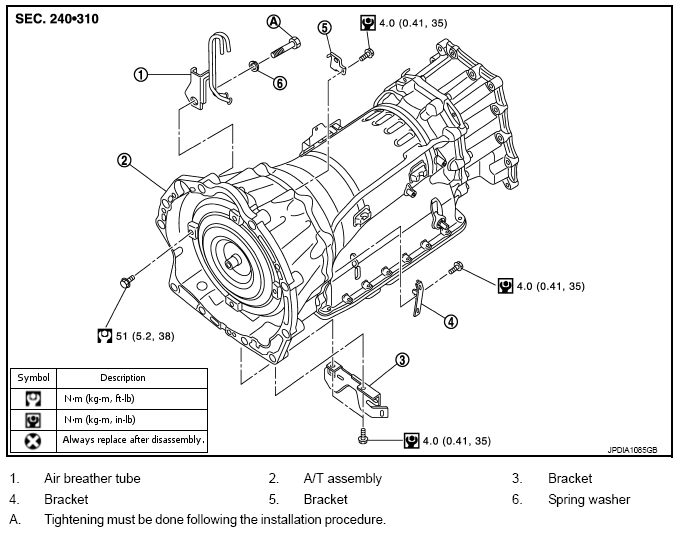

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (VK56VD) (AWD)
G08890892Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
