VK56VD: Exploded View: Disassembly

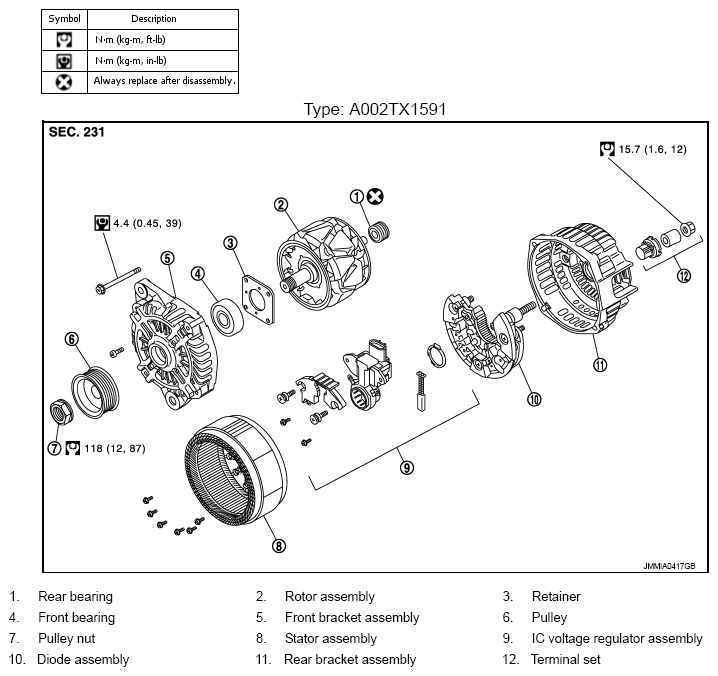

Fig 1: Disassembled View Of Alternator With Torque Specifications
G08898198Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
